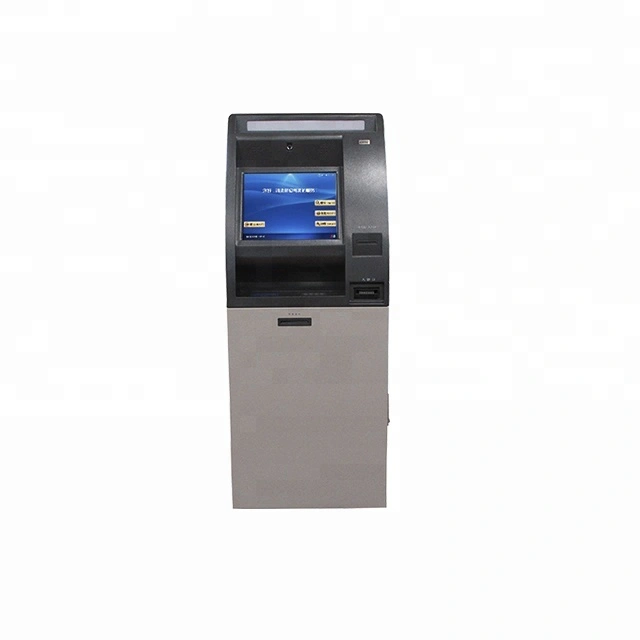

19" Customized LCD Payment System Kiosk With Card Reader
Hongzhou,ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing complete solution for self service Kiosks.
♦ We have a strong self-service terminal product’s development, software support and system integration capability, and offer customized solution according to client’s individual need.
♦ Equipped with a series of leading precision sheet metal and CNC machine tool equipment, and modern self- service terminal electronic assembly lines, our product are approved by CE, FDA,ROHS, FCC,CCC,IP65 etc.
♦ Our self-service terminal product and solution are designed and manufactured base on lean thinking, with vertical integrated batch production capacity, low-cost structure, and outstanding customer collaboration, we are good at quick response to customer's tailor-made requirement, providing customer with one-stop self- service terminal solution.
♦ Hongzhou high quality product and self-service terminal solution are popular both in the domestic and global markets in over 90 countries, cover financial self-service kiosk, payment kiosk, retail ordering kiosk,ticketing /card issuing kiosk, multi-media terminals, ATM/ADM/CDM, they are widely used in bank, and securities, traffic, shopping mall,hotel,retail, communications, medicine, cinema.
| No. | Components | Specification | |
| 1 | Computer Parts | PC host (can be customized) | Mainboard: Industrial motherboard, CPU: Intel 1037U |
| RAM: DDR3 1333 4GB; Hard Disk: 500GB, 7200R | |||
| RS-232 Ports, RJ45 interface, 2 cooling fan | |||
4 USB Ports, 10/100M Net Port,Greatwall power supply, cooling fans | |||
| Data Cable; Power Cable; Newtwork Cable | |||
| Integrated display card, Net Card, Sound Card | |||
| 2 | Monitor | 19.1 inch | New Grade A+ TFT LCD, 16: 9 |
| Brightness: 500cd/m2 | |||
| Contrast: 10000:1 Lifelong: more than 50 000 hours | |||
| Max(native). Resolution: 1280x1024 | |||
| Response Time: 8ms;VGA interface | |||
| 3 | Touch Panel | 19.1''infrared | Durability: Scratch-free, more than 60,000,000 touches without failure |
| anti-dust, anti-vandal | |||
Thickness: 3mm; Resolution: 4096×4096; Light Transmit: 95% | |||
| Surface Hardness: Mohs' hardness rating of 7 | |||
| Response Time: 5ms; Interface: USB | |||
| 4 | Enclosure | Durable 1.5mm cold rolled steel frame, powder coated steel | |
| Ergonomically sleek and smart design | |||
| Easy to install and operate with drawers | |||
| Internal fans for ventilation | |||
Left and right bi-channel; amplified output; Multimedia speaker | |||
| Moistureproof, Antirust, Anti-acid, Static free | |||
| 5 | Special device for Payment kiosk | Bill Acceptor | ITL NV09 banknote acceptor, 600 notes(Max)to hold. |
| Printer | Thermal printer, 80mm width paper to printer, with auto cutter | ||
| 6 | Operating System | Not including licensed operating system | |
| 7 | Production Time | 15~20 working days after deposite confirmed | |
| 8 | Packing | Safty Wooden case for exporting | |
| 9 | Warranty and MOQ | 1 Year, aftersale online service forever. MOQ: 1 piece | |
| 10 | Payment Terms | 50% Deposit, 50% balance T/T before shipment. | |
Q1: Are you manufacturer?
A1: Yes, we're manufacturer and OEM & ODM is accepted.
Q2: What's your MOQ?
A2: One sample is available.
Q3: What's the lead time?
A3: 7~45 days
Q4: What's your guarantee for the kiosk?
A4: 1 year guarantee from the shipping date.
Q5: What is your payment methods ?
A5: T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
Q6: What is transportation way?
A6: By sea,by air, by courier
Q7: What is your trading terms?
A7: EXW, FOB,CIF is our common trading terms
