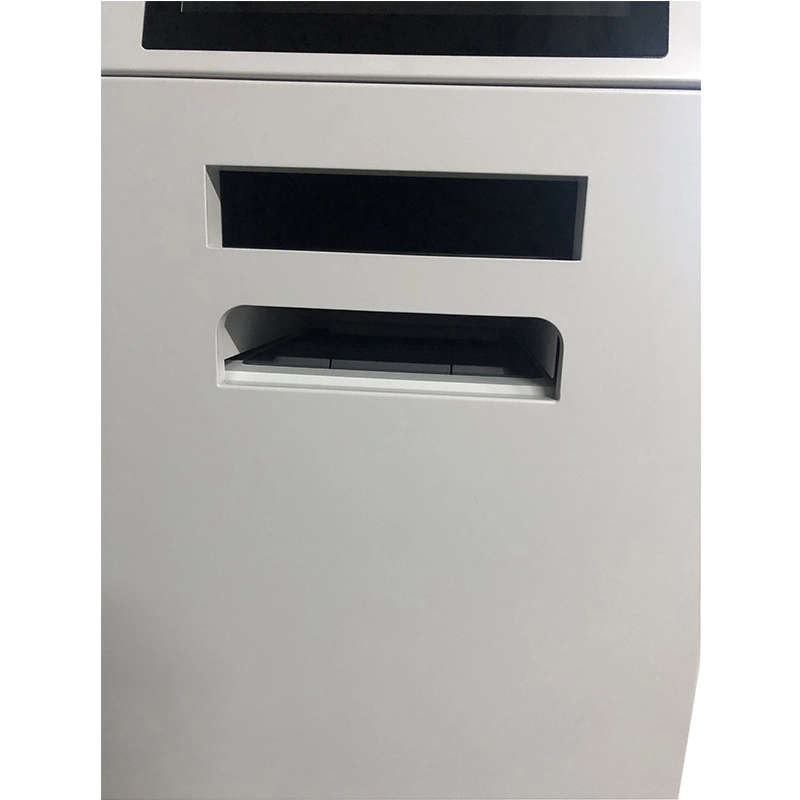

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner

    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    21.5 Inch Self Service Document Ticket Kiosk And Photo Printing Kiosk With A4 Document Scanner
    Inquire Online
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Customized
    Product Name::
    print kiosk
    Optional parts:
    Barcode Reader
    Touch Screen size:
    21.5 inch
    Operation System::
    Windows 10
    Installation:
    Free Standing
    Service::
    OEM/ODM
    Supply Ability
    Supply Ability:
    10000 Unit/Units per Month
    Product Description
    Components
    Brand / Model
    Main Specifications





    Industrial PC System





    Industrial PC
    Mother Board
    Intel H81; Integrated Network card and Graphic card
    CPU
    i5 4460
    RAM
    4G
    SSD
    120G
    Interface
    14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
    PC Power Supply
    GW-FLX300M 300W
    Operation System
    Windows 10 (without license)








    Display+Touch screen








    21.5"
    Screen Size
    21.5 inch
    Pixel Number
    1920*1080
    Pixel pitch
    250cd/m²
    Contrast
    1000∶1
    Display Colors
    16.7M
    Viewing Angle
    89°/89°/89°/89°
    LED Life Time
    Min. 30000hrs
    Touch point number
    10 point
    Input mode
    Finger or capacitor pen
    Surface hardness
    ≥6H



    Document Scanner



    Q800L
    Document size
    A4, A3
    Pixels
    8 million (3264*2448)
    Output format
    YUV, MJPG
    Amount of distortion
    <1%
    Whiter balance
    Auto




    A4 Size printer




    HP M405d
    Printer Method
    Laser printer
    Resolution
    4800 x 600 dpi
    Print speed
    38 pages per minute
    page box
    250 pages
    Power
    AC 220-240V(±10％)，50/60Hz(±2Hz),2A




    Camera




    XH3519-3238-LED
    Sensor type
    1/2.7"CMOS
    Array size
    1928*1088
    Pixel
    3.0um*3.0um
    Maximum image transfer rate
    1080P 30FPS
    AGC/AEC/Whiter balance
    Auto

    Power Supply

    LRS-150-12
    AC input voltage range
    100‐240VAC
    DC output voltage
    12V
    Power Transformer
    SHJZ 500VA
    parameter
    110V to 220V 500VA
    Speaker
    HZ
    Dual channel amplified speakers for Stereo , 8Ω 5W.
    Product Features


    Although kiosk printers are starting to play a smaller role in the kiosk world, in part, thanks to the increased use of smartphones, they're still valuable to a variety of kiosk deployments.
    that kiosk designs are smaller than ever, so the newest printers are also designed with a smaller footprint to accommodate these tighter form factor requirements.
    Flexibility: The wide variety of kiosk applications available today require printers with different options and features.

    Optional Modules
    1.Bluetooth connection .
    2.Barcode reader:1D or 2D barcode reader
    3.Fingerprint scanner
    4.Printer:Epson 80MM thermal printer with auto cutter or HP A4 size laser printer.
    5.Card reader: IC card reader/magnetic card reader/rfid card reader ,etc.
    6.Metal keybaord with trackball,stainless steel,waterproof,encrypted
    7.Cash acceptor:InchCashcodeInch branded,with RS232 interface, DC12V power,accepts multi-currency
    8.Coin acceptor:accepts mul-currency coins
    9.Camera
    Application
    * Gaming
    * Parking
    * Healthcare
    * Transit
    * Airline
    Details Images
    Related Products
    Packing&Shipping
    Company Introduction
    Hongzhou, ISO9001:2015 certified HI-Tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing complete solution for self service Kiosks. Hongzhou equipped with a series of leading precision sheet metal and CNC machine tool equipment , and modern self-service terminal electronic assembly lines. Our products cover financial self-service kiosk, payment kiosk, retail ordering kiosk, ticketing / card issuing kiosk, multi-media terminals, ATM/ADM/CDM. They are widely used in bank, securities, traffic, shopping mall, hotel, retail, communications, medicine & cinema etc.
    It is significant in improving people's feet health. It enables the feet to ventilation and regulates inside temperature, aiming to create a healthy and clean feet environment. With a bright high-resolution screen, it delivers a highly responsive, and complete self-service. The product improves the efficiency of heat and moisture exchange between the user and the shoe environment and thus creating a breathable and clean feet environment. With a bright high-resolution screen, it delivers a highly responsive, and complete self-service.
