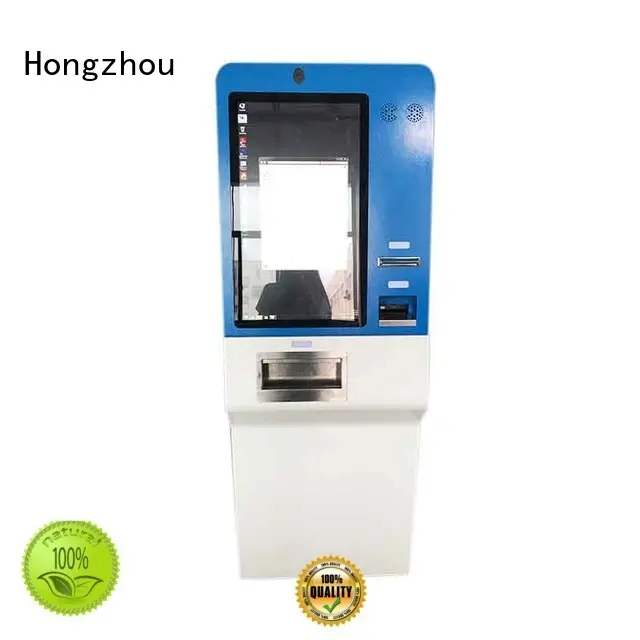

Product information
| No. | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel G3250 | |||
| RAM | 4GB | |||
| HDD | 1000G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | HUNTKEY | |||
| 2 | Operation System | Windows 7 （without license） | ||
| 3 | Display+Touch screen | 27" | Screen Size | 27 inch |
| Pixel Number | 1920*1080 | |||
| Brightness | 300cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 89°/89°/85°/85° | |||
| Touch point number | 10 point | |||
| Input mode | Finger or capacitor pen | |||
| Surface hardness | ≥6H | |||
| 4 | Cash Accepter | SC Advance | Cashbox box capacity | 1200 notes |
| Note Dimensions | Width: 60 - 83 mm Length: 120 - 177 mm | |||
| Note Acceptance Speed | 2.3 seconds | |||
| Acceptance Rate | 98% or higher | |||
| 5 | Cash dispenser | MMR050 | Note | use the change function |
| Speed | 5 sheets/sec | |||
| Number of box | 4 box | |||
| Banknote box capacity | 3000 sheets for each box | |||
| Maximum number of transactions | 50 sheets | |||
| 6 | Coin dispenser | MK4*2 | Coin dimensions | diameter 16–31mm (0.63”–1.22”) |
| Thickness 1.00–3.50mm (0.039” –0.138”) | ||||
| Coin Capacity | 1,120 x 1, 950 x £1, 1,600 x US 25¢ | |||
| Coin Payout Rate | Three coins per second | |||
| Voltage | 24V | |||
| 7 | Printer | MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 8 | Camera | ZHB3-A4 | Sensor type | 1/2.7"CMOS |
| Array size | 1928*1088 | |||
| Pixel | 3.0um*3.0um | |||
| Maximum image transfer rate | 1080P 30FPS | |||
| AGC/AEC/Whiter balance | Auto | |||
| 9 | Camera for cash acceptor and dispenser | HDE3120CHP4 | CCD | 1/3" SONY CCD |
| 700TV | ||||
| 10 | Power Supply | LRS-150-24 | AC input voltage range | 100‐240VAC |
| DC output voltage | 24V | |||
| LRS-150-24 | Output over current protection | 110~130% | ||
| LRS-150-12 | Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) | ||
| LRS-150-12 | AC input voltage range | 100‐240VAC | ||
| DC output voltage | 12V | |||
| 11 | LED lamp control module | HY-LED01 | Provide 8-way 5V dual-color lamp output 4-way 12V output | |
| 12 | Speaker | kinter | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 13 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 14 | Accessories | Security Loc ,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 15 | Assembling and testing | |||
| 16 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating;
※ Ergonomically and compact structure, user friendly, easy for maintenance;
※ Anti-vandalism, dust-proof, high safety performance;
※ Rugged steel frame and overtime running, high precision, high stability & reliability;
※ Cost-effective, customer-oriented design, the applicable environmental.
