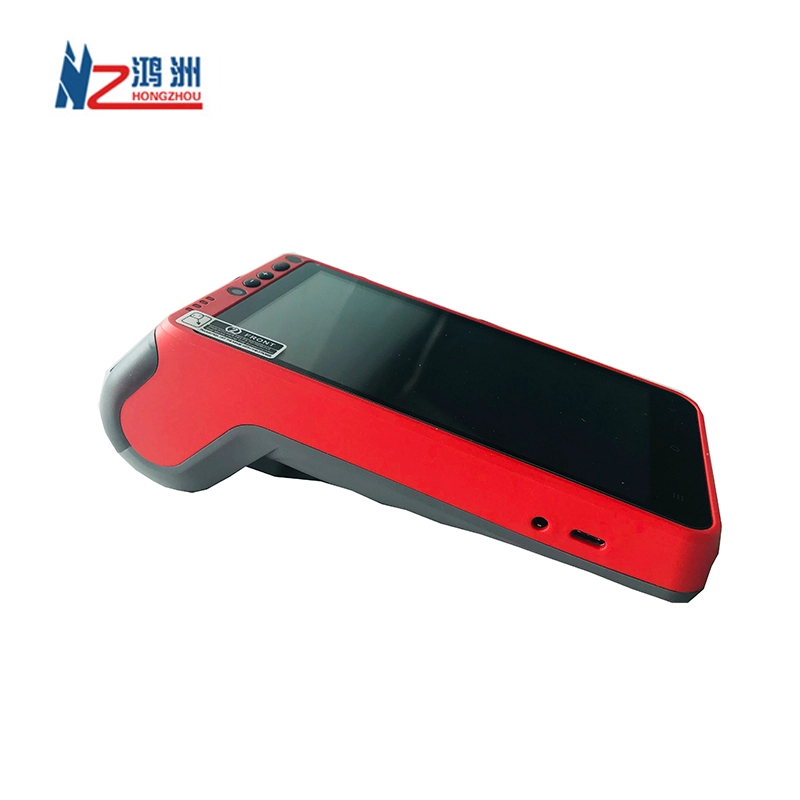

3G/4G/WIFI 5.5 Inch Touch Screen Handheld Smart POS Terminal HZ-CS10
3G/4G/WIFI 5.5 Inch Touch Screen Handheld Smart POS Terminal HZ-CS10
Related Products
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CS10
After-sales Service Provided:
Video technical support
Warranty:
1 Year
Operation System:
Android 7.0
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
8GB ROM+1G RAM
Product Name:
3G/4G/WIFI 5.5 Inch Touch Screen Handheld Smart POS Terminal HZ-CS10
OS:
Safedroid OS (based on Android 7.0 or 5.1)
Memory:
8GB ROM+1G RAM( Support Memory expansion )
Interface:
Type C USB Port ,5V DC,2A
Communication:
4G/3G/2G/WIFI/Bluetooth
Certification:
CE FCC ROHS EMV PCI
Application:
Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel etc.
Color:
Black/Red/Gray
WIFI:
Inbulit Wifi Module
Card Reader:
MSR+Chip+Contactless
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Video Description

3G/4G/WIFI 5.5 Inch Touch Screen Handheld Smart POS Terminal HZ-CS10

Product Description
Specifications
BasicOSSafedroid OS (based on Android 7.0)
CharacteristicsCPUQuad-Core 1.35GHZ
ROM8GB ROM EMMC
RAM1G RAM LPDDR3
Display5.5 inch TFT IPS LCD,resolution 1280*720
PanelUltra sensitive capacitive touch screen,
can work with gloves and wet fingers
Dimensions206mm*84mm*32mm
Weight560g(Battery included)
Keys3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
3 Virtual keys:Menu,Home,Back
Input

Chinese/English ,and supports handwriting and soft

k

eyboard

Radio CommunicationWIFIIEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
BluetoothBT 4.0 LE +EDR
4GTD-LTE:Band38, Band39, Band40, Band41
FDD-LTE:Band1,Band3,Band7,Band8,Band20
3GUMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
CDMA EV-DO Rev.A:800MHZ
TD-SCDMA:Band34,Band39
2GGSM/GPRS/EDGE:850/900/1800/1900MHZ
PaymentMagcard readerSupports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card readerSupports ISO7816 standard
Contactless Card readerSupports 14443A / 14443B
Expansion and peripheralsPrinterHigh-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll
Camera5MP camera with LED flash and auto-focus function
Satellite PositioningGPS, GLONASS, Bei-Dou satellite navigation system,
Supports A-GPS
AudioSpeaker ,Microphone,Earphone
InterfacesMicro SD Card Slot1 PCS
SIM Card Slot2 PCS MICRO SIM
PSAM Card Slot2 PCS Conforms to ISO7816 standard
USB Port1PCS TYPE C USB
PowerBatteryLi-ion battery ,7.2V /2600mAH
Charging PortType C USB Port ,5V DC,2A
EnvironmentOperating Temperature-10°C to 50°C
Storage Temperature-20°C to 70°C
Humidity5% to 95% Relative Humidity, Non-Condensing
CertificationElectromagneticCE,ROHS
OptionalFingerprintSemiconductor capacitance
14.4mm x 10.4mm imaging area
208 x 288 pixel array,
Crossmatch FBI certified
Authentec,508dpi
Front camera2 Megapixel Fixed Focal Camera
Barcode ScannerHoneywell 2D Image Engine,
Support 1D and 2D symbologies
Fiscal ModuleRussian format

Fashionable Appearance And Unique Design

5.5 inch TFT IPS LCD

High resolution 1280*720

Ultra sensitive capacitive touch screen

Can work with gloves and wet fingers



Excellent Processer & Performance

Safedroid SO(based on Android 7.0)

Quad-Core 1.35GHZ

1G RAM LPDDR3 + 8GB ROM EMMC



Long Endurance Power Supply

14days locked stand-by     24 Hours continuous work

Li battery 7.2V/2600mAh

Type C USB Port 5V DC,2A

Company Information

Smart & Reliable POS Terminal Solution-Supported by Hongzhou Group



Shenzhen Hongzhou Group was founded in 2005,ISO9001 2015 certified and China National Hi-tech enterprise.We are leading global self-service Kiosk,POS terminal manufacturer and solutions provider.



HZ-CS10 is the cutting-edge secure electronic payment terminal powered by Hongzhou Group,with safe-Android 7.0 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various Barcode Scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.



Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.



HZ-CS10 is widely used in Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel,Hospital,SPA,Cinema, Entertainment, Tourism.

Detailed Images

Functions

Applications

Packaging & Shipping

Payment

FAQ
Q1: What POS We provide?
A1: For financial/Commerce POS system, Wireless Handheld Cashless POS,
Android POS,2G/3G/GPS/GPRS/Wi-Fi/Bluetooth POS, but NO Desktop Cash POS.
Q2: Does your company accept custom-made items?
A2: Yes, we can.We are a professional solution supplier for financial security & payment industry,
we provide diffierent solutions and products for diffierent customers.
Q3: How is Our POS's Quality?
A3:EMV Level 1&2,PCI 3.0 & 4.0, CE/RoHS/PBOC 2.0/China UnionPay,CCC,and Network Access License
and 100% test before shipment;
Q4: How About Your Shipping of POS?
A4: Delicate box with foam inside and shipping by air or by sea.
Q5: How Long is Your Lead Time?
A5: Within 1 for sample and within 45 days for 500 to 5000 units after confirm payment.
Q6. How About Your POS Price?
A6: The more orders, the lower price.
Q7: How to Pay for our POS terminal?
A7: Payment: 50% pre-payment, the rest of 50% is honored before shippment by T/T and 100% T/T for a sample.
Hongzhou Smart Tech Co.,Ltd's customer service will carefully listening and attending to customers’ needs. It makes it easy to automate guest services and keep demand serviced efficiently. Seldom do we receive complaints about quality of kiosk machine. It makes it easy to automate guest services and keep demand serviced efficiently.
