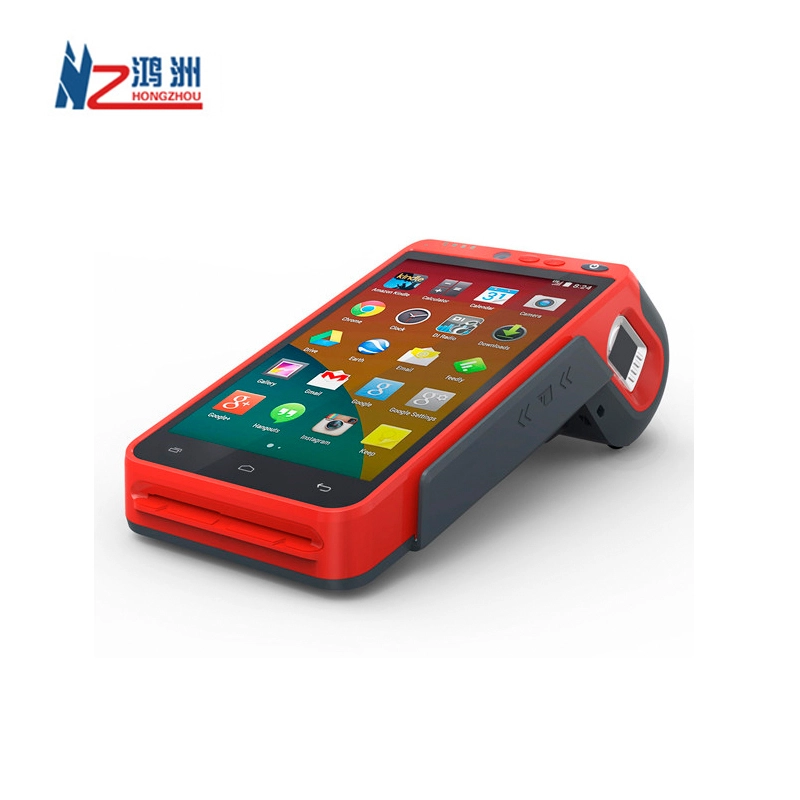

5.5 inch Android Smart Mobile POS System with Fingerprint
5.5 inch Android Smart Mobile POS System with Fingerprint
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CS10
After-sales Service Provided:
Video technical support
Warranty:
1 Year
Operation System:
Android 7.0
CPU:
Quad-Core 1.35GHZ
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
8GB ROM+1G RAM
Product Name:
5.5 inch Android Smart Mobile POS System with Fingerprint
OS:
Safedroid OS (based on Android 7.0 or 5.1)
Display:
5.5 inch TFT IPS LCD(1280*720)
Certification:
CE FCC ROHS EMV PCI
Application:
Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel etc.
Communication:
4G/3G/2G/WIFI/Bluetooth
Interface:
Type C USB Port ,5V DC,2A
Color:
Red/Grey
Material:
ABS Shell
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Video Description

5.5 inch Android Smart Mobile POS System with Fingerprint

Ø Safedroid OS, Based on Android 7.0 or 5.1 OS;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø  Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø  One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified

Product Description
Specifications
BasicOSSafedroid OS (based on Android 7.0 or 5.1)
CharacteristicsCPUQuad-Core 1.35GHZ
ROM8GB ROM EMMC
RAM1G RAM LPDDR3
Display5.5 inch TFT IPS LCD,resolution 1280*720
Panel

Ultra sensitive capacitive touch screen,

can work with gloves and wet fingers

Dimensions206mm*84mm*32mm
Weight560g(Battery included)
Keys3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
3 Virtual keys:Menu,Home,Back
Input

Chinese/English,

and supports handwriting and soft keyboard

Radio CommunicationWIFIIEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ
BluetoothBT 4.0 LE +EDR
4GTD-LTE:Band38, Band39, Band40, Band41
FDD-LTE:Band1,Band3,Band7,Band8,Band20
3GUMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
CDMA EV-DO Rev.A:800MHZ
TD-SCDMA:Band34,Band39
2GGSM/GPRS/EDGE:850/900/1800/1900MHZ
PaymentMagcard readerSupports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card readerSupports ISO7816 standard
Contactless Card readerSupports 14443A / 14443B
Expansion and peripheralsPrinterHigh-Speed Thermal Printer ;
58mm printing paper ;
40mm paper roll
Camera5MP camera with LED flash and auto-focus function
Satellite Positioning

GPS, GLONASS, Bei-Dou satellite navigation system,

Supports A-GPS

AudioSpeaker ,Microphone,Earphone
InterfacesMicro SD Card Slot1 PCS
SIM Card Slot2 PCS MICRO SIM
PSAM Card Slot2 PCS Conforms to ISO7816 standard
USB Port1PCS TYPE C USB
PowerBatteryLi-ion battery ,7.2V /2600mAH
Charging PortType C USB Port ,5V DC,2A
EnvironmentOperating Temperature-10°C to 50°C
Storage Temperature-20°C to 70°C
Humidity5% to 95% Relative Humidity, Non-Condensing
CertificationElectromagneticCE,ROHS
OptionalFingerprintSemiconductor capacitance
14.4mm x 10.4mm imaging area
208 x 288 pixel array,
Crossmatch FBI certified
Authentec,508dpi
Front camera2 Megapixel Fixed Focal Camera
Barcode Scanner

Honeywell 2D Image Engine,

Support 1D and 2D symbologies

Fiscal ModuleRussian format
Company Information

Smart & Reliable POS Terminal Solution-Supported by Hongzhou Group



Shenzhen Hongzhou Group was founded in 2005,ISO9001 2015 certified and China National Hi-tech enterprise.We are leading global self-service Kiosk,POS terminal manufacturer and solutions provider. HZ-CS10 is the cutting-edge secure electronic payment terminal powered by Hongzhou Group,with safe-Android 7.0 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various Barcode Scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.



Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.



HZ-CS10 is widely used in Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel,Hospital,SPA,Cinema, Entertainment,Tourism.

Detailed Images

Production Flow

Certifications

FAQ
Q1: What POS We provide?
A1: For financial/Commerce POS system, Wireless Handheld Cashless POS,
Android POS,2G/3G/GPS/GPRS/Wi-Fi/Bluetooth POS, but NO Desktop Cash POS.
Q2: Does your company accept custom-made items?
A2: Yes, we can.We are a professional solution supplier for financial security & payment industry,
we provide diffierent solutions and products for diffierent customers.
Q3: How is Our POS's Quality?
A3:EMV Level 1&2,PCI 3.0 & 4.0, CE/RoHS/PBOC 2.0/China UnionPay,CCC,and Network Access License
and 100% test before shipment;
Q4: How About Your Shipping of POS?
A4: Delicate box with foam inside and shipping by air or by sea.
Q5: How Long is Your Lead Time?
A5: Within 1 for sample and within 45 days for 500 to 5000 units after confirm payment.
Q6. How About Your POS Price?
A6: The more orders, the lower price.
Q7: How to Pay for our POS terminal?
A7: Payment: 50% pre-payment, the rest of 50% is honored before shippment by T/T and 100% T/T for a sample.
