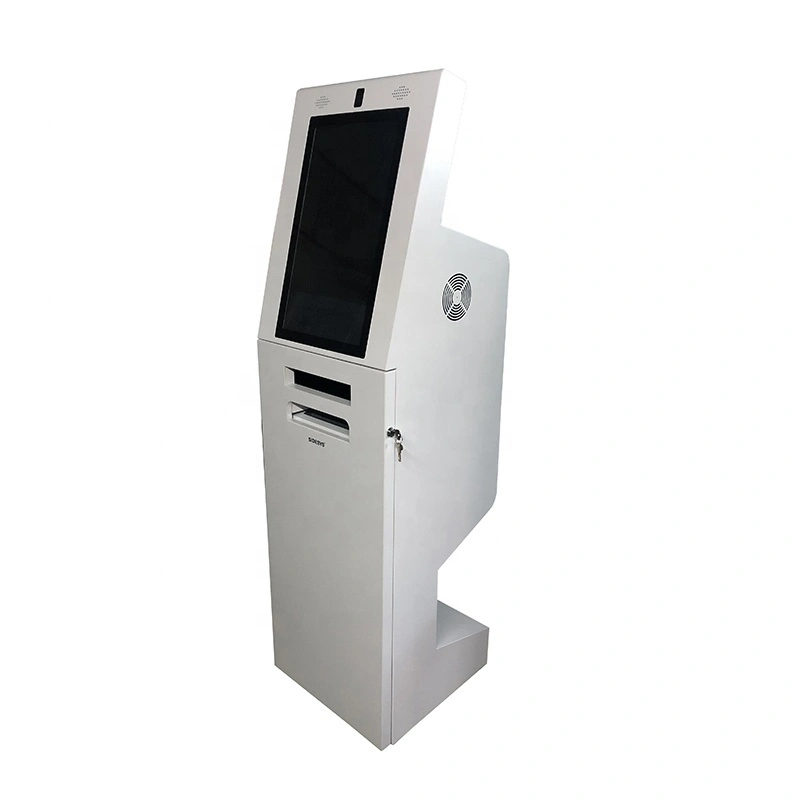

A4 Scanner Kiosk with Payment System
A4 Scanner Kiosk with Payment System
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Product name:
A4 Scanner Kiosk with Payment System
Touch screen type:
Capacitive Screen
Optional parts:
Customer's Request
Power supply:
Public place
Dispatch way:
By sea, by air
1 Year
Supply Ability
Supply Ability:
100 Unit/Units per Month
Video Description

 A4 Scanner Kiosk with Payment System


Product Description
No. Components Main Specifications
1 Industrial PC System Mother Board Intel H81; Integrated Network card and Graphic card
CPU Intel G3250
HDD 1000G
Interface 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power Supply HUNTKEY
2 Operation System Windows 7 (without license)
3 Display+Touch screen Screen Size 27 inch
Pixel Number 1920*1080
Brightness 300cd/m2
Contrast 1000:1
Display Colors 16.7M
Viewing Angle 89°/89°/85°/85°
Touch point number 10 point
Input mode Finger or capacitor pen
Surface hardness ≥6H
4 Cash Accepter Cashbox box capacity 1200 notes
Note Dimensions Width:60-83 mm   Length:120-177 mm
Note Acceptance Speed 2.3 seconds
Acceptance Rate 98% or higher
5 Cash dispenser Note use the change function
Speed 5 sheets/sec
Number of box 4 box
Banknote box capacity 3000 sheets for each box
Maximum number of transactions 50 sheets
6 Coin dispenser Coin dimensions diameter 16-31mm (0.63”-1.22”)
  Thickness 1.00-3.50mm (0.039” -0.138”)
Coin Capacity 1,120 x 1, 950 x £1, 1,600 x US 25¢
Coin Payout Rate Three coins per second
Voltage 24V
7 Printer Printer Method Thermal printing
Print width 80mm
Speed 250mm/sec(Max)
Resolution 203dpi
Print length 100KM
Autocutter included
8 Camera Sensor type  1/2.7"CMOS
Array size 1928*1088
Pixel 3.0um*3.0um
Maximum image transfer rate 1080P 30FPS
AGC/AEC/Whiter balance Auto
9 Camera for cash acceptor
and dispenser
10 Power Supply AC input voltage range 100-240VAC
DC output voltage 24V
Output over current protection 110~130%
Operating temp. & humidity -10~+50,20%~90%RH (noncondensing)
AC input voltage range 100-240VAC
DC output voltage 12V
11 LED lamp control module Provide 8-way 5V dual-color lamp output 4-way 12V output
12 Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
13 KIOSK Cabinet Dimention decided when finish production
Color Optional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
3.Color and LOGO  are upon customers' requests.
Detailed Images

The product helps remove molecular compounds from tap water allows people to drink cleaner, tastier and fresher water than tap water. Supplied by uninterruptable power, the product won't shut down suddenly. One of our customers said that this product helps reduce requirements for labor due to low maintenance and easy control. Supplied by uninterruptable power, the product won't shut down suddenly.
