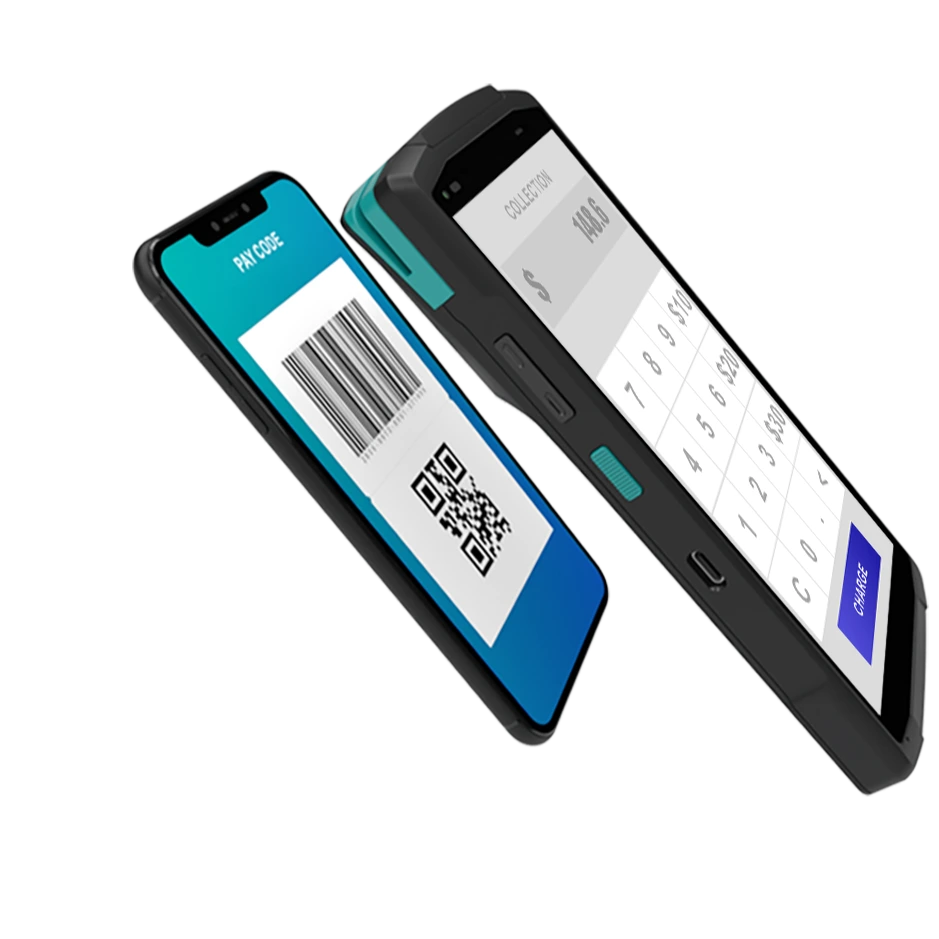

All In One Android Pos Terminal Cash Register
All In One Android Pos Terminal Cash Register
Highlights
- Qualcomm Octa-Core ARM Cortex-A53 1.8GHz;
- Safedroid OS (based on Android 10.0);
- Massive memory: 2G RAM + 16G ROM;
- 5.7 inch TFT IPS LCD, resolution 1440*720;
- Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
- Dual camera for quickly QR code scan & Symbol 2D scanner as option;
- The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;
- One-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
- NFC for full scenarios such as transportation, logistic, and ID control.
Shenzhen Hongzhou Group was founded in 2005,we focus on innovation in smart technology and applications.our product are covering interactive kiosk, smart Payment POS, intelligent ice machines and medical beauty products.
Over 15000m²production shop,our manufacture facility are ISO9001,ISO13485,IATF16949 certified and UL approved,Equipped with precision sheet metal fabrication,CNC machining,PCBA(SMT&DIP),Wire Harness,and assembly production lines,we are also a professional manufacturer who are focusing on high quality precision sheet metal fabrication, PCBA&EMS,wire harness and mechanical components,and assembling OEM services.
With vertical integrated batch production capability, low-cost structure, outstanding project operation and customer collaboration ability,we are good at giving quick response to customer‘s requirement for customized project and providing one stop Turnkey Contract Manufacturing solution in house.
Our product and solution are widely used in self service terminals& smart payment,smart home,industry and automation,new energy, medical device, electron and communication systems.
| Specifications | ||
| Basic Characteristics | OS | Safedroid OS (based on Android 10.0) |
| CPU | Qualcomm Octa-Core ARM Cortex-A53 1.8GHz | |
| ROM | 16GB ROM EMMC | |
| RAM | 2G RAM LPDDR3 | |
| Display | 5.7 inch TFT IPS LCD, resolution 720*1440 | |
| Panel |
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers |
|
| Dimensions | 163mmX77mmX17.5mm (max 21.8mm) | |
| Weight | 300g (Battery included) | |
| Keys | Physical keys: power on/off, Volume + /-, Scan1/ Scan2 | |
| Input | Chinese/English, and supports handwriting and soft keyboard | |
| Radio Communication | WIFI |
IEEE 802.11 b/g/n and a/c,support dual Band 2.4GHZ and 5GHZ |
| Bluetooth | BT 4.2 LE and earlier | |
| 4G | European version(Default): | |
| FDD-LTE: B1/B3/B5/B7/B8/B20 | ||
| TDD-LTE: B38/B39/B40/B41 | ||
| American version(Optional): | ||
| FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26 | ||
| TDD-LTE: B41 | ||
| 3G | European version(Default): | |
| WCDMA: B1/B2/B5/B8 | ||
| TD-SCDMA: B34/B39, | ||
| CDMA 1x/EVDO: BC0 | ||
| American version(Optional): | ||
| WCDMA: B2/B4/B5, | ||
| CDMA 1X/EVDO: BC1 | ||
| 2G | GSM/GPRS/EDGE: 850/900/1800/1900MHZ | |
| Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple |
| track (tracks 1/2/3), bi-directional | ||
| Smart Card reader | Supports ISO7816 standard | |
| Contactless Card reader | Supports 14443A/ 14443B | |
| Camera | 5MP camera with LED flash and auto-focus function | |
| Satellite Positioning | Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo | |
| NFC | 13.56MHZ | |
| Audio | Speaker, Microphone, | |
| Interfaces | Micro SD Card Slot | 1 PCS support up to 128GB |
| SIM Card Slot | 1 PCS MICRO SIM | |
| PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
| USB Port | 1PCS TYPE C USB | |
| Power | Battery | Li-ion battery, 4.35V/3500mAH |
| Charging Port | Type C USB Port, 5V DC/2A | |
| Environment | Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C | |
| Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| Certification | Electromagnetic | CE, Rohs, FCC, BIS, TQM |
| Payment | PCI PTS 5.X, EMV L1&L2, Paypass, Paywave, Amex | |
| Optional | Fingerprint | (Extended support on the charging cradle) |
| Printer |
High-Speed Thermal Printer(Extended support on the charging cradle) |
|
| ESIM Card | support | |
| Front camera | 2 Megapixel Fixed Focal Camera | |
| Barcode Scanner |
Symbol 4710 2D Image Engine, Support 1D and 2D symbologies |
|
1.Quick Response and quickly action, your inquiry will be replied in 24 hours.
2.Competitive price directly from in housing plant.
3.High quality due to first-hand control in factory.
4.OEM/ODM:custom fabrication according to your drawings or samples.
5.Flexibility: small orders are acceptable for quick delivery and help you reduce the stock cost.
6.Quick delivery and overseas Kanban warehouse service. We have overseas warehouses located in Hongkong and London to support overseas clients.
1. Are you manufacturer?
Yes, we are manufacturers.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept T/T payment (Escrow Service from Alibaba) and so on.
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment.
For quantity, the leading time will be 1-4 weeks depend on exact quantity.
8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.
9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
