Hongzhou Smart - 15+ Years Leading OEM & ODM

kiosk turnkey solution manufacturer

Android 10.0 Handheld POS Terminal with Barcode Scanner 1
Android 10.0 Handheld POS Terminal with Barcode Scanner 2
Android 10.0 Handheld POS Terminal with Barcode Scanner 3
Android 10.0 Handheld POS Terminal with Barcode Scanner 4
Android 10.0 Handheld POS Terminal with Barcode Scanner 5
Android 10.0 Handheld POS Terminal with Barcode Scanner 6
Android 10.0 Handheld POS Terminal with Barcode Scanner 1
Android 10.0 Handheld POS Terminal with Barcode Scanner 2
Android 10.0 Handheld POS Terminal with Barcode Scanner 3
Android 10.0 Handheld POS Terminal with Barcode Scanner 4
Android 10.0 Handheld POS Terminal with Barcode Scanner 5
Android 10.0 Handheld POS Terminal with Barcode Scanner 6

Android 10.0 Handheld POS Terminal with Barcode Scanner

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    CS20
    After-sales Service Provided:
    Video technical support
    Warranty:
    1 Year
    Operation System:
    Android 10.0
    CPU:
    Qualcomm Octa-Core ARM Cortex-A53 1.8GHz, Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
    Touch Screen Type:
    Capacitive Screen
    Hard Disk Capacity:
    2GB ROM+16G RAM
    Product Name:
    Android 10.0 Handheld POS Terminal with Barcode Scanner
    OS:
    Safedroid OS (based on Android 10.0)
    Interface:
    Type C USB Port ,5V DC,2A
    Massive memory:
    2G RAM + 16G ROM
    Display:
    5.7 inch TFT IPS LCD, resolution 1440*720
    Communication:
    4G/3G/2G, WLAN, Bluetooth, VPN
    Certification:
    PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
    Color:
    Black/Red/Gray
    One-stop payment:
    MSR/IC/NFC Card Reader
    Supply Ability
    Supply Ability:
    10000 Unit/Units per Month



    Android 10.0 Handheld POS Terminal with Barcode Scanner



    Highlights

    1. Qualcomm Octa-Core ARM Cortex-A53 1.8GHz;
    2. Safedroid OS (based on Android 10.0);
    3. Massive memory: 2G RAM + 16G ROM;
    4. 5.7 inch TFT IPS LCD, resolution 1440*720;
    5. Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
    6. Dual camera for quickly QR code scan & Symbol 2D scanner as option;
    7. The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;
    8. One-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
    9. NFC for full scenarios such as transportation, logistic, and ID control.Android 10.0 Handheld POS Terminal with Barcode Scanner 7
    Company Information

    Shenzhen Hongzhou Group was founded in 2005,we focus on innovation in smart technology and applications.our product are covering interactive kiosk, smart Payment POS, intelligent ice machines and medical beauty products.



    Over 15000m²production shop,our manufacture facility are ISO9001,ISO13485,IATF16949 certified and UL approved,Equipped with precision sheet metal fabrication,CNC machining,PCBA(SMT&DIP),Wire Harness,and assembly production lines,we are also a professional manufacturer who are focusing on high quality precision sheet metal fabrication, PCBA&EMS,wire harness and mechanical components,and assembling OEM services.



    With vertical integrated batch production capability, low-cost structure, outstanding project operation and customer collaboration ability,we are good at giving quick response to customer‘s requirement for customized project and providing one stop Turnkey Contract Manufacturing  solution in house.



    Our product and solution are widely used in self service terminals& smart payment,smart home,industry and automation,new energy, medical device, electron and communication systems.

    Product Description
    Specifications
    Basic Characteristics OS Safedroid OS (based on Android 10.0)
    CPU Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
    ROM 16GB ROM EMMC
    RAM 2G RAM LPDDR3
    Display 5.7 inch TFT IPS LCD, resolution 720*1440
    Panel

    Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

    Dimensions 163mmX77mmX17.5mm (max 21.8mm)
    Weight 300g (Battery included)
    Keys Physical keys: power on/off, Volume + /-, Scan1/ Scan2
    Input Chinese/English, and supports handwriting and soft keyboard
    Radio Communication WIFI

    IEEE 802.11 b/g/n and a/c,support dual Band 2.4GHZ and 5GHZ

    Bluetooth BT 4.2 LE and earlier
    4G European version(Default):
    FDD-LTE: B1/B3/B5/B7/B8/B20
    TDD-LTE: B38/B39/B40/B41
    American version(Optional):
    FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26
    TDD-LTE: B41
    3G European version(Default):
    WCDMA: B1/B2/B5/B8
    TD-SCDMA: B34/B39,
    CDMA 1x/EVDO: BC0
    American version(Optional):
    WCDMA: B2/B4/B5,
    CDMA 1X/EVDO: BC1
    2G GSM/GPRS/EDGE: 850/900/1800/1900MHZ
    Payment Magcard reader Supports ISO7811/7812/7813, and supports triple
    track (tracks 1/2/3), bi-directional
    Smart Card reader Supports ISO7816 standard
    Contactless Card reader Supports 14443A/ 14443B
    Camera 5MP camera with LED flash and auto-focus function
    Satellite Positioning Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
    NFC 13.56MHZ
    Audio Speaker, Microphone,
    Interfaces Micro SD Card Slot 1 PCS support up to 128GB
    SIM Card Slot 1 PCS MICRO SIM
    PSAM Card Slot 2 PCS Conforms to ISO7816 standard
    USB Port 1PCS TYPE C USB
    Power Battery Li-ion battery, 4.35V/3500mAH
    Charging Port Type C USB Port, 5V DC/2A
    Environment Operating Temperature -10°C to 50°C
    Storage Temperature -20°C to 70°C
    Humidity 5% to 95% Relative Humidity, Non-Condensing
    Certification Electromagnetic CE, Rohs, FCC, BIS, TQM
    Payment PCI PTS 5.X, EMV L1&L2, Paypass, Paywave, Amex
    Optional Fingerprint (Extended support on the charging cradle)
    Printer

    High-Speed Thermal Printer(Extended support on the charging cradle)

    ESIM Card support
    Front camera 2 Megapixel Fixed Focal Camera
    Barcode Scanner

    Symbol 4710 2D Image Engine, Support 1D and 2D symbologies

    Detailed Images

    Android 10.0 Handheld POS Terminal with Barcode Scanner 9Android 10.0 Handheld POS Terminal with Barcode Scanner 11Android 10.0 Handheld POS Terminal with Barcode Scanner 13Android 10.0 Handheld POS Terminal with Barcode Scanner 15Android 10.0 Handheld POS Terminal with Barcode Scanner 17Android 10.0 Handheld POS Terminal with Barcode Scanner 19

    Android 10.0 Handheld POS Terminal with Barcode Scanner 21

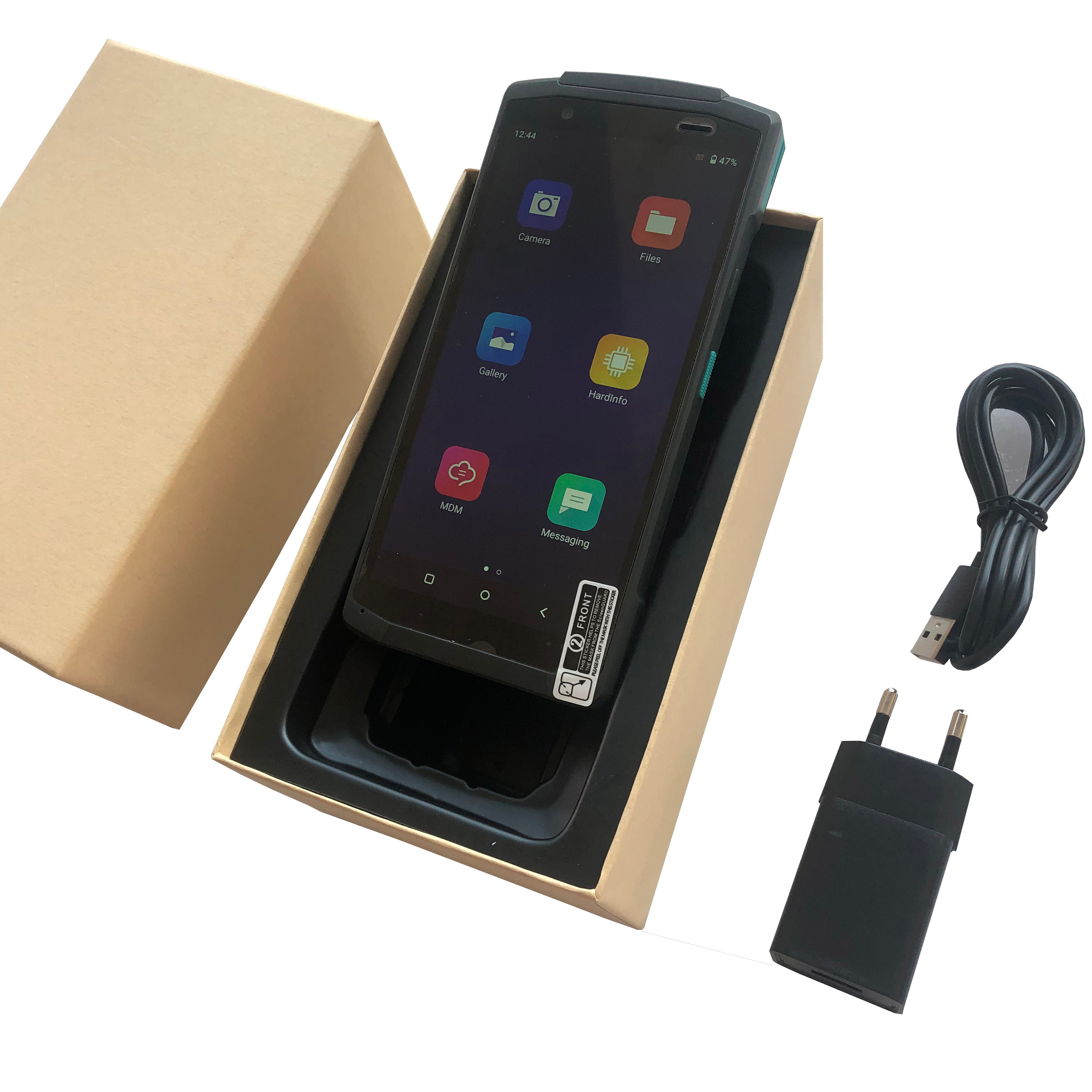

    Packaging & Shipping

    Android 10.0 Handheld POS Terminal with Barcode Scanner 23Android 10.0 Handheld POS Terminal with Barcode Scanner 25

    Our Services

    1.Quick Response and quickly action, your inquiry will be replied in 24 hours.
    2.Competitive price directly from in housing plant.
    3.High quality due to first-hand control in factory.
    4.OEM/ODM:custom fabrication according to your drawings or samples.
    5.Flexibility: small orders are acceptable for quick delivery and help you reduce the stock cost.
    6.Quick delivery and overseas Kanban warehouse service. We have overseas warehouses located in Hongkong and London to support overseas clients.

    FAQ

    1. Are you manufacturer?
    Yes, we are manufacturers.


    2. Would you provide SDK for me?
    Yes, we offer free SDK if you order sample.

    3. What warranty for the products?
    According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

    4. What is the minimum order?
    We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

    5. Can we get the free sample?
    Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

    6. Do you accept Paypal?
    Yes, we accept paypal. Besides, we accept T/T payment (Escrow Service from Alibaba)  and so on.


    7. What's the delivery time?
    Generally, sample can be shipped in 2-3 working days after payment.

    For quantity, the leading time will be 1-4 weeks depend on exact quantity.

    8.Which way to deliver the goods?
    By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
    By Sea: Inform us the Sea Port to check which ship line.
    By Air: Inform us the Airport to check which flight.
    Or pick up by the customers.

    9. What the after sale service?
    a. Our all products will provide 12 months warranty;
    b. Enough stock spare parts for guarantee;
    c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
    d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

    This product fits the natural curves of people's feet, providing maximum comfort for the foot and improving the stability of footsteps. The product delivers outstanding engagement for customers. This piece of furniture is able to enhance the standard of people 's living by increasing their comfort. - Said one of our customers. The product delivers outstanding engagement for customers.
