Hongzhou Smart - 15+ Years Leading OEM & ODM

kiosk turnkey solution manufacturer

Android 7.0 Smart Handheld Android POS Restaurant 1
Android 7.0 Smart Handheld Android POS Restaurant 2
Android 7.0 Smart Handheld Android POS Restaurant 3
Android 7.0 Smart Handheld Android POS Restaurant 4
Android 7.0 Smart Handheld Android POS Restaurant 5
Android 7.0 Smart Handheld Android POS Restaurant 6
Android 7.0 Smart Handheld Android POS Restaurant 1
Android 7.0 Smart Handheld Android POS Restaurant 2
Android 7.0 Smart Handheld Android POS Restaurant 3
Android 7.0 Smart Handheld Android POS Restaurant 4
Android 7.0 Smart Handheld Android POS Restaurant 5
Android 7.0 Smart Handheld Android POS Restaurant 6

Android 7.0 Smart Handheld Android POS Restaurant

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    CS10
    Model Number:
    HZ-CS10-029
    Product Name:

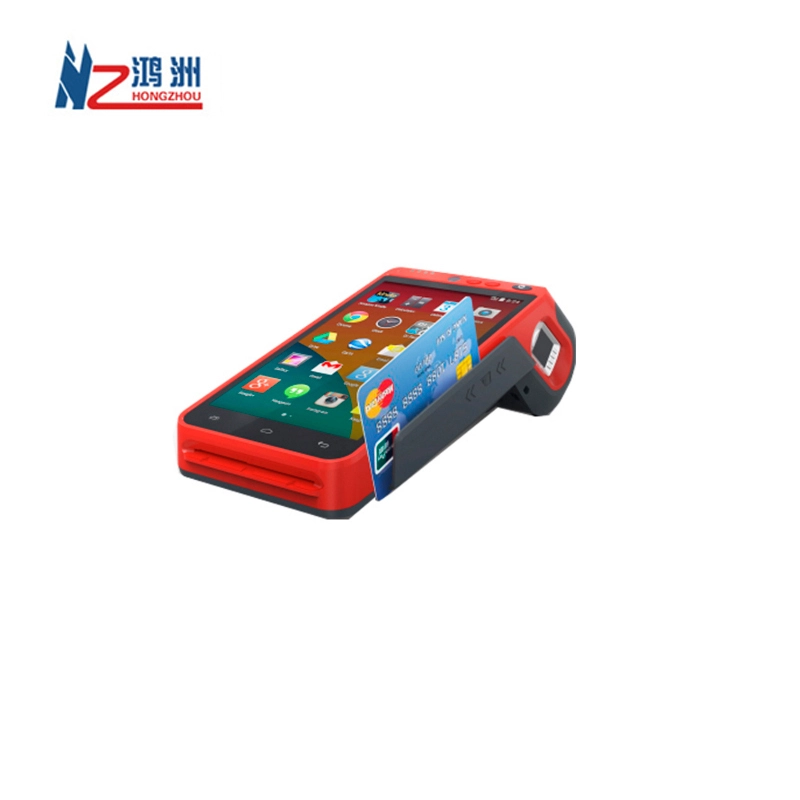

    Android 7.0 Smart Handheld Android POS Restaurant
    CPU:
    Quad-Core 1.35GHZ
    OS:
    Safedroid OS (based on Android 7.0 or 5.1)
    Memory:
    8GB ROM+1G RAM( Support Memory expansion )
    Display:
    5.5 inch TFT IPS LCD(1280*720)
    Communication:
    4G/3G/2G/WIFI/Bluetooth
    Interface:
    Type C USB Port ,5V DC,2A
    Functions:
    Printer+Camera+GPS+SIM Card Slot
    Certification:
    CE FCC ROHS EMV PCI
    Battery:
    Li-ion battery ,7.2V /2600mAH
    Supply Ability
    Supply Ability:
    10000 Unit/Units per Month
    Video Description



    Android 7.0 Smart Handheld Android POS Restaurant



    Android 7.0 Smart Handheld Android POS Restaurant 7

    Ø Safedroid OS, Based on Android 7.0 or 5.1 OS;
    Ø 5.5 inch TFT IPS LCD, resolution 1280*720
    Ø Built-in high speed thermal printer , with over 50Km print life
    Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
    Ø Authentec,508dpi fingerprint module for biometric identification
    Ø  Dual camera for quickly QR code scan & Honeywell 2D scanner as option
    Ø  One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified

    Company Information

    Smart & Reliable POS Terminal Solution-Supported by Hongzhou Group



    Shenzhen Hongzhou Group was founded in 2005,ISO9001 2015 certified and China National Hi-tech enterprise.We are leading global self-service Kiosk,POS terminal manufacturer and solutions provider.



    HZ-CS10 is the cutting-edge secure electronic payment terminal powered by Hongzhou Group,with safe-Android 7.0 operation system. It comes with a 5.5inch high definition colorful display, industrial level thermal printer and flexible configuration for various Barcode Scanner scenarios. A wide range of advanced connectivity options are supported for global 3G/4G network, as well as inbuilt NFC contactless, BT4.0 and WIFI.



    Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.



    HZ-CS10 is widely used in Shopping Mall,Supermarket,Chain Store,Restaurant,Hotel,Hospital,SPA,Cinema, Entertainment,Tourism.

    Product Description
    Specifications
    BasicOSSafedroid OS (based on Android 7.0 or 5.1)
    CharacteristicsCPUQuad-Core 1.35GHZ
    ROM8GB ROM EMMC
    RAM1G RAM LPDDR3
    Display5.5 inch TFT IPS LCD,resolution 1280*720
    Panel

    Ultra sensitive capacitive touch screen,

    can work with gloves and wet fingers

    Dimensions206mm*84mm*32mm
    Weight560g(Battery included)
    Keys3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
    3 Virtual keys:Menu,Home,Back
    Input

    Chinese/English ,and supports handwriting

    and soft keyboard

    Radio CommunicationWIFI

    IEEE 802.11 a/b/g/n ,

    support dual Band 2.4GHZ and 5GHZ

    BluetoothBT 4.0 LE +EDR
    4GTD-LTE:Band38, Band39, Band40, Band41
    FDD-LTE:Band1,Band3,Band7,Band8,Band20
    3GUMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
    CDMA EV-DO Rev.A:800MHZ
    TD-SCDMA:Band34,Band39
    2GGSM/GPRS/EDGE:850/900/1800/1900MHZ
    PaymentMagcard readerSupports ISO7811/7812/7813, and supports triple
    track (tracks 1/2/3), bi-directional
    Smart Card readerSupports ISO7816 standard
    Contactless Card readerSupports 14443A / 14443B
    Expansion and peripheralsPrinterHigh-Speed Thermal Printer ;
    58mm printing paper ;
    40mm paper roll
    Camera5MP camera with LED flash and auto-focus function
    Satellite Positioning

    GPS, GLONASS, Bei-Dou satellite navigation system,

     Supports A-GPS

    AudioSpeaker ,Microphone,Earphone
    InterfacesMicro SD Card Slot1 PCS
    SIM Card Slot2 PCS MICRO SIM
    PSAM Card Slot2 PCS Conforms to ISO7816 standard
    USB Port1PCS TYPE C USB
    PowerBatteryLi-ion battery ,7.2V /2600mAH
    Charging PortType C USB Port ,5V DC,2A
    EnvironmentOperating Temperature-10°C to 50°C
    Storage Temperature-20°C to 70°C
    Humidity5% to 95% Relative Humidity, Non-Condensing
    CertificationElectromagneticCE,ROHS
    OptionalFingerprintSemiconductor capacitance
    14.4mm x 10.4mm imaging area
    208 x 288 pixel array,
    Crossmatch FBI certified
    Authentec,508dpi
    Front camera2 Megapixel Fixed Focal Camera
    Barcode Scanner

    Honeywell 2D Image Engine,

    Support 1D and 2D symbologies

    Fiscal ModuleRussian format
    Detailed Images

    Android 7.0 Smart Handheld Android POS Restaurant 9



    Production Flow

    Android 7.0 Smart Handheld Android POS Restaurant 11

    Certifications

    Android 7.0 Smart Handheld Android POS Restaurant 13

    Packaging & Shipping

    Android 7.0 Smart Handheld Android POS Restaurant 15Android 7.0 Smart Handheld Android POS Restaurant 17

    FAQ
    Q1: What POS We provide?
    A1: For financial/Commerce POS system, Wireless Handheld Cashless POS,
    Android POS,2G/3G/GPS/GPRS/Wi-Fi/Bluetooth POS, but NO Desktop Cash POS.
    Q2: Does your company accept  custom-made items
    A2: Yes, we can.We are a professional solution supplier for financial security & payment industry,
    we provide diffierent solutions and products for diffierent customers.
    Q3: How is Our POS's Quality?

    A3: EMV Level 1&2, PCI 3.0 & 4.0, CE/RoHS/PBOC 2.0/China UnionPay, CCC,

    and Network Access License and 100% test before shipment;

    Q4: Do you Have Free SDK, Free Technical Support and After-sale Service?
    A4:   1. Free SDK, Free Technical Support
            2.  7 * 24-hour service hotline: 0755-36869189;Online technical support by Email or Skype or Whatsapp;
            3.  Specialized process for repair or exchange of product required;
            4.  One Year QA warranty & Three Years After-sale Service Guarantee.
    Q5: How About Your Shipping of POS?
    A5: Delicate box with foam inside and shipping by air.
    Q6: How Long is Your Lead Time?
    A6: Within 1 for sample and within 45 for 500 to 5000 units after confirm payment.
    Q7. How About Your POS Price?
    A7: The more orders, the lower price.
    Q8: How to Pay for our POS terminal?
    A8: Payment: 50% pre-payment, the rest of 50% is honored before shippment by T/T and 100% T/T for a sample.
    Android 7.0 Smart Handheld Android POS Restaurant 19
