    Overview
    Quick Details
    Place of Origin:
    Shenzhen China(mainland)
    Brand Name:
    OEM/ODM
    After-sales Service Provided:
    Video technical support, Online support
    Warranty:
    1 Year
    Material:
    Cold-roll steel sheet or others
    Capacity:
    128G
    Operation System:
    WIN7
    Screen Size:
    15 Inch, 21 Inch, 17 Inch
    Power:
    110-220V
    Weight:
    200KG
    Touch Screen Type:
    Capacitive Screen
    Color::
    Customeriza
    Certification::
    CE ROHS FCC
    OS::
    windows 7 or windows xp (test version without license)
    LCD monitor::
    encrypted pinpad
    Application::
    Indoor / Outdoor customized
    Logo::
    Customize as client's requests
    Function::
    Withdrawals, deposits, transfersand more
    PC::
    Industrial computer, Common PC
    Material features::
    Tempered glass+4.5 mm thickness
    Warranty::
    1 Year
    Supply Ability
    Supply Ability:
    100 Case/Cases per   Month
    Video Description
    Company Information

     ATM Machine 7

    Product Description

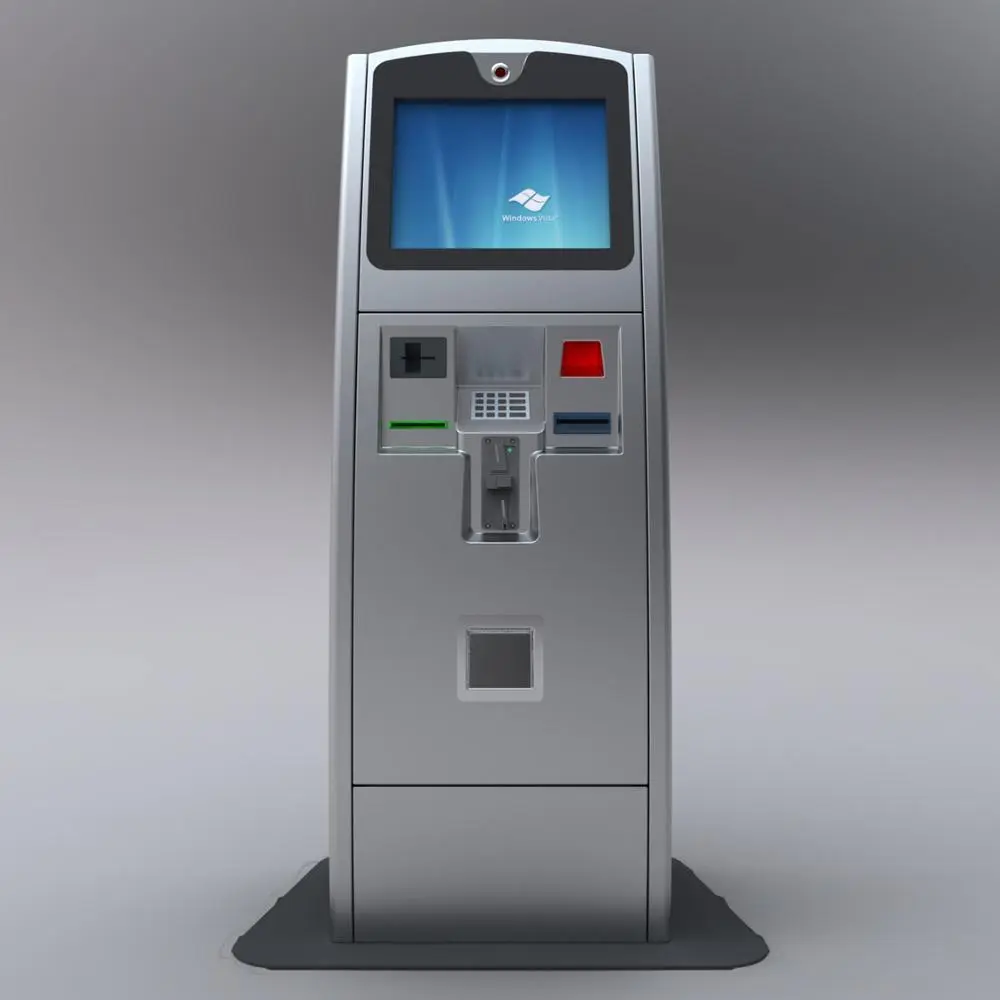

     Bank Machine Atm Lks Free Floor Standing Bank Atm Machine - Buy Bank Machine Atm,Atm Machine Manufacturers In Chinac,Bill Payment Machine Product on Alibaba.com

    Components

    Details

    PC system

    Industrial Board

     Seavo/ Gigabyte/Advantech AIMB 562

    CPU

     Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7

    RAM

    2GB /4 GB / 8GB

    HDD

    500G

    Interface

    6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card

    PC Power Supply

    HUNTKEY/Great Wall

    LCD monitor

    Screen Size

    17 inch/19inch ( optional from 8inch to 65inch)

    Brightness

    250cd/m2

    angle

    horizontal 100°above;Vertical 80°above

    Contrast

    1000:1

    Backlight tube life

    more than 40,000hours

    Max. resolution

    1280×1024

    Touch screen

    Screen Size

    17/19 inch Diagonal ( optional from 8inch to 65inch)

    Resolution

    4096x4096

    High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times

    Bank/Credit Card Reader

    Interface

    RS232

    Card Type

    Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card

    Power Voltage

     DC 24V±5%

    Card Entry method

    Magnetic signal, Optoelectronic signal and rear card signal

    Encrypted Pinpad

    Keylift~span

    2,000,000 cycles

    Key force

    2~3N

    Key trip

    >2.5mm

    Protection level

    ip65

    Cashcode Bill acceptor

    Validation Rate

    96% or higher

    Banknote Insertion

    Four-way

    Escrow

    One banknote

    Capacity

    1000 notes Max

    Coin Acceptor

    Coin Acceptance

    Max 32 coin types, in 2*16 or 1*32 channels

    Detection ability of counterfeit Coins

    with high detection ability of counterfeit coins

    Accepting Speed

    2 Coins/Sec

    Supply Voltage

    10V-16V DC

    Epson receipt thermal printer

    Autocutter

    included

    Technology

    Thermal printing

    Paper width

    80mm

    Printing speed

    150mm/s

    Data buffer

    4KB

    Interface

    RS232 ,USB

    UPS

    Input voltage

    145-290va

    Output voltage

    200-255va

    Max time for supplying a single PC

    3~20minutes (for single PC)

    Digital Power Supply

    AC input voltage range

    100~240VAC

    Frequency

    50Hz to 60Hz

    AC input voltage range

    100~240VAC

    Frequency

    50Hz to 60Hz

    Accessories

    Wire-lan port, USB ports, speakers, fans, cables, screws, etc.

    Operation System

    Windows 7 or Windows XP operation system without license

    KIOSK Cabinet

    Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.

    Packing

    Security Packing method with bubble foam and wooden case

    Packaging & Shipping

     ATM Machine 9

    Our Services

     Fast Response: Our Sales representative will respond your inquires within 12 working hours
    Technical support: Our engineers team has more than 10-year experiences in self service ticket kiosk industry, we always provide our clients suitable solution according to their requirements
    Software development support: We provide FREE SDK for all components to support software development.
    Fast and on time delivery: We guarantee on time delivery, you could receive goodsat expected time;
    Warranty details: 1 year, and lifetime maintenance support.

    FAQ





    Q1: Are you manufacturer?
    A1: Yes, we're and OEM & ODM is accepted



    Q2: What's your MOQ?
    A2: One sample is available.



    Q3: What's the lead time?
    A3: 7~35 days



    Q4: What's your guarantee for ATM Machines?
    A4: 1 year guarantee from the shipping date.



    Q5: What is your  payment methods ?
    A5: T/T, L/C, Western Union, Credit Card, MoneyGram,etc.



    Q6: What is transportation way?
    A6: By sea,by air, by courier



    Q7: What is your trading terms?
    A7: EXW, FOB,CIF,DDU,is our common trading terms

    With all these features, this product will not bring evil consequences such as overcrowding, tantalizing machine-noises, and air pollution. The product features a sleek and durable enclosure, providing a contemporary and sophisticated user interface. This product has a good fit. It is cut neatly in appearance and is able to maintain a reserve of comfort for the wearer’s dynamic movements. The product features a sleek and durable enclosure, providing a contemporary and sophisticated user interface.
