| Components List | ||||
| No.1 | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Baytrail; Integrated Network card and Graphic card |
| CPU | Intel J1900 | |||
| RAM | 4GB | |||
| HDD | 1000G | |||
| Interface | 8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2 | |||
| PC Power Supply | LRS-75-24 | |||
| 2 | Operation System | Windows7(without license) | ||
| 3 | Display | Auo | Screen Size | 19 inch |
| Pixel Number | 1280*1024 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 40000hrs | |||
| 4 | Touch Screen | EG | Screen Diagonal | 19 inch |
| Touch technology | Capacitive | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points/sec | |||
| Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH | |||
| 5 | Non-contact card reader | RS102 | Name | Double frequency card reader |
| Dimension | 104mm*68mm*10mm | |||
| Support | ID: EM4100,4200,TK4100and compatible card IC: Mifare one s50/S70,etc | |||
| Frequency | 125KHz,13.56MHz | |||
| Reader time | <0.5s | |||
| Consumed Current | 70mA | |||
| Operating Distance | 0~10cm | |||
| Interface | USB | |||
| Status Indication | 1pc LED | |||
| 6 | Code keyboard | KMY3501B | Mechanical property | Keyboard life: >2000000 times per key |
| physical property | 4 x 4 keyboard design (10 numeric keys, 6 function keys) | |||
| Safety characteristics | Inside the keyboard's security module, the PIN is encrypted | |||
| Function description | Support DES and TDES encryption and decryption algorithm, PIN encryption, MAC computing | |||
| 7 | Two-dimensional code scan | 7160 | Image (Pixels) | 640 pixels(H) x 480 pixel(V) |
| Light Source | Illumination: 6500K LED | |||
| Field of View | 80°(H) x 64° (V) | |||
| Print Contrast£º | 20% minimum reflective difference | |||
| Interfaces Supported£º | USB , RS232 | |||
| 1-D | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. | |||
| 2-D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. | |||
| 8 | Printer | Epson-MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 9 | Camera | C270 | Photosensitive element | CMOS camera |
| pixel | 5 million | |||
| Built-in microphone | yes | |||
| Maximum frame number | 30 frames / second frame | |||
| 10 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
| Frequency | 50Hz to 60Hz | |||
| Output over current protection | 110~130% | |||
| Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) | |||
| 11 | Speaker | Kinter | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 12 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 13 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 14 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
※ Free standing type with sheet metal base

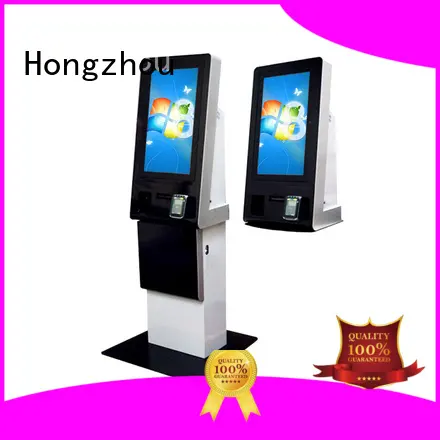

Product details
