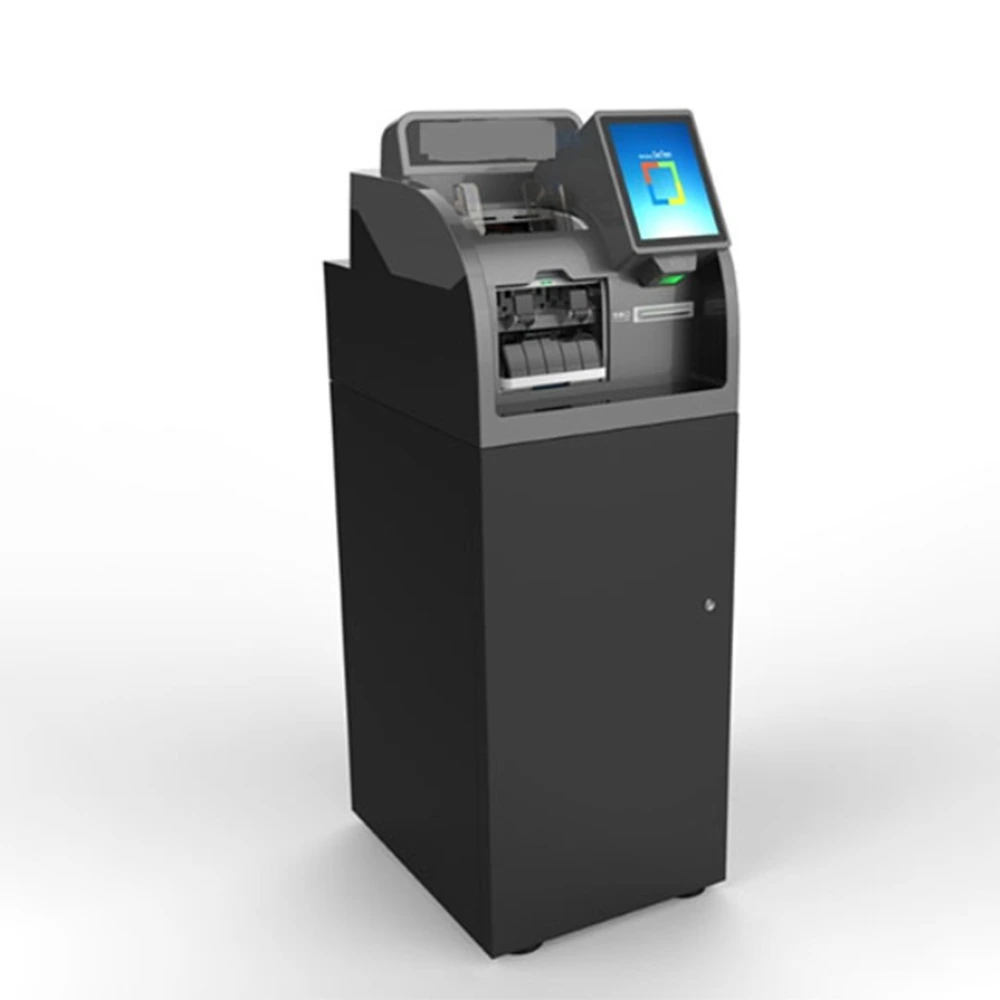

Cash Deposit Bank Machine One Way and Two Way Bitcoin ATM with software
| No. | Components | Main Specifications | |
| 1 | Industrial PC System | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel G3250 | ||
| RAM | 4GB | ||
| HDD | 1000G | ||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | ||
| PC Power Supply | HUNTKEY | ||
| 2 | Operation System | Windows 7 (without license) | |
| 3 | Display+Touch screen | Screen Size | 27 inch |
| Pixel Number | 1920*1080 | ||
| Brightness | 300cd/m2 | ||
| Contrast | 1000:1 | ||
| Display Colors | 16.7M | ||
| Viewing Angle | 89°/89°/85°/85° | ||
| Touch point number | 10 point | ||
| Input mode | Finger or capacitor pen | ||
| Surface hardness | ≥6H | ||
| 4 | Cash Accepter | Cashbox box capacity | 1200 notes |
| Note Dimensions | Width:60-83 mm Length:120-177 mm | ||
| Note Acceptance Speed | 2.3 seconds | ||
| Acceptance Rate | 98% or higher | ||
| 5 | Printer | Printer Method | Thermal printing |
| Print width | 80mm | ||
| Speed | 250mm/sec(Max) | ||
| Resolution | 203dpi | ||
| Print length | 100KM | ||
| Autocutter | included | ||
| 6 | Camera | Sensor type | 1/2.7"CMOS |
| Array size | 1928*1088 | ||
| Pixel | 3.0um*3.0um | ||
| Maximum image transfer rate | 1080P 30FPS | ||
| AGC/AEC/Whiter balance | Auto | ||
| 7 | Camera for cash acceptor and dispenser | CCD | 1/3" SONY CCD |
| 700TV | |||
| 8 | Power Supply | AC input voltage range | 100-240VAC |
| DC output voltage | 24V | ||
| Output over current protection | 110~130% | ||
| Operating temp. & humidity | -10~+50,20%~90%RH (noncondensing) | ||
| AC input voltage range | 100-240VAC | ||
| DC output voltage | 12V | ||
| 9 | LED lamp control module | Provide 8-way 5V dual-color lamp output 4-way 12V output | |
| 10 | Speaker | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 11 | KIOSK Cabinet | Dimention | decided when finish production |
| Color | Optional by customer | ||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | |||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | |||
| 3.Color and LOGO are upon customers' requests. | |||
