15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

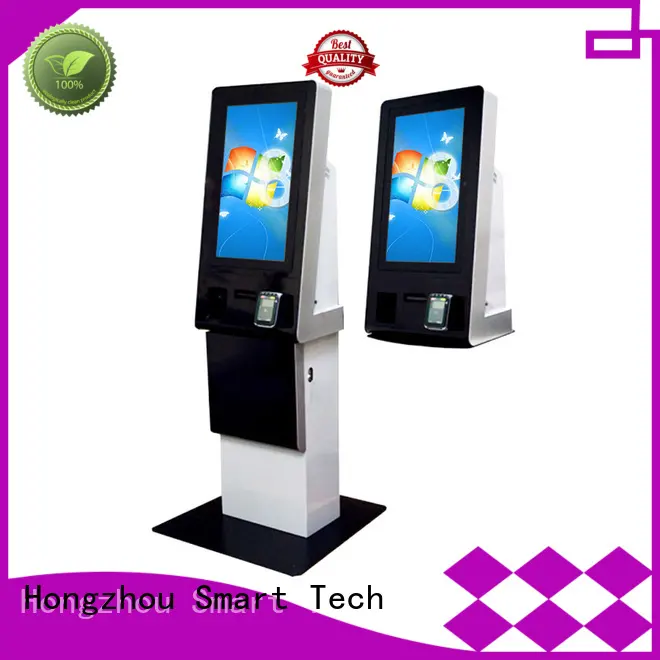

cash payment kiosk dispenser for sale Hongzhou 1

cash payment kiosk dispenser for sale Hongzhou 2

cash payment kiosk dispenser for sale Hongzhou 3

cash payment kiosk dispenser for sale Hongzhou 4

cash payment kiosk dispenser for sale Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Hongzhou self service payment kiosk is produced in a dust-free and bacteria-free workshop in which the temperature and humidity are strictly controlled and monitored, so as to ensure its high quality.
2. This ruggedly handsome product is designed to resist the elements such as impact and rust, making it more time-tested.
3. There is a protection system on this product to prevent the electrostatic discharge may lead to instantaneous high current and Highfield.
4. After receiving deposit, Hongzhou Smart Tech Co.,Ltd will make production plan immediately.
5. Through quality checking and self service payment kiosk , payment kiosk can be highly assured for quality.

Components List
No.1	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Baytrail; Integrated Network card and Graphic card
			CPU	Intel J1900
			RAM	4GB
			HDD	1000G
			Interface	8USB, 6COM, 1VGA, 2LAN,1AUDIO, 1LPT, 1*PS/2
			PC Power Supply	LRS-75-24
2	Operation System		Windows7(without license)
3	Display	Auo	Screen Size	19 inch
			Pixel Number	1280*1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG	Screen Diagonal	19 inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Non-contact card reader	RS102	Name	Double frequency card reader
			Dimension	104mm68mm10mm
			Support	ID: EM4100,4200,TK4100and compatible card IC: Mifare one s50/S70,etc
			Frequency	125KHz,13.56MHz
			Reader time	<0.5s
			Consumed Current	70mA
			Operating Distance	0~10cm
			Interface	USB
			Status Indication	1pc LED
6	Code keyboard	KMY3501B	Mechanical property	Keyboard life: >2000000 times per key
			physical property	4 x 4 keyboard design (10 numeric keys, 6 function keys)
			Safety characteristics	Inside the keyboard's security module, the PIN is encrypted
			Function description	Support DES and TDES encryption and decryption algorithm, PIN encryption, MAC computing
7	Two-dimensional code scan	7160	Image (Pixels)	640 pixels(H) x 480 pixel(V)
			Light Source	Illumination: 6500K LED
			Field of View	80°(H) x 64° (V)
			Print Contrast£º	20% minimum reflective difference
			Interfaces Supported£º	USB , RS232
			1-D	UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
			2-D	PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
8	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
9	Camera	C270	Photosensitive element	CMOS camera
			pixel	5 million
			Built-in microphone	yes
			Maximum frame number	30 frames / second frame
10	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
11	Speaker	Kinter	Dual channel amplified speakers for Stereo , 8Ω 5W.
12	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
13	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
13	Accessories
14	Packing	Security Packing Method with Bubble Foam and Wooden Case
14	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ Free standing type with sheet metal base

cash payment kiosk dispenser for sale Hongzhou 5

Product details

cash payment kiosk dispenser for sale Hongzhou 6

Stable performance

cash payment kiosk dispenser for sale Hongzhou 7

High end appearance

Company Features
1. As one of the SMEs in China, Hongzhou Smart Tech Co.,Ltd is reliable.
2. We have a professional team who can reply to clients' inquiries quickly and give real-time feedback. They can give clients professional guidance or advice in terms of products types, functions, prices, delivery, customization, etc.
3. In providing self service payment kiosk , we never neglect the importance of service and quality. Ask! Our mission is to deliver consistent customer delight through intense vetting of customers projects, outstanding engagement execution, and project management. Our mission is, to satisfy and meet the needs of our customers, providing our products and services with the quality, adjusted to their needs and preferences and to create value for our stakeholders through originality and strict adherence to our principles. Ask!

Our Services

Trade Info

1.Trade terms >>FOB,CIF,EXW
2.Payment terms >>TT,Western Union,PayPal,Escrow,MoneyGram
3.Payment condition >>50% deposit in advance,50% balance before delivery
4.Delivery time >>5~7days after deposit,3~4 working days for inventory
5.Packing >>Neutral carton,wooden case for large size
6.Shipping >>By sea,by air and by express

Trade Procedure

Inquiry >>Reply >>Contract >>Receive payment >>Produce >>Testing&packing >>Delivery >>Receiving

After-Sale Service

1.Supply OEM&ODM Service,independent QC department,many times testing and checking well in site
2.100% QC pass checking and testing before shipping
3.13 months of warranty
4.CE,RoHs,FCC

Packaging & Shipping

cash payment kiosk dispenser for sale Hongzhou 8

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
