Hongzhou Smart - 15+ Years Leading OEM & ODM

kiosk turnkey solution manufacturer

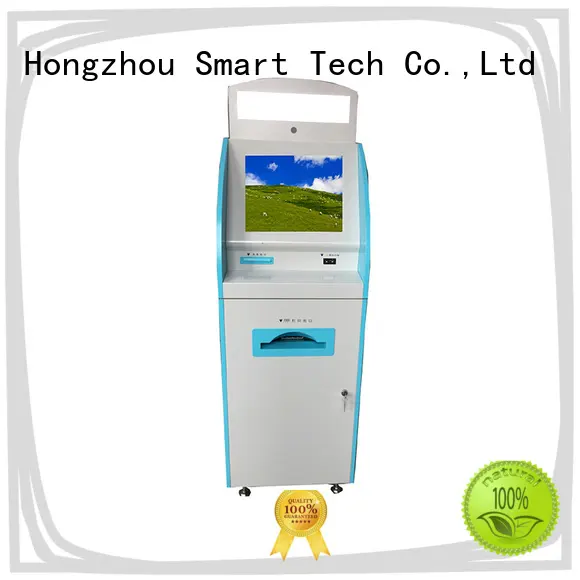

check hospital check in kiosk line for Hongzhou 1

check hospital check in kiosk line for Hongzhou 2

check hospital check in kiosk line for Hongzhou 3

check hospital check in kiosk line for Hongzhou 4

check hospital check in kiosk line for Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. medical check in kiosk and medical kiosk are biggest strong points of our hospital check in kiosk . The attractive curved face and trim options can be customized to complement any environment
2. With its large growth prospect, this product has helped Hongzhou won many long-term cooperation customers. This product delivers unrivaled performance, even in the busiest of environments
3. The product meets with the global set standards in all respects, such as performance, service life, usability, and so on. With its ergonomically and compact structure, the product is user-friendly
4. The product has passed all relative certificates of quality. Its ADA compliant design ensures self-service access to users

Components List
No.	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel I3 4130
			RAM	4GB
			HDD	120G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY400W
2	Operation System		Windows 7(without license)
3	Display	21.5"	Screen Size	21.5 inch
			Pixel Number	1920*1080
			Brightness	250cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	178(H), 178(V)
			LED Life Time	Min. 40000hrs
4	Touch Screen	21.5"	Screen Diagonal	19 inch
			Touch technology	capacitance
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points /sec
			Operation Conditions	12MHz
5	Card Reader	M100-C	Card type	Support magnetic card read only, IC card read and write, RF card read and write,
			Protocol standard	Suit ISO07810 7811 standard，EMV、7816，S50/S70、ID card
			Card in	Magnetic signal, photoelectric signal, backward card
			Stop screens	Multi-stop card
			Head life	Not less than 1 million
6	Password keyboard	KMY3501B	Panel	4*4 16 key stainless steel panel
			Encryption algorithm	Support DES and TDES encryption, decryption algorithm, PIN encryption, MAC operation
			Level of protection	Dustproof, waterproof, anti-riot, shockproof, anti-drilling, anti-pry
			Certification	Through CE, FCC, ROHS certification, through the people's bank of China bank card testing center testing
7	Second generation ID card reader	IDM10 or INVS300	Standard specification	It meets the ISO/IEC 14443 TYPE B standard and the general technical requirements for id card reading from GA 450-2013
			Card reading response speed	<1S
			Reading distance	0-30mm
			Working frequency	13.56MHz
			Data interface	USB , RS232
8	Printer	MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
9	Qr code scanning	7160N or Honeywell CM3680	Barcode 1-D	UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
			Two-dimensional bar code	PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
			Voltage	5VDC
			Interface support	USB , RS232
			The light source	Illumination: 6500K LED
10	Health card/social security card reader simulation mode, social security docking	M100-D	Read the card type	Support magnetic card read only, IC card read and write, RF card read and write,
			Protocol standard	Conform to ISO07810 7811 standard, EMV, 7816, S50/S70, ID card
			Way into the card	Magnetic signal, photoelectric signal, backward card
			Stop screens	Multi-stop card
			Head life	Not less than 1 million
11	A4 printer	JINGCI 2135D	Printer mode	A4 black and white laser printer
			The resolution of the	As high as 600 x600dpi
			The printing speed	35 pages per minute
			Into the carton	Standard 250 paper cartons
			The power supply voltage	AC 220-240V(±10％)，50/60Hz(±2Hz),
12	Speaker	kinter	Dual channel amplified speakers for Stereo , 8Ω 5W.
13	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			3.Color and LOGO are upon customers' requests.
14	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
14	Accessories
15	Packing	Security Packing Method with Bubble Foam and Wooden Case
15	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ Multifunction for payment, print and inquiry

check hospital check in kiosk line for Hongzhou 5

Product details

check hospital check in kiosk line for Hongzhou 6

Stable performance

check hospital check in kiosk line for Hongzhou 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd has a large factory dedicated to medical check in kiosk production. Hongzhou Smart Tech Co.,Ltd's advanced technology and sophisticated production ensure product quality and customer interests.
2. Technology from Hongzhou Smart Tech Co.,Ltd has reached international advanced level.
3. In order to improve the reputation of Hongzhou, it is necessary to utilize new advanced technologies. Hongzhou insists on developing the best corporate culture to better improve team cohesion. Call!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
