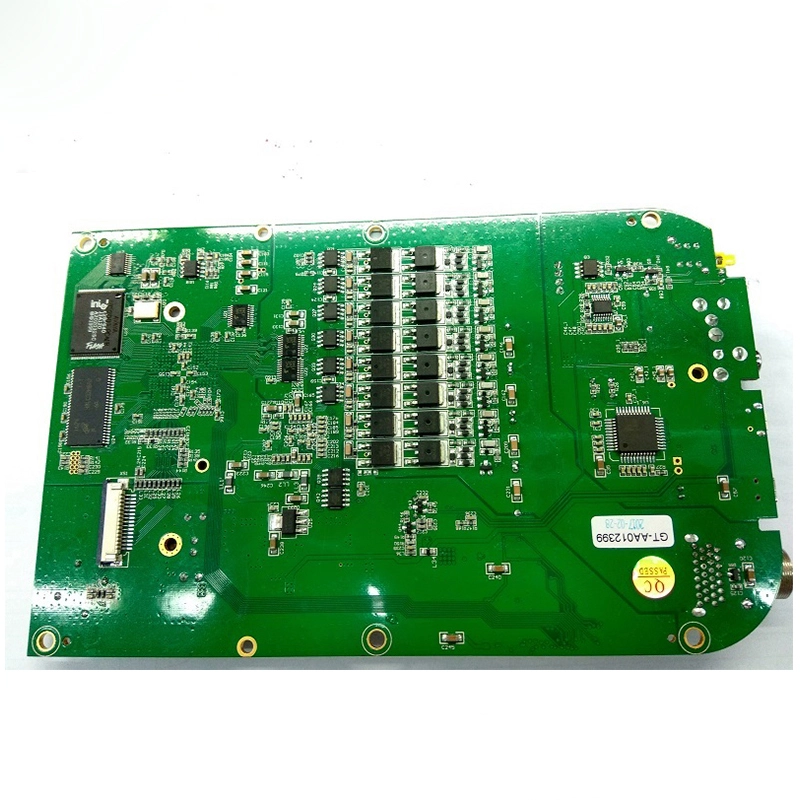

Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 1
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 2
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 3
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 4
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 5
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 6
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 1
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 2
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 3
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 4
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 5
Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 6

Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    China
    Brand Name:
    Customized
    Model Number:
    PCBA
    Base Material:
    FR4
    Copper Thickness:
    1oz
    Board Thickness:
    1.6MM
    Min. Hole Size:
    0.2MM
    Min. Line Width:
    3mil
    Min. Line Spacing:
    1mil
    Surface Finishing:
    HASL, OSP, Immersion Gold
    OEM:
    PCB turnkkey service
    MOQ::
    1pcs
    Number of Layer::
    1-64 Layers
    Certificate::
    ISO9001/ISO13485/IATF16949
    Testing::
    AOI, X-RAY, ICT
    Solder mask:
    Green,Yellow,Black,White,Red..
    Type of Assembly::
    SMT/THD/DIP
    Application:
    medical, automation, industry
    Supply Ability
    Supply Ability:
    10000 Piece/Pieces per Week
    Product Description
    PCB capability
    Layer count
    1-48 layers
    Material
    fr4,Tg=135,150,170,180,210,cem-3,cem-1,al base,teflon,rogers,nelco
    Copper thickness
    1/2oz,1oz,2oz,3oz,4oz,5oz
    Board thickness
    8-236mil(0.2-6.0mm)
    Min.line width/space
    3/3 mil(75/75um)
    Min. drill size
    8 mil(0.2mm)
    Min. HDI laser drill size
    3 mil(0.067mm)
    Tolerance of hole size
    2 mil(0.05mm)
    PTH copper thickness
    1 mil(25 um)
    Solder mask color
    Green,blue,yellow,white,black,red
    Peelable solder mask
    yes
    surface treating
    HASL(ROHS), ENING,OSP,IMMERSION SILVER,IMMERSION TIN,flash gold,gold finger
    Gold thickness
    2-30u" (0.05-0.76um)
    Blind hole/buried hole
    yes
    V-cut
    yes

    PCBA capability
    Technology
    SMT, THT
    SMT capability
    2,000,000 points per day
    DIP capability
    300,000 points per day
    Experiences
    QFP, BGA, μBGA, CBGA
    Process
    Lead-free
    Programming
    Yes
    Conformal coating
    Yes
    Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 7
    Application
    * industrial control,
    * medical device,
    * food equipment,
    * laser module,
    * communication device,
    * PLC module,
    * transducer module,
    * traffic control,
    * automobile,
    * smart home system,
    * smart POS

    Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 9
    Company Profile
    Shenzhen Hongzhou Technology Co., Ltd. is a factory offering EMS (Electronic Manufacturing service) manufacturing.The main business of our factory is as below:
    1. High Quality PCBA OEM & ODM service, including components sourcing and function testing
    2.One-stop service including sheet metal and wire manufacturing
    3. Mechanical and Electronic products assembly.
    Why CHOOSE GT?
    With experience of working for global equipment group previously, our core team members are with great experience in EMS manufacturing and management. We devote ourselves into Industrial Control products, Medical products, New Energy products, Auto products, Financial industry products and other high-end products manufacturing. Supper manufacturing ability: 0201 parts can be placed easily for PCB Assembly; Over 10 years International experience, most of products are exports to United States, Canada, Germany, UK, Swiss and other developed countries in America and European.Grandtop, as a professional EMS manufacture, is certificated with ISO9001:2015, ISO13485:2016, and IAFT16949:2016. We always stick to the principle of " Quality is the future of a company" .
    Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 11
    Packing & Delivery
    Customized Turnkey PCB Manufacture Printed Circuit Boards Assembly 13
    Hongzhou believes the achievement of customer expectation will enhance the customer satisfication. The product features an elegant looking with anti-corrosion powder coating. Hongzhou 's factory has advanced production management experience and sound quality control system. The product features an elegant looking with anti-corrosion powder coating.
