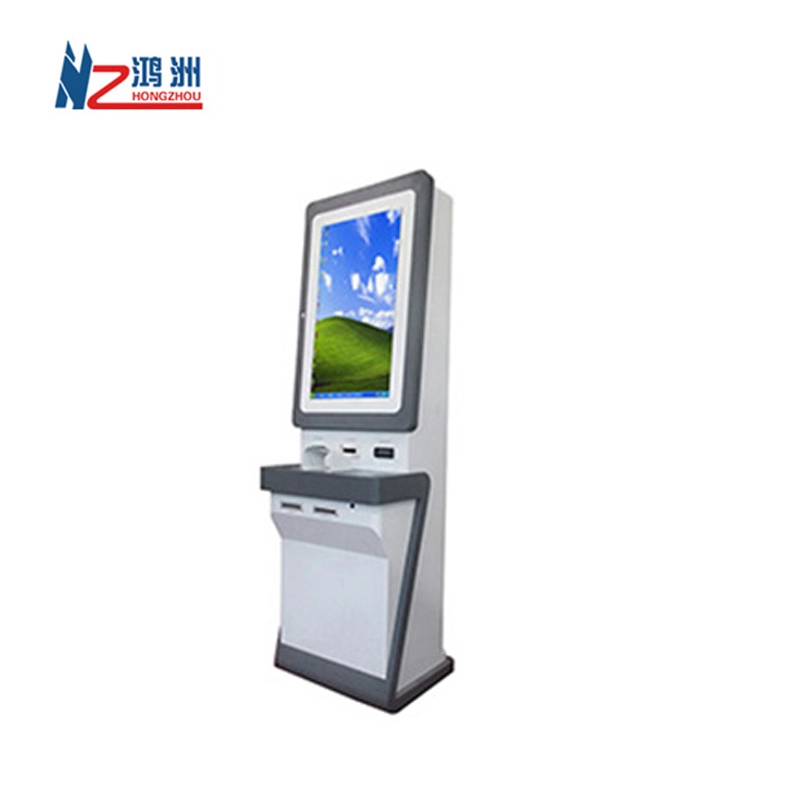

Dual screen dispenser Windows bill acceptor payment kiosk
Specification
| Components | Details | |
| PC system | Industrial Board | Seavo/ Gigabyte/Advantech AIMB 562 |
| CPU | Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 | |
| RAM | 2GB /4 GB / 8GB | |
| HDD | 500G | |
| Interface | 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card | |
| PC Power Supply | HUNTKEY/Great Wall | |
| LED monitor | Screen Size | Optional from 8inch to 65inch |
| Brightness | 250cd/m2 | |
| angle | horizontal 100°above;Vertical 80°above | |
| Contrast | 1000:1 | |
| Backlight tube life | more than 40,000hours | |
| Max. resolution | 1280×1024 | |
| Touch screen | Screen Size | Optional from 8inch to 65inch |
| Resolution | 4096x4096 | |
| High Transparence, high precision and durability,Orientation precision< 2mm ( 0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
| Bank/Credit Card Reader | Interface | RS232 |
| Card Type | Support Magcard, IC Card, RF Card, Mifare S50 , S70 , UL Card | |
| Power Voltage | DC 24V±5% | |
| Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
| Encrypted Pinpad | Keylift ~ span | 2,000,000 cycles |
| Key force | 2~3N | |
| Key trip | >2.5mm | |
| Protection level | ip65 | |
| Cashcode Bill acceptor | Validation Rate | 96% or higher |
| Banknote Insertion | Four-way | |
| Escrow | One banknote | |
| Capacity | 1000 notes Max | |
| Coin Acceptor | Coin Acceptance | Max 32 coin types, in 2*16 or 1*32 channels |
| Detection ability of counterfeit Coins | with high detection ability of counterfeit coins | |
| Accepting Speed | 2 Coins/Sec | |
| Supply Voltage | 10V-16V DC | |
| Epson receipt thermal printer | Autocutter | included |
| Technology | Thermal printing | |
| Paper width | 80mm | |
| Printing speed | 150mm/s | |
| Data buffer | 4KB | |
| Interface | RS232 , USB | |
| UPS | Input voltage | 145-290va |
| Output voltage | 200-255va | |
| Max time for supplying a single PC | 3~20minutes (for single PC) | |
| Digital Power Supply | AC input voltage range | 100 ~ 240VAC |
| Frequency | 50Hz to 60Hz | |
| AC input voltage range | 100 ~ 240VAC | |
| Frequency | 50Hz to 60Hz | |
| Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
| Operation System | Windows 7 or Windows XP operation system without license | |
| KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof , Antirust , Anti-acid , Anti-dust , Static free, have color and LOGO upon request. | |
| Packing | Security Packing method with bubble foam and wooden case | |
Application
| Business Product Promotional display | supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels,restaurants, travel agencies, pharmacy |
| Financial Organizations | Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools |
| Public Places | subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers |
| Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
FAQ
1.Q:Are you a factory or trading company?
A:We are a OEM/ODM factory
2.Q:Can I get some sample?
A:Sample order is welcome.
Price would be negotiated bassed on bigger quantity
3.Q:How does your factory do regarding quality control?
A:Our company's philosophy is: customer first, quality is the life, integrity management, innovation is the company's blood.We have very excellent product designers and engineers for quality escort and provide 24-hour after-sales service.Our factory has gained CE/CCC/FCC/ROHS/IP65&IP66.And welcome to visit our factory.
4.Q:What is your after-sale service?
A:We offer 100% guarantee on our product.
5.Q:When will you make the delivery?
A:We can make the delivery within 3-15 working days according to the size of your order.
If you want to know more about our products and company,welcome to contact us any time.
