Design Drawing
Specification sheet
Display screen Specification | |
Screen size | 21.5 inch / 476.64*268.11mm |
Screen proportion | 16:9 |
Resolution | 1920(RGB)×1080 |
Brightness | 250 cd/m² |
Contrast ratio | 1500:1 |
Viewing angle | 178°/178° |
Response Time | 5ms |
Display Color | 16.7M |
Hardware Configuration | |
CPU | 4 Core GPU Mail-T764, 1.8GHz Cortex-A17 |
RAM | 2G |
internal memory | EMMC FLASH 8G |
Wifi | 802.11b/g/n WIFI |
OS | Android 5.1 |
Language | Chinese, English etc. |
Decoding resolution | 3840*2160 |
USB | *2pcs |
LAN | 1pcs standard RJ45 |
Specification sheet
Overall Parameter | |
Voltage | AC 100-240V (50/60Hz) |
Power | < 40W (based on different main board and CPU) |
Standby Power | <3W |
Operation temperature | Operation temperature |
Operation Humidity | 20%~80% |
Frame | Unique safety appearance design (R18 arc angle); Polishing frame, no sharp edge or hump (Avoid to be injured by accidentally hitting) |
Screen Surface | Protected by 3mm thick glass, scratch-resistant.and anticollision |
Backboard | SPCC cold-rolled sheet |
Other connector | AC220V Pin chager connector, power switch |

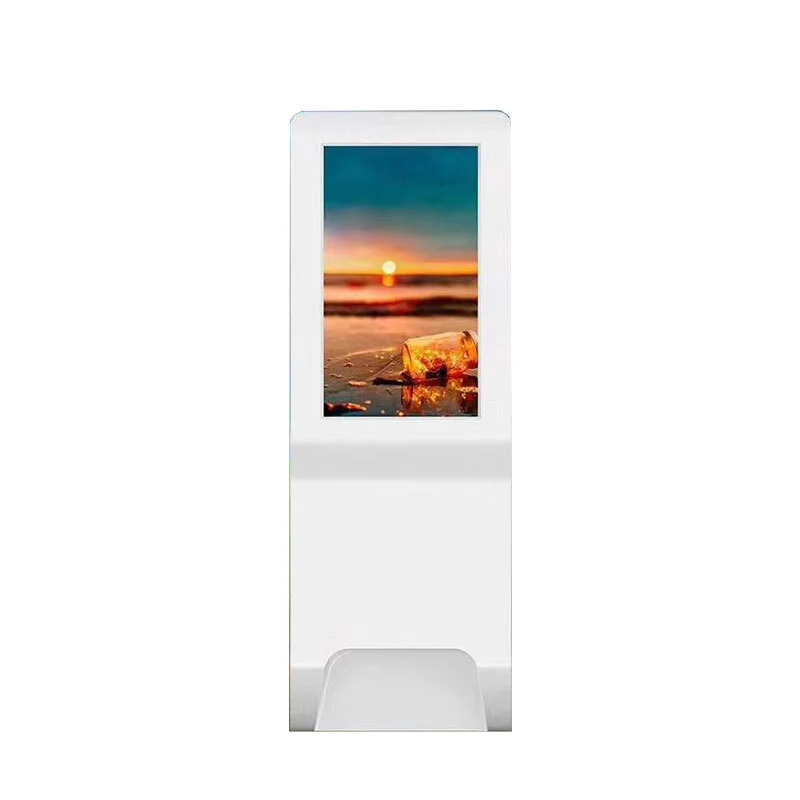

Product Size
Product Features
A. Automatic induction disinfection, touchless & flushing-free use;
B. Polymethyl methacrylate protection on the surface;
C. Anti-thief lock protects the equipment and information;
D. Time power on & off support, to realize 24h unsupervised;
E. Professional LCD screen, to bring brighter video & image with stronger sense of three-dimensional;
F. Long lifespan - 50-60k hours lifespan upon 7*24h uninterrupted use;
G. Super decoding, support MPG,MPG-1/4,AVI,MP4,TS,MKV,RMVB,MP3,wma,jpeg,bmp etc.;
H. Convenient management: humanized software for playlist, easy to manage and control AD playing;
I. Playing record to review the playing situation;
J. Diversified usage: could be published through networking or stand-alone operation.
EXPERIENCE WITH
Application
Schools
Office
Supermarket
Airport
Restaurant Bar
Hospital
Cinema
Subway
Railway Station
Bank
Hotel
