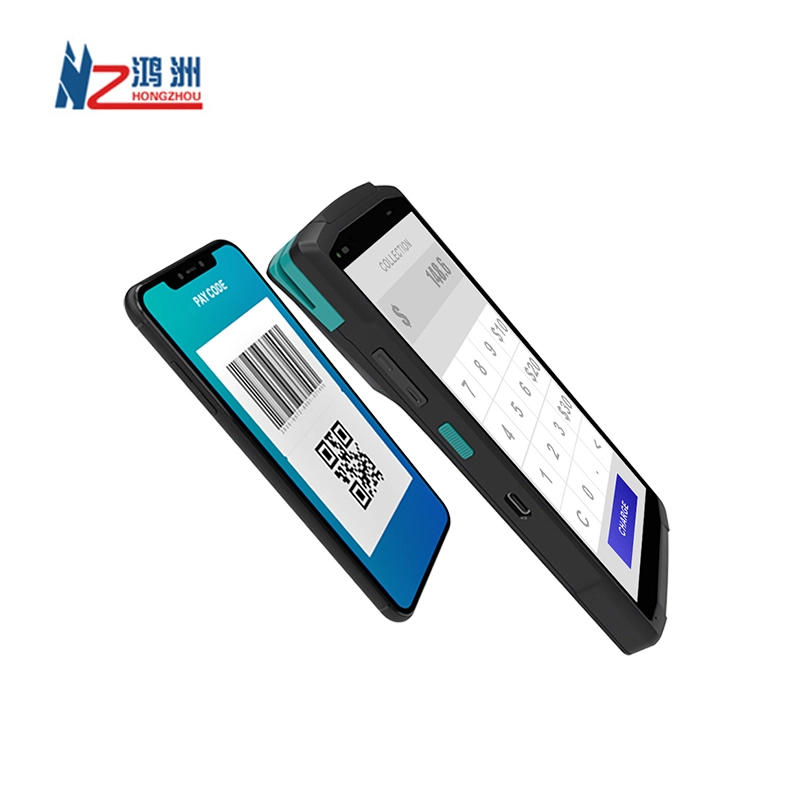

Handheld POS Terminal Machine Support 4G WIFI Bank Payment
Handheld POS Terminal Machine Support 4G WIFI Bank Payment
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CS20
After-sales Service Provided:
Video technical support
Warranty:
1 Year
Operation System:
Android 10.0
CPU:
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz, Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
16GB ROM+2G RAM
Product Name:
EMV PCI Certification Android 10.0 Mobile POS System
OS:
Safedroid OS (based on Android 10.0)
Interface:
Type C USB Port ,5V DC,2A
Massive memory:
2G RAM + 16G ROM
Display:
5.7 inch TFT IPS LCD, resolution 1440*720
Communication:
4G/3G/2G, WLAN, Bluetooth, VPN
Certification:
PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
Color:
Black/Red/Gray
One-stop payment:
MSR/IC/NFC Card Reader
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Video Description



Handheld POS Terminal Machine Support 4G WIFI Bank Payment



Highlights

  1. Qualcomm Octa-Core ARM Cortex-A53 1.8GHz;
  2. Safedroid OS (based on Android 10.0);
  3. Massive memory: 2G RAM + 16G ROM;
  4. 5.7 inch TFT IPS LCD, resolution 1440*720;
  5. Full bands for global coverage: 4G/3G/2G, WLAN, Bluetooth, VPN;
  6. Dual camera for quickly QR code scan & Symbol 2D scanner as option;
  7. The grand 4.35V/3500mAH battery + extraordinary power management design ensures a full day duration;
  8. One-stop payment of MSR/IC/NFC,with PCI PTS 5.X, EMV L1&L2,Paypass,Paywave,Amex,TQM certified.
  9. NFC for full scenarios such as transportation, logistic, and ID control.

Company Information

Shenzhen Hongzhou Group was founded in 2005,we focus on innovation in smart technology and applications.our product are covering interactive kiosk, smart Payment POS, intelligent ice machines and medical beauty products.



Over 15000m²production shop,our manufacture facility are ISO9001,ISO13485,IATF16949 certified and UL approved,Equipped with precision sheet metal fabrication,CNC machining,PCBA(SMT&DIP),Wire Harness,and assembly production lines,we are also a professional manufacturer who are focusing on high quality precision sheet metal fabrication, PCBA&EMS,wire harness and mechanical components,and assembling OEM services.



With vertical integrated batch production capability, low-cost structure, outstanding project operation and customer collaboration ability,we are good at giving quick response to customer‘s requirement for customized project and providing one stop Turnkey Contract Manufacturing  solution in house.



Our product and solution are widely used in self service terminals& smart payment,smart home,industry and automation,new energy, medical device, electron and communication systems.

Product Description
Specifications
Basic Characteristics OS Safedroid OS (based on Android 10.0)
CPU Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
ROM 16GB ROM EMMC
RAM 2G RAM LPDDR3
Display 5.7 inch TFT IPS LCD, resolution 720*1440
Panel

Ultra sensitive capacitive touch screen, can work with gloves and wet fingers

Dimensions 163mmX77mmX17.5mm (max 21.8mm)
Weight 300g (Battery included)
Keys Physical keys: power on/off, Volume + /-, Scan1/ Scan2
Input Chinese/English, and supports handwriting and soft keyboard
Radio Communication WIFI

IEEE 802.11 b/g/n and a/c,support dual Band 2.4GHZ and 5GHZ

Bluetooth BT 4.2 LE and earlier
4G European version(Default):
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B39/B40/B41
American version(Optional):
FDD-LTE: B2/B4/B5/B12/B13/B17/B25/B26
TDD-LTE: B41
3G European version(Default):
WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39,
CDMA 1x/EVDO: BC0
American version(Optional):
WCDMA: B2/B4/B5,
CDMA 1X/EVDO: BC1
2G GSM/GPRS/EDGE: 850/900/1800/1900MHZ
Payment Magcard reader Supports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card reader Supports ISO7816 standard
Contactless Card reader Supports 14443A/ 14443B
Camera 5MP camera with LED flash and auto-focus function
Satellite Positioning Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
NFC 13.56MHZ
Audio Speaker, Microphone,
Interfaces Micro SD Card Slot 1 PCS support up to 128GB
SIM Card Slot 1 PCS MICRO SIM
PSAM Card Slot 2 PCS Conforms to ISO7816 standard
USB Port 1PCS TYPE C USB
Power Battery Li-ion battery, 4.35V/3500mAH
Charging Port Type C USB Port, 5V DC/2A
Environment Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% to 95% Relative Humidity, Non-Condensing
Certification Electromagnetic CE, Rohs, FCC, BIS, TQM
Payment PCI PTS 5.X, EMV L1&L2, Paypass, Paywave, Amex
Optional Fingerprint (Extended support on the charging cradle)
Printer

High-Speed Thermal Printer(Extended support on the charging cradle)

ESIM Card support
Front camera 2 Megapixel Fixed Focal Camera
Barcode Scanner

Symbol 4710 2D Image Engine, Support 1D and 2D symbologies

Detailed Images

Packaging & Shipping

Our Services

1.Quick Response and quickly action, your inquiry will be replied in 24 hours.
2.Competitive price directly from in housing plant.
3.High quality due to first-hand control in factory.
4.OEM/ODM:custom fabrication according to your drawings or samples.
5.Flexibility: small orders are acceptable for quick delivery and help you reduce the stock cost.
6.Quick delivery and overseas Kanban warehouse service. We have overseas warehouses located in Hongkong and London to support overseas clients.

FAQ

1. Are you manufacturer?
Yes, we are manufacturers.


2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample.

3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.

4. What is the minimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

5. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.

6. Do you accept Paypal?
Yes, we accept paypal. Besides, we accept T/T payment (Escrow Service from Alibaba)  and so on.


7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment.

For quantity, the leading time will be 1-4 weeks depend on exact quantity.

8.Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.
Or pick up by the customers.

9. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;

Hongzhou Smart Tech Co.,Ltd guarantees its products' excellent performance. Its touchscreen provides brilliant resolution and precision touch capability. Hongzhou Smart Tech has corresponding R&D institutions in many regions of the country. Its touchscreen provides brilliant resolution and precision touch capability.
