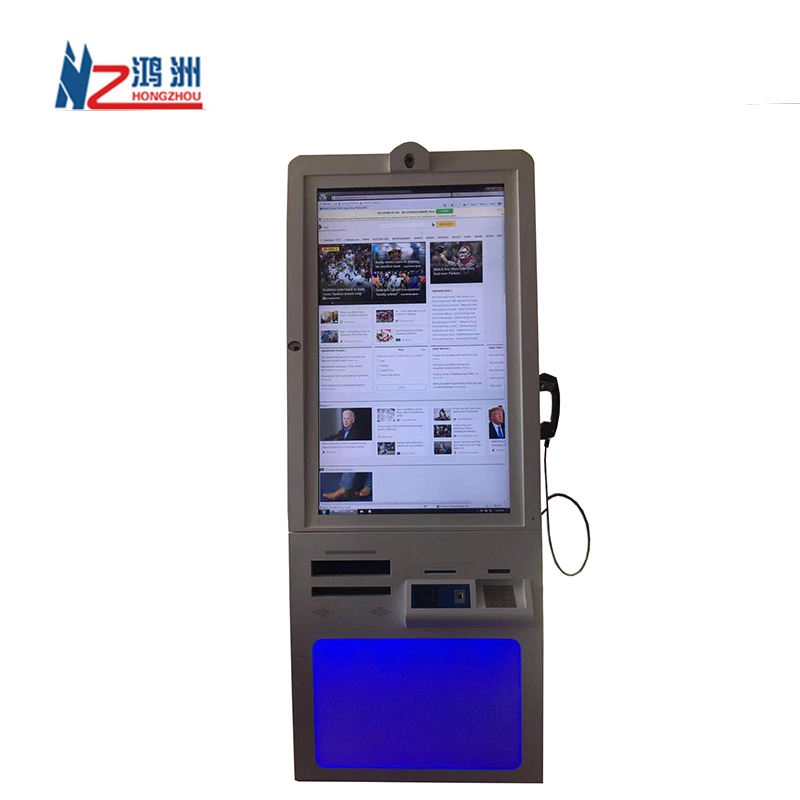

health kiosk with document scanner for hospital
health kiosk with document scanner for hospital
Overview
Quick Details
Place of Origin:
China
Brand Name:
HZ
Product Name:
Payment kiosk touch screen Cash Exchange machine
color:
OEM
Optional parts::
Barcode Reader
Touch Screen::
15/17/19/22"
Main components:
Touchscreen
Function:
Payment Terminal
Application:
Indoor
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Product Description
Components
Brand / Model
Main Specifications
Industrial PC System
Industrial PC
Mother Board
Intel H81; Integrated Network card and Graphic card
CPU
Intel i5 6200U
RAM
8GB DDR4
SSD
120G
Interface
10*USB, 6*COM, 1*SATA,1*HDMI; 1*VGA; 2*LAN; 1*AUDIO
PC Power Supply
HUNTKEY 300W
Operation System
Windows 7(without license)
Touch screen
46"
Screen Size
46 inch
Pixel Number
1920*1080
Pixel pitch
250cd/m2
Contrast
1000∶1
Display Colors
16.7M
Viewing Angle
89°/89°/89°/89°
LED Life Time
Min. 30000hrs
Touch technology
IR
Surface hardness
≥6H
Card Reader
IM500
Card Readers
Triple track MSR / EMV L1 & L2 certified
Ingress protection
IP34
Certications
PCI PTS 5.x, SRED I EMV L1 & L2, MasterCard TQM I UL I CE
FCC I RoHs ,EMV L1 & L2
PINpad
IM310
Keypad
16 Keys
Ingress protection
IP65
Certications
PCI PTS 5.x, SRED I EMV L1 & L2,MasterCard TQM I UL I CE
FCC I RoHs
Printer
KM216H
Printer Method
Thermal printing
Print width
216mm
Speed
180mm/sec(Max)
Resolution
203dpi
Print length
100KM
Autocutter
included
Barcode Scanner
7160
Image (Pixels)
640 pixels(H) x 480 pixel(V)
Light Source
Illumination: 6500K LED
Field of View
80°(H) x 64° (V)
Interfaces Supported
USB
1-D
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2-D
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
Document Scanner
Q800L
Document size
A4, A3
Pixels
8 million (3264*2448)
Output format
YUV, MJPG
Amount of distortion
<1%
Whiter balance
Auto
Camera
ZHB3-A4 *2
Sensor type
1/2.7"CMOS
Array size
1928*1088
Pixel
3.0um*3.0um
Maximum image transfer rate
1080P 30FPS
AGC/AEC/Whiter balance
Auto
Printer 80mm
Epson-MT532
Printer Method
Thermal printing
Print width
80mm
Speed
250mm/sec(Max)
Resolution
203dpi
Print length
100KM
Autocutter
included
Finger printer
ZT-998AFB-V51
Fingerprint sensor type
capacitive
Entry time
<1S
Fingerprint authentication:
support for fingerprint verification (1:1) and fingerprint search (1:N)
Interface
USB
Telephone
AFT-HS-02T
Power Supply
LRS-150-24
AC input voltage range
100‐240VAC
DC output voltage
24V
LRS-150-12
AC input voltage range
100‐240VAC
DC output voltage
12V
LED Indicator
LED indicator for document scanner
Speaker
kinter
Dual channel amplified speakers for Stereo , 8Ω 5W.
KIOSK Cabinet
Hongzhou
Dimention
decided when finish production
Color
Optional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
2.Color and LOGO are upon customers' requests.
Accessories
Security Loc ,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
Assembling and testing
Packing
Security Packing Method with Bubble Foam and Wooden Case

Other Optional hardware components List of the payment kiosk is as following:

  1. Card Reader
  2. Telephone function
  3. LED Indicator
  4. Barcode scanner
  5. Finger printer
  6. Document scanner
  7. Printer
  8. Pinpad
.
