15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

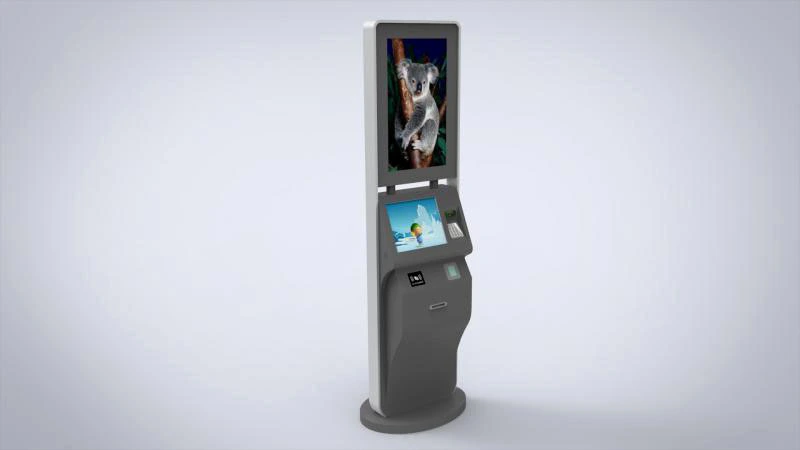

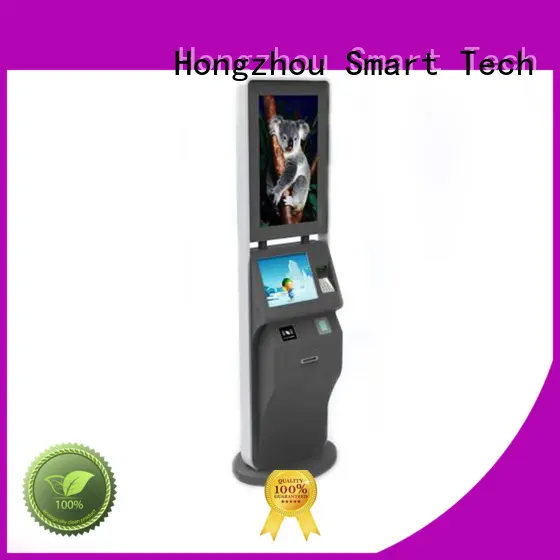

high quality ticket kiosk machine with wifi for sale Hongzhou 1

high quality ticket kiosk machine with wifi for sale Hongzhou 2

high quality ticket kiosk machine with wifi for sale Hongzhou 3

high quality ticket kiosk machine with wifi for sale Hongzhou 4

high quality ticket kiosk machine with wifi for sale Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. In Hongzhou Smart Tech Co.,Ltd, you can have multiple choices for shapes of ticket kiosk machine. With its ergonomically and compact structure, the product is user-friendly
2. High-quality personnel are hired by Hongzhou Smart Tech Co.,Ltd to ensure the first-class management. The customizable logo can be printed on this product
3. With a properly laid out electrical circuits and finely arranged components, this product is not subject to noises, such as noise caused by loose connection of components. It makes it easy to automate guest services and keep demand serviced efficiently
4. This product is time-tested. All its inner electronic parts are made of quality materials, enabling it to last for a very time. The product has optional LED lighting to add interest and visibility
5. This ruggedly handsome product is designed to resist the elements such as impact and rust, making it more time-tested. The media player can be added for valuable advertising and informational content

Components List
No	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel G3260
			RAM	4GB
			HDD	500G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY
2	Operation System		Windows 7(without license)
3	Operation panel	Auo	Screen Size	21 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG19	Screen Diagonal	19inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
6	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
7	Ticket printer	K301	Printer Method	Thermal printing
			Resolution	203 dpi
			Width	80mm
			Speed	120mm-200mm/s
			Paper thickness	0.1-0.3mm flod paper
			Automatic cutter	1,000,000 life time（All cut）
8	Camera	C170	Photosensitive element	CMOS camera
			Camera pixel	3 million
			Interface type	usb2.0,No need to drive
			Focusing mode	Autofocus
			Fold other parameters	Features snapshot button anti-theft function
9	Speaker	OP‐100	Dual channel amplified speakers for Stereo , 8Ω 5W.
10	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
11	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
11	Accessories
12	Packing	Security Packing Method with Bubble Foam and Wooden Case
12	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

high quality ticket kiosk machine with wifi for sale Hongzhou 5

Product details

high quality ticket kiosk machine with wifi for sale Hongzhou 6

Stable performance

high quality ticket kiosk machine with wifi for sale Hongzhou 7

High end appearance

Company Features
1. Favored by more and more customers, Hongzhou now gets more popular in the field of ticket kiosk machine. Our QC team has made great contributions to the improving quality of self service ticketing kiosk .
2. The strong technical force and strong R&D team are the guarantee for Hongzhou Smart Tech Co.,Ltd's continuously development.
3. Produced by advanced machine and mature technology, ticketing kiosk is of great performance. The development of all respects of company facilitates Hongzhou to be more attractive. Please contact.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
