Home  > PRODUCT  > Customized Kiosk Solution  >  High Quality Wall Mounted Coin Dispenser Self Service ATM Kiosk

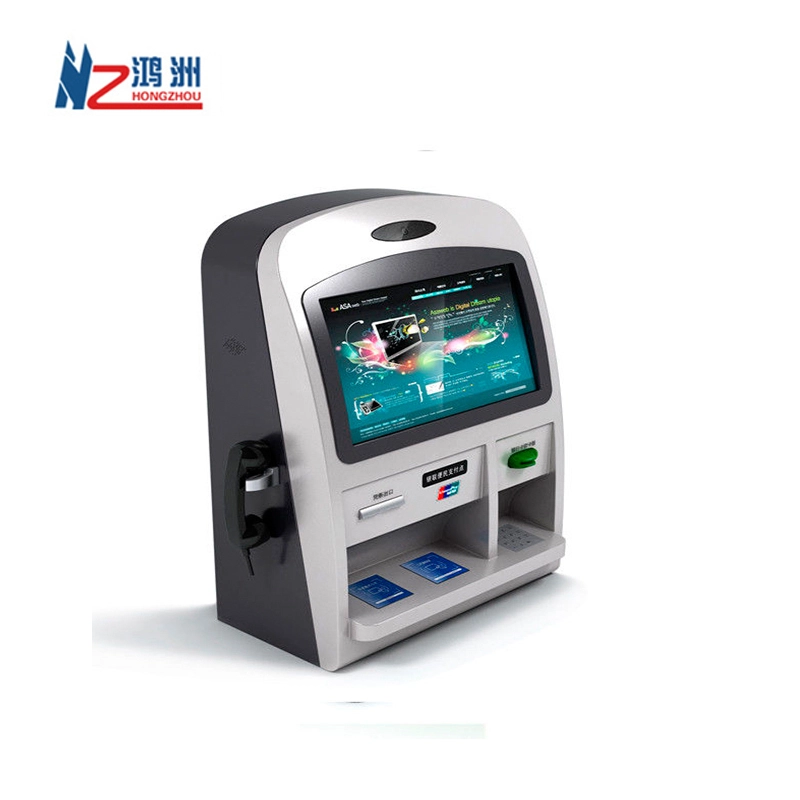

High Quality Wall Mounted Coin Dispenser Self Service ATM Kiosk
High Quality Wall Mounted Coin Dispenser Self Service ATM Kiosk
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Customized
Model Number:
HZ-KT039
Product Name:
High Quality Wall Mounted Coin Dispenser Self Service ATM Kiosk
Function:
ATM Payment Kiosk
Touch screen type:
IR Touch Screen
Application:
Indoor
Main components:
Coin Dispenser
Optional parts:
Barcode Reader
Power supply:
110-240V 50HZ/60HZ
Touch Screen:
Infrared IR Touch Screen
Kiosk color:
Customer's Request
Color:
Client's Requests
Supply Ability
Supply Ability:
1000 Unit/Units per Month

High Quality Wall Mounted Coin Dispenser Self Service ATM Kiosk

Company Information

Hongzhou, ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing a complete solution for self service Kiosks.


We have a strong self-service terminal product’s development, software support and system integration capability, and offer customized solution according to client’s individual need.
Equipped with a series of leading precision sheet metal and CNC machine tool equipment, and modern self-service terminal electronic assembly lines, our product are approved by CE, FDA,ROHS, FCC,CCC,IP65 etc.


Our self-service terminal product and solution are designed and manufactured base on lean thinking, with vertical integrated batch production capacity, low-cost structure, and outstanding customer collaboration, we are good at quick response to customer's tailor-made requirement, providing customer with one-stop self-service terminal solution.


Hongzhou high quality product and self-service terminal solution are popular both in the domestic and global markets in over 90 countries, cover financial self-service kiosk, payment kiosk, retail ordering kiosk, ticketing/card issuing kiosk, multi-media terminals, ATM/ADM/CDM, they are widely used in bank, and securities, traffic, hotel, retail, communications, medicine, cinema.

Product Description



ItemsSpecification Details
PC System (Customizable)MotherboardAdvantech/ Seavo/ Gigabyte
CPUDual core G2020, Four Core I3/ I5 /I7
RAM2GB/4GB/8GB
HDD320G/500G
Power SupplyHunt Key/Great Wall
InterfaceRS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card
Touch ScreenScreen Size17”, 19” (optional from 15” to 82”)
Screen TypeSAW, IR, Capacitive
Resolution4096x4096
FeatureHigh Transparence, Precision and Durability
MonitorScreen Size17”, 19” (optional from 15” to 82”)
Brightness300cd/m2
Contrast1000:01:00
Resolution1280x1024(1920*1080)
Kiosk CabinetMaterialCold-rolled Steel ST12 SPCC with1.5mm thickness
CoatingCar painting technology
FeatureEasy service access through front and back
Color or LogoCustomizable
PartsMultimedia speakers ,Internal ventilation system
Card ReaderCard TypeMagcard, IC Card, RF Card, Mifare Card, UL Card
InterfaceRS232/USB
Card Entry MethodSignal of Magnetic, Optoelectronic and rear card
Encrypted Pin PadKey Life Span2,000,000 cycles
Key Force2-3N
Key Trip>2.5mm
Protection LevelIP65
Bill AcceptorBrandCash Code/ MEI/ ITL/ICT
Validation RateHigh than 96%
Capacity600notes~1500notes
Thermal PrinterBrandEpson/Custom/Citizen
Auto-cutterIncluded
Width of Paper50mm/80mm/112mm
Printing Speed150mm/s
Buffer of Data4Kb
InterfaceRS232/USB
Operation SystemWindows 2000/ Windows XP/ Windows 7/ Windows 8/ Linux
Power SupplyAC Input Voltage100~240V/AC
Frequency50Hz to 60Hz
PackageSafe packing with bubble foam, in wooden case with screws
Other PeripheralA4 Printer, Coin acceptor, UPS, Wi-Fi, Web-camera, LAN port, USB port and etc
Product Uses:

Public places: Bus, Sub Way, Airport, Gas Station, Book store, Exihibition Hall, Park,

Stadium, Museum, Convention Center, Ticket agency

Business Organization:Supermarket, large-scale shopping mall, chain shops,

star-rated hotels, restaurant, travel agency, Pharmacy

Financial Organization: Banks, negotiable securities, funds, insurance company, Pawnshop

Non-profit Organization: Telecommunications, post office, hospital, school

Entertainments: Movie theaters, fitness halls, country clubs, massage room, bars, cafe,

internet bar, beauty shop, golf course



Why choose us ?
1.Professionalism in R&D and manufacturing. We are one of the very few factories in China
2 which have the ability to both design and produce touch screen kiosks.
3. Our annual production capacity is over 10000sets;
4 Perfect after sale service, fast response and repair service;
5. Have the most successful cases over almost every fields.

How could I get an quotation of payment kiosk that I need?
The following information is needed to send you the price list
1.The size of the touch screen
2. payment ways, cash or card payment
3. Quantity of sample order and whole project
4. Special requirement

Detailed Images

Production Flow

FAQ

Q1: Are you manufacturer?
A1: Yes, we're manufacturer and OEM & ODM is accepted.

Q2: What's your MOQ?
A2: One sample is available.

Q3: What's the lead time?
A3: 7~45 days

Q4: What's your guarantee for the kiosk?
A4: 1 year guarantee from the shipping date.

Q5: What is your payment methods ?
A5: T/T, L/C, Western Union, Credit Card, MoneyGram,etc.

Q6: What is transportation way?
A6: By sea,by air, by courier

Q7: What is your trading terms?
A7: EXW, FOB,CIF is our common trading terms
