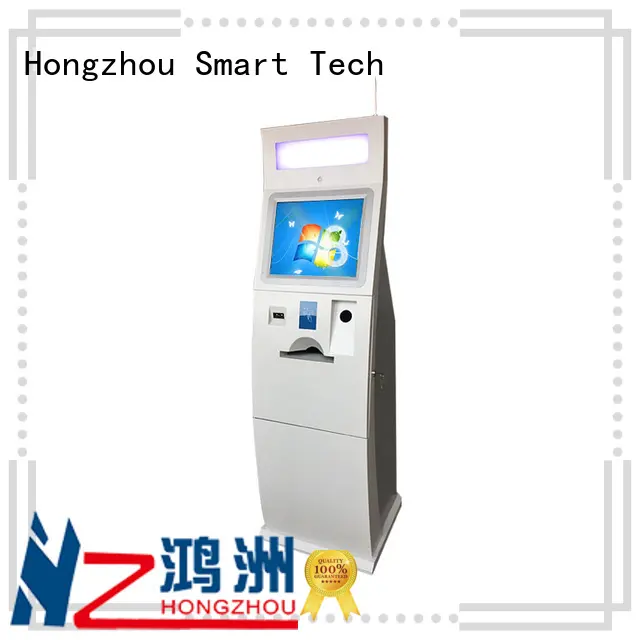

Company Advantages1. Hongzhou kiosk bill payment machine is manufactured with high-quality standards. It is tested in terms of leak resistance, lubrication, and chemical corrosion resistance to meet the requirements in the mechanical seal industry.
2. Containing no heavy metals such as lead, cadmium, and mercury that can not biodegrade, it causes no pollution to the land and water.
3. This product uses a color scheme ideal for brand identity. It expresses the identity and enhances brand awareness with customizable logo.
Components List and Price |
No | Components | Brand / Model | Main Specifications |
1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
CPU | Intel G3260 |
RAM | 4GB |
HDD | 1000G |
Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; |
PC Power Supply | HUNTKEY |
2 | Operation System |
| Windows 7(without license) |
3 | Display | Auo | Screen Size | 19 inch |
Pixel Number | 1280x1024 |
Brightness | 350cd/m2 |
Contrast | 1000∶1 |
Display Colors | 16.7M |
Viewing Angle | 85°/85°/80°/80° |
LED Life Time | Min. 40000hrs |
4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
Touch technology | Capacitive |
Touch Points | Multi-finger |
Glass Hardness | 6H |
Min.Reprot Rate | 100points/sec |
Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH |
5 | Barcode Reader | XN-202 | Imaging Sensor | 30W COMS sensor |
light source | LED |
Support Type | 1/2D barcode ,Buzzer hint |
6 | Card Reader | CRT-310 | Item name | three card one electric card reader |
Features | Support IC card / magnetic card /RF card read / write |
| Front and back card / refund card |
Speed | 70cm / s |
Card specification | Width: 53.92 ~ 54.18 mm, length: 85.47 ~ 85.90 mm |
Life | Drive: 500000 Min head: read card 500000 times, Min |
Environmental conditions | ,-10~70, /0~90%RH (without condensation) |
7 | A4 Size printer | HP M403d | Printer Method | Laser printer |
Paper processing / output | 100 page out carton |
Paper layout | Single page feed |
Speed | Up to 18 pages per minute |
Operating temperature range | 15 degrees C to 32.5 degrees C |
Power waste | 360 watt (print), 1.4 watt (ready), 0.9 watt (automatic shutdown), 0.6 watts (manual shutdown) |
Power requirements | 220 V input voltage: 220 to 240 volts alternating current (+/-10%), 50 Hz (+/-2 Hz), 6 a. |
8 | Camera | C270 | Photosensitive element | CMOS camera |
Camera pixel | 3 million |
Interface type | usb2.0,No need to drive |
Focusing mode | Autofocus |
Fold other parameters | Microphone built-in microphone,Features snapshot button anti-theft function |
9 | RFID Card Reader | CFRS-102 | Support | ID: EM4100,4200,TK4100and compatible card
IC: Mifare one s50/S70,etc |
Frequency | 125KHz,13.56MHz |
10 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
Frequency | 50Hz to 60Hz |
Output over current protection | 110~130% |
Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) |
11 | Wifi | TENDA | 300Mbps wireless transmission rate |
12 | Speaker | OP‐100 | Dual channel amplified speakers for Stereo , 8Ω 5W. |
13 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
Color | Optional by customer |
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; |
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; |
2.Color and LOGO are upon customers' requests. |
14 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. |
|
15 | Packing | Security Packing Method with Bubble Foam and Wooden Case |
|
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
※ Optional of smart POS terminal
Company Features1. Hongzhou Smart Tech Co.,Ltd's business in bill payment kiosk takes a great part in local economy.
2. We have a professional and talented design team. They address challenges with innovative designs that provide customers with a competitive edge.
3. We are committed to exploring more markets. We will strive hard to offer very competitive products for overseas clients by seeking cost-effective production approaches. We value sustainability. We spare no efforts to raise awareness of sustainability issues among our employees, material suppliers, and our customers. We put both business success and environment protection as our priority. During production, we will seek quality yet more environmental-friendly materials so as to achieve sustainable development. We have established an effective environmental management system. This allows us to innovate to improve our footprint in production.
