Company Advantages1. Excellent craftsmanship: Hongzhou payment kiosk system is crafted with excellent craftsmanship which is a result of talents and skills. Its superior craftsmanship makes it high quality.
2. The quality of the product has been greatly assured by our complete quality control system.
3. Its functional defects have been eliminated.
4. The quality assurance of automated payment kiosk may also refer to the profession of Hongzhou.
Components List |
No.1 | Components | Brand / Model | Main Specifications |
1 | Industrial PC System | Industrial PC | Mother Board | Baytrail; Integrated Network card and Graphic card |
CPU | Intel J1900 |
RAM | 4GB |
HDD | 1000G |
Interface | 8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2 |
PC Power Supply | LRS-75-24 |
2 | Operation System |
| Windows7(without license) |
3 | Display | Auo | Screen Size | 19 inch |
Pixel Number | 1280*1024 |
Brightness | 350cd/m2 |
Contrast | 1000∶1 |
Display Colors | 16.7M |
Viewing Angle | 85°/85°/80°/80° |
LED Life Time | Min. 40000hrs |
4 | Touch Screen | EG | Screen Diagonal | 19 inch |
Touch technology | Capacitive |
Touch Points | Multi-finger |
Glass Hardness | 6H |
Min.Reprot Rate | 100points/sec |
Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH |
5 | Non-contact card reader | RS102 | Name | Double frequency card reader |
Dimension | 104mm*68mm*10mm |
Support | ID: EM4100,4200,TK4100and compatible card
IC: Mifare one s50/S70,etc |
Frequency | 125KHz,13.56MHz |
Reader time | <0.5s |
Consumed Current | 70mA |
Operating Distance | 0~10cm |
Interface | USB |
Status Indication | 1pc LED |
6 | Code keyboard | KMY3501B | Mechanical property | Keyboard life: >2000000 times per key |
physical property | 4 x 4 keyboard design (10 numeric keys, 6 function keys) |
Safety characteristics | Inside the keyboard's security module, the PIN is encrypted |
Function description | Support DES and TDES encryption and decryption algorithm, PIN encryption, MAC computing |
7 | Two-dimensional code scan | 7160 | Image (Pixels) | 640 pixels(H) x 480 pixel(V) |
Light Source | Illumination: 6500K LED |
Field of View | 80°(H) x 64° (V) |
Print Contrast£º | 20% minimum reflective difference |
Interfaces Supported£º | USB , RS232 |
1-D | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
2-D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
8 | Printer | Epson-MT532 | Printer Method | Thermal printing |
Print width | 80mm |
Speed | 250mm/sec(Max) |
Resolution | 203dpi |
Print length | 100KM |
Autocutter | included |
9 | Camera | C270 | Photosensitive element | CMOS camera |
pixel | 5 million |
Built-in microphone | yes |
Maximum frame number | 30 frames / second frame |
10 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
Frequency | 50Hz to 60Hz |
Output over current protection | 110~130% |
Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) |
11 | Speaker | Kinter | Dual channel amplified speakers for Stereo , 8Ω 5W. |
12 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
Color | Optional by customer |
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; |
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; |
2.Color and LOGO are upon customers' requests. |
13 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. |
|
14 | Packing | Security Packing Method with Bubble Foam and Wooden Case |
|

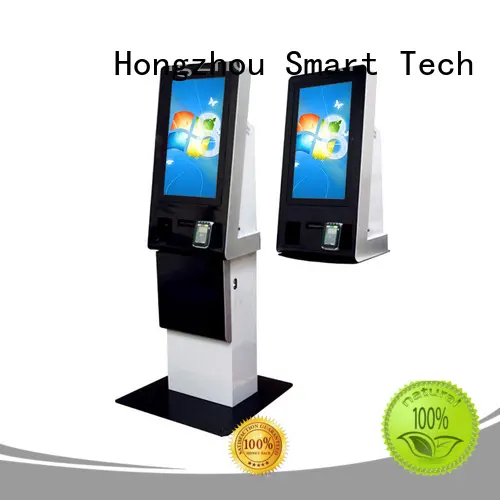

※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
※ Free standing type with sheet metal base
Company Features1. Hongzhou Smart Tech Co.,Ltd is located in one of the planet's most productive automated payment kiosk areas.
2. Hongzhou Smart Tech Co.,Ltd has high quality product development capacities.
3. Favored by more customers, Hongzhou is very confident to be a lead of pay kiosk industry. Check it! Looking forward to the future, Hongzhou Smart Tech Co.,Ltd will continue to carry forward the spirit of payment kiosk system . Check it!
