Company Advantages1. The design of Hongzhou informational kiosks is of professional. It is carried out by our designers who combine the fire protection with and high aesthetic standards.
2. Every Hongzhou product is rigorously verified for its functionality.
3. One of the benefits of this product is its full lifetime cost, including ongoing costs of maintenance and operation. It can help save a lot of money each year.
Components List |
No | Components | Brand / Model | Main Specifications |
1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
CPU | Intel G3260 |
RAM | 4GB |
HDD | 500G |
Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; |
PC Power Supply | HUNTKEY |
2 | Operation System |
| Windows 7(without license) |
3 | Operation panel | Auo | Screen Size | 19 inch |
Pixel Number | 1280x1024 |
Brightness | 350cd/m2 |
Contrast | 1000∶1 |
Display Colors | 16.7M |
Viewing Angle | 85°/85°/80°/80° |
LED Life Time | Min. 40000hrs |
4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
Touch technology | Capacitive |
Touch Points | Multi-finger |
Glass Hardness | 6H |
Min.Reprot Rate | 100points/sec |
Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH |
5 | Printer | Epson-MT532 | Printer Method | Thermal printing |
Print width | 80mm |
Speed | 250mm/sec(Max) |
Resolution | 203dpi |
Print length | 100KM |
Autocutter | included |
6 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
Frequency | 50Hz to 60Hz |
Output over current protection | 110~130% |
Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) |
7 | Card Reader | CRT-310 | Item name | three card one electric card reader |
Features | Support IC card / magnetic card /RF card read / write |
| Front and back card / refund card |
Speed | 70cm / s |
Card specification | Width: 53.92 ~ 54.18 mm, length: 85.47 ~ 85.90 mm |
Life | Drive: 500000 Min head: read card 500000 times, Min |
Environmental conditions | -10~70, /0~90%RH (without condensation) |
8 | Barcode Reader | 4100S | Imaging Sensor | 30W COMS sensor |
light source | LED |
Support Type | 1/2D barcode ,Buzzer hint |
9 | Speaker | OP‐100 | Dual channel amplified speakers for Stereo , 8Ω 5W. |

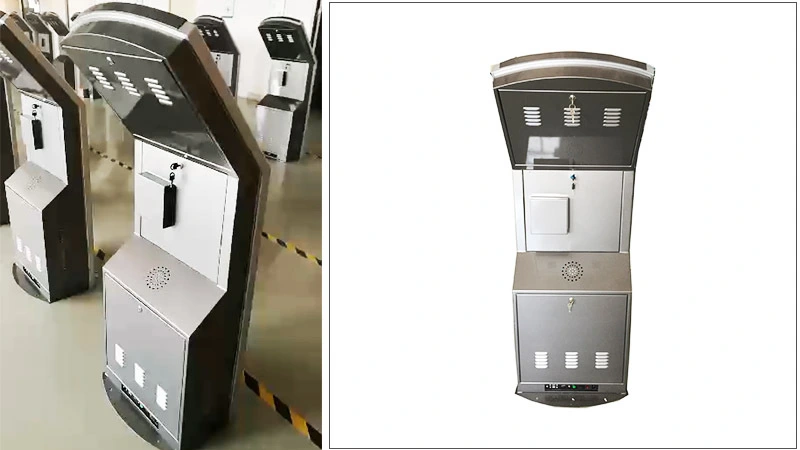

10 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
Color | Optional by customer |
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; |
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; |
2.Color and LOGO are upon customers' requests. |

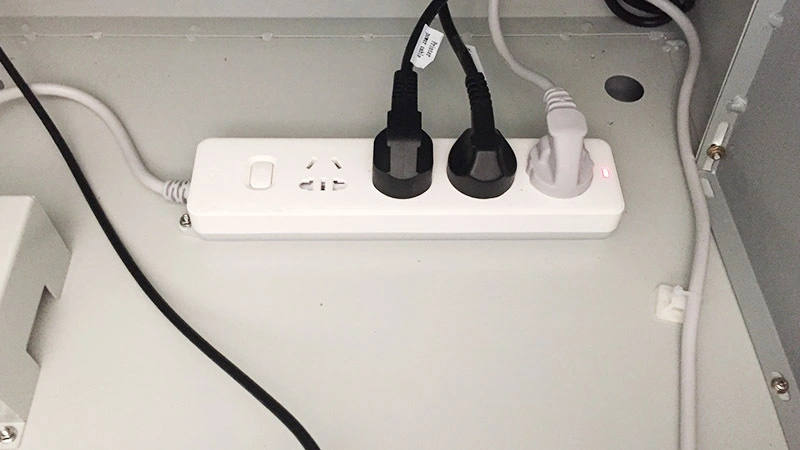

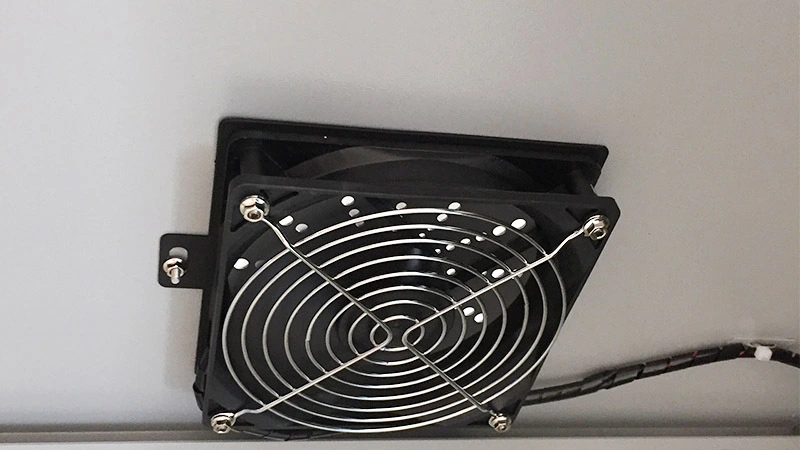

11 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. |
|
12 | Packing | Security Packing Method with Bubble Foam and Wooden Case |
|
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental0000000
※ Surface treatment is car oil painting
