15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

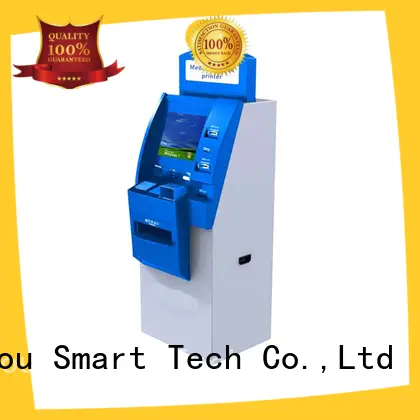

Hongzhou hospital kiosk metal in hospital 1
Hongzhou hospital kiosk metal in hospital 2
Hongzhou hospital kiosk metal in hospital 3
Hongzhou hospital kiosk metal in hospital 4
Hongzhou hospital kiosk metal in hospital 1
Hongzhou hospital kiosk metal in hospital 2
Hongzhou hospital kiosk metal in hospital 3
Hongzhou hospital kiosk metal in hospital 4

Hongzhou hospital kiosk metal in hospital

Start port:
Shenzhen
Shipping:
DHL, Fedex, UPS, TNT; By Sea
Payment:
T/T, L/C, Western Union, Paypal, MoneyGram
Packing:
PE bag+Carton+Pallet, Custom
MOQ:
1-500 units
Dimensions/Thickness/Color:
Custom
Delivery time:
3-4 weeks for prototype,3-4 weeks for mass production
Certifications:
ISO9001,CCC
Inquiry
Company Advantages
1. We maintain the highest level of product structure from the initial phase of Hongzhou patient registration kiosk development.
2. This kind of product enjoys the characters of light material, high strength, high-temperature resistance and a kind of ultra-thin.
3. As long as our customers have questions about our hospital kiosk , Hongzhou Smart Tech Co.,Ltd will make timely response.
 Components List
No.ComponentsBrand / ModelMain Specifications
1Industrial PC SystemIndustrial PCMother BoardIntel H81; Integrated Network card and Graphic card
CPUIntel I3 4130
RAM4GB
HDD120G
Interface14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power SupplyHUNTKEY400W
2Operation System
Windows 7(without license)
3Display21.5"Screen Size21.5 inch
Pixel Number1920*1080
Brightness250cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 178(H), 178(V)
LED Life Time Min. 40000hrs
4Touch Screen21.5"Screen Diagonal19 inch
Touch technologycapacitance
Touch PointsMulti-finger
Glass Hardness6H
Min.Reprot Rate100points /sec
Operation Conditions12MHz
5Card ReaderM100-CCard typeSupport magnetic card read only, IC card read and write, RF card read and write,
Protocol standard Suit ISO07810 7811 standard,EMV、7816,S50/S70、ID card
Card inMagnetic signal, photoelectric signal, backward card
Stop screensMulti-stop card
Head lifeNot less than 1 million
6Password keyboardKMY3501BPanel4*4 16 key stainless steel panel
Encryption algorithmSupport DES and TDES encryption, decryption algorithm, PIN encryption, MAC operation
Level of protectionDustproof, waterproof, anti-riot, shockproof, anti-drilling, anti-pry
CertificationThrough CE, FCC, ROHS certification, through the people's bank of China bank card testing center testing
7

Second generation

 ID card reader

IDM10 or INVS300Standard specification

It meets the ISO/IEC 14443 TYPE B standard and the general technical requirements for id card reading from

 GA 450-2013

Card reading response speed<1S
Reading distance0-30mm
Working frequency 13.56MHz
Data interface USB , RS232
8PrinterMT532Printer MethodThermal printing
Print width80mm
Speed250mm/sec(Max)
Resolution203dpi
Print length100KM
Autocutterincluded
9Qr code scanning7160N or Honeywell CM3680Barcode 1-D

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey,

 GS1 DataBar, China Postal, Korean Postal, etc.

Two-dimensional bar codePDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
Voltage5VDC
Interface supportUSB , RS232
The light sourceIllumination: 6500K LED
10

Health card/social security

 card reader simulation mode,

 social security docking

M100-DRead the card typeSupport magnetic card read only, IC card read and write, RF card read and write,
Protocol standardConform to ISO07810 7811 standard, EMV, 7816, S50/S70, ID card
Way into the cardMagnetic signal, photoelectric signal, backward card
Stop screensMulti-stop card
Head lifeNot less than 1 million
11A4  printerJINGCI 2135DPrinter modeA4 black and white laser printer
The resolution of theAs high as 600 x600dpi
The printing speed35 pages per minute
Into the cartonStandard 250 paper cartons
The power supply voltageAC 220-240V(±10%),50/60Hz(±2Hz),
12Social security card readerT6Contact IC cardSupport contact IC card in accordance with ISO7816 standard;
Card lifeAt least 200,000 times
encryptionoptional
Communication methodsSupport USB interface communication (HID driver free technology);RS232 serial communication
Follow the standardISO7816、PC/SC、GSM11.11、FCC、CE。
13fingerprintsLD-9900-MTAcquisition window size20.6*25.1mm
Image size256*288 pixel
Image resolution500DPI
Storage capacity1000 PCS
Search time<1.0 seconds (mean value at 1:1000)
Security levelLevel 5 (from low to high: 1, 2, 3, 4, 5)
14Surveillance cameraC270The sensorCMOS camera
Camera pixels3 million
Interface typeUsb2.0, no driver required
Focused modeautofocus
The other parametersMicrophone built-in microphone, features snapshot button anti-theft function
15

Banknote surveillance

 camera

XY-HDE3134CHP4The sensor1/3" SONY CCD
Camera pixels700 lines of color,

Backlight compensation, automatic gain, white balance adjustable
16Invoice printingMS-512I-URWay of print9-pin serial impact point formula
Print speed (Max)4.0LPS(420 points/line)
Print width (Max)420(half point)/210(full point)
The print directionPrint both sides (with logical search)
Paper size (width)76.2+0.5mm
Paper roll typeContinuous paper, marking paper
17

Medical card issuing

 machine

K100Function

Read and write a variety of contact IC CARDS, read and write in accordance with ISO1443 specification

TYPEA, TYPEB non-contact card protocol

Hopper capacityCalculated according to the thickness of 0.76mm, 130 pieces of standard type
Card Requirements

54 ± 0.5 mm legnth : 85 ± 0.5 mm thickness: 0.2 – 2.0mm Applicable card materials: all kinds of paper CARDS

or polyester CARDS

Smart alert statusThis product supports the alarm function of less card, empty card and full recycle box.
Certification

Through the people's bank of China PBOC3.0 and the United States underwriters testing institute UL and other products certification

18Notes to receiveNV200Paper sizeWidth: 60-85mm, length: 115-170mm
Cashbox capacity1000 notes
May accept RMB face value1、5、10、20、50、100
The money numberSingle
Receiving rate99% above
1912V power supplyLRS-150-12*2The input voltage100‐240VAC
The output voltage24V
Frequency range50Hz to 60Hz
Output overcurrent protection110~130%
Operating temperature.humidity‐10 + 50,20~90%RH
2024V power supplyLRS-75-24The input voltage100‐240VAC
The output voltage24V
Frequency range50Hz to 60Hz
Output overcurrent protection110~130%
Operating temperature.humidity‐10 + 50,20~90%RH
21SpeakerkinterDual channel amplified speakers for Stereo , 8Ω 5W.
22KIOSK Cabinet  HongzhouDimentiondecided when finish production
ColorOptional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
3.Color and LOGO  are upon customers' requests.
23AccessoriesSecurity Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
24PackingSecurity Packing Method with Bubble Foam and Wooden Case


Product features


※  Innovative & smart design, elegant looking, anti-corrosion power coating

※  Ergonomically and compact structure, user friendly, easy for maintenance

※  Anti-vandalism, dust-proof, high safety performance

※  Rugged steel frame and overtime running, high precision, high stability & reliability

※  Cost-effective, customer-oriented design, the applicable environmental

Hongzhou hospital kiosk metal in hospital 5


Product details


Hongzhou hospital kiosk metal in hospital 6
Stable performance
Hongzhou hospital kiosk metal in hospital 7
High end appearance



Company Features
1. Hongzhou Smart Tech Co.,Ltd has long been a pioneer in hospital kiosk quality and innovation.
2. hospital check in kiosk is well recognized by its quality.
3. Our company’s values drive us to provide products responsibly while protecting the environment and working with our partners to strengthen communities. To gain more than 20% growth in the next year is our goal and what we pursue. We are enhancing research and development capability that we can count on to grow and expand.
