| No. | Component | Brand | Specification | |
| 1 | Industrial PC | Industrial PC | PC | Baytrail; Integrated Network card and Graphic card |
| CPU | Intel J1900 | |||
| RAM | 4GB | |||
| HDD | 1000G | |||
| Connector | 8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2 | |||
| PC Supply | llano(12V5A) | |||
| 2 | System | Windows 7 (without license) | ||
| 3 | Monitor | Auo | Size | 15.6 inch |
| Rate | 16:：9 | |||
| Brightness | 250cd/m2 | |||
| Contrast | 1000∶1 | |||
| Color | 16.7M | |||
| Angle | 85°/85°/80°/80° | |||
| Life time | Min. 40000hrs | |||
| 4 | Touch screen | EG | Screen size | 15.6 inch |
| Type | Capacitive | |||
| Touch point | Multi finger | |||
| Hardness | 6H | |||
| Min. Reprot | 100points /second | |||
| Oscillation frequency | 12MHz | |||
| 5 | RFID card reader/ID card reader | Customzied | ||
| 7 | Camera | C310 | pixel count | More than 5,000,000 |
| Camera resolution | 1280 x 720 | |||
| Definition | High definition | |||
| Built-in microphone | Yes | |||
| Maximum number of frames | 30 frames/ second frames | |||
| 8 | Supply | RD-125-1224 | Working | 100‐240VAC |
| Frequency range | 50Hz to 60Hz | |||
| Output overcurrent protection | 110~130% | |||
| Operating temperature. humidity | ‐10 + 50,20～90%RH | |||
| 9 | Loudspeaker | OP‐100 | Dual channel amplifier speaker stereo, 8 Ω 5 w. | |
| 10 | Cabinet | HZ | Size | According to actual function and effect drawing, accord with ergonomics |
| Color | Customer can choose the color according to the aesthetic requirement | |||
| 1.The material of the outer metal cabinet is a durable cold-rolled steel frame | ||||
| 2. The design is beautiful and generous, easy to install and operate.Moistureproof, Antirust, acid proof, dustproof, static electricity; | ||||
| 3.The logo is based on the customer's requirements. | ||||
| 11 | Accessories | Security lock, tray, easy maintenance, 2 fan, line LAN port;Power sockets, relays, USB ports, cables, screws, etc. | ||
| 12 | Packaging | Bubble foam and carton safety packaging | ||
Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental

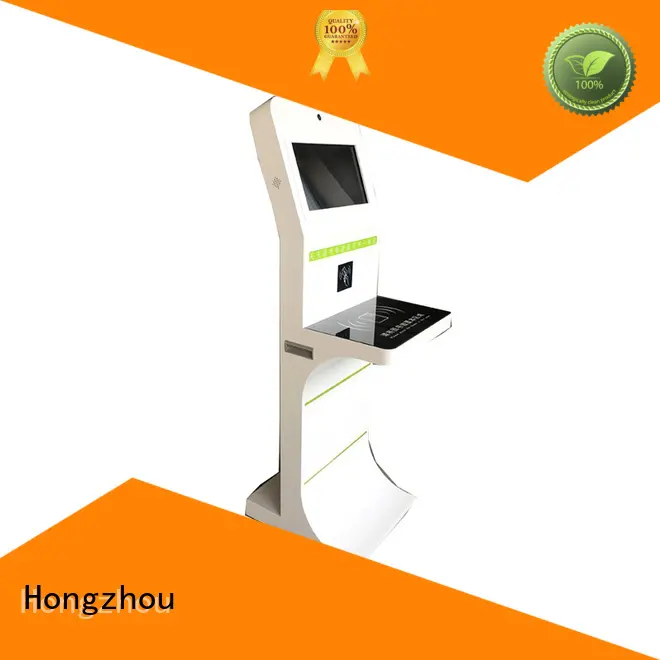

Product details
