15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

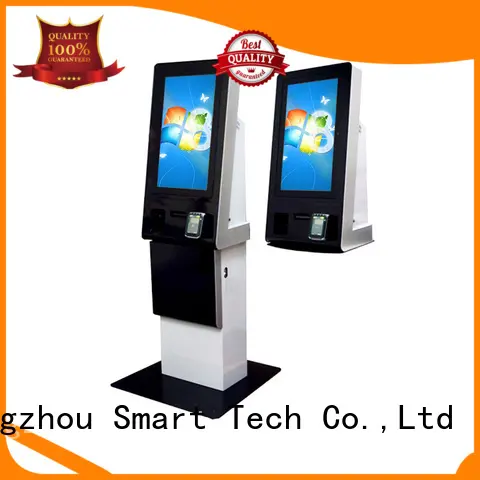

Hongzhou screen self service payment kiosk manufacturer machine in bank 1
Hongzhou screen self service payment kiosk manufacturer machine in bank 2
Hongzhou screen self service payment kiosk manufacturer machine in bank 3
Hongzhou screen self service payment kiosk manufacturer machine in bank 4
Hongzhou screen self service payment kiosk manufacturer machine in bank 1
Hongzhou screen self service payment kiosk manufacturer machine in bank 2
Hongzhou screen self service payment kiosk manufacturer machine in bank 3
Hongzhou screen self service payment kiosk manufacturer machine in bank 4

Hongzhou screen self service payment kiosk manufacturer machine in bank

Start port:
Shenzhen
Shipping:
Door to door via express: DHL, Fedex, UPS, TNT; By Sea
Payment:
T/T, L/C, Western Union, Paypal, MoneyGram
Packing:
PE bag+Carton+Pallet, Custom
MOQ:
1-500 units
Dimensions/Thickness/Color:
Custom
Delivery time:
3-4 weeks for prototype,3-4 weeks for mass production
Certifications:
ISO9001,CCC
Inquiry
Company Advantages
1. The current international advanced surface treatment technology is used for Hongzhou kiosk payment terminal production.
2. This product has excellent performance, durable and easy to use.
3. Hongzhou Smart Tech Co.,Ltd has established a strict quality guarantee system and obtained a few related quality guarantee certifications as well.
Components List
No.1ComponentsBrand / ModelMain Specifications
1Industrial PC SystemIndustrial PCMother BoardBaytrail; Integrated Network card and Graphic card
CPUIntel J1900
RAM4GB
HDD1000G
Interface8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2
PC Power SupplyLRS-75-24
2Operation System
Windows7(without license)
3DisplayAuoScreen Size19 inch
Pixel Number1280*1024
Brightness350cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 85°/85°/80°/80°
LED Life Time Min. 40000hrs
4Touch ScreenEGScreen Diagonal19 inch
Touch technologyCapacitive
Touch PointsMulti-finger
Glass Hardness6H
Min.Reprot Rate100points/sec
Operation Conditions-40°C~+85°C at Min 20% to Max 90%RH
5Non-contact card readerRS102NameDouble frequency card reader
Dimension104mm*68mm*10mm
SupportID: EM4100,4200,TK4100and compatible card
       IC: Mifare one s50/S70,etc
Frequency125KHz,13.56MHz
Reader time<0.5s
Consumed Current70mA
Operating Distance0~10cm
InterfaceUSB
Status Indication1pc LED
6Code keyboardKMY3501BMechanical propertyKeyboard life: >2000000 times per key
physical property4 x 4 keyboard design (10 numeric keys, 6 function keys)
Safety characteristicsInside the keyboard's security module, the PIN is encrypted
Function descriptionSupport DES and TDES encryption and decryption algorithm, PIN encryption, MAC computing
7Two-dimensional code scan7160 Image (Pixels)640 pixels(H) x 480 pixel(V)
Light SourceIllumination: 6500K LED
Field of View80°(H) x 64° (V)
Print Contrast£º20% minimum reflective difference
Interfaces Supported£ºUSB , RS232
1-DUPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
       Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
2-DPDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
8PrinterEpson-MT532Printer MethodThermal printing
Print width80mm
Speed250mm/sec(Max)
Resolution203dpi
Print length100KM
Autocutterincluded
9CameraC270Photosensitive elementCMOS camera
pixel5 million
Built-in microphoneyes
Maximum frame number30 frames / second frame
10Power SupplyRD-125-1224AC input voltage range100‐240VAC
Frequency50Hz to 60Hz
Output over current protection 110~130%
Operating temp. & humidity‐10~+50,20%~90%RH (noncondensing)
11SpeakerKinterDual channel amplified speakers for Stereo , 8Ω 5W.
12KIOSK CabinetHongzhouDimentiondecided when finish production
ColorOptional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
2.Color and LOGO  are upon customers' requests.
13AccessoriesSecurity Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
14PackingSecurity Packing Method with Bubble Foam and Wooden Case


Product features


※  Innovative & smart design, elegant looking, anti-corrosion power coating

※  Ergonomically and compact structure, user friendly, easy for maintenance

※  Anti-vandalism, dust-proof, high safety performance

※  Rugged steel frame and overtime running, high precision, high stability & reliability

※  Cost-effective, customer-oriented design, the applicable environmental

※  Free standing type with sheet metal base

Hongzhou screen self service payment kiosk manufacturer machine in bank 5


Product details


Hongzhou screen self service payment kiosk manufacturer machine in bank 6
Stable performance
Hongzhou screen self service payment kiosk manufacturer machine in bank 7
High end appearance



Company Features
1. Hongzhou will continue to lead the kiosk payment terminal industry in the future.
2. There is a dedicated and professional design team in Hongzhou Smart Tech Co.,Ltd.
3. If you come, Hongzhou Smart Tech Co.,Ltd will make our utmost to serve you well. Ask! Our dedication to offering the most professional service will make a difference to the development of Hongzhou. Ask! Hongzhou Smart Tech Co.,Ltd takes 'quality is the life of an enterprise' as its business philosophy. Ask!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
