15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

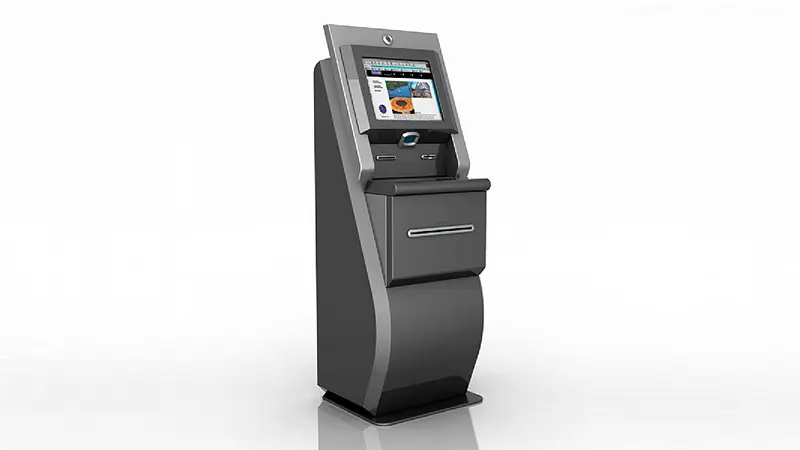

Hongzhou self service ticketing kiosk with printer on bus station 1

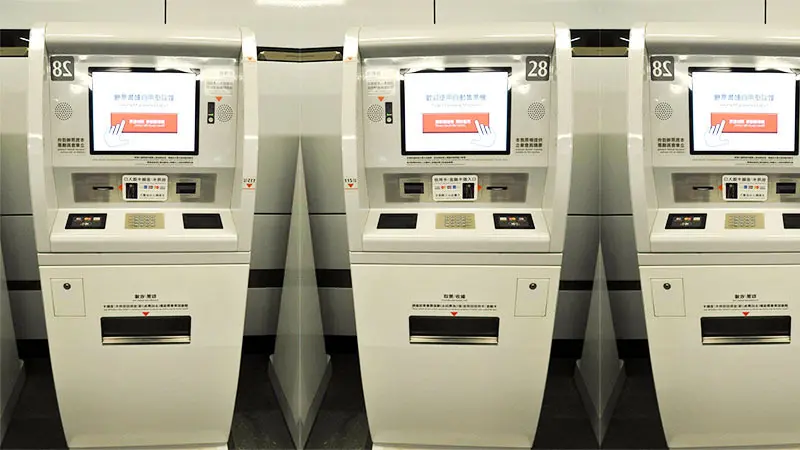

Hongzhou self service ticketing kiosk with printer on bus station 2

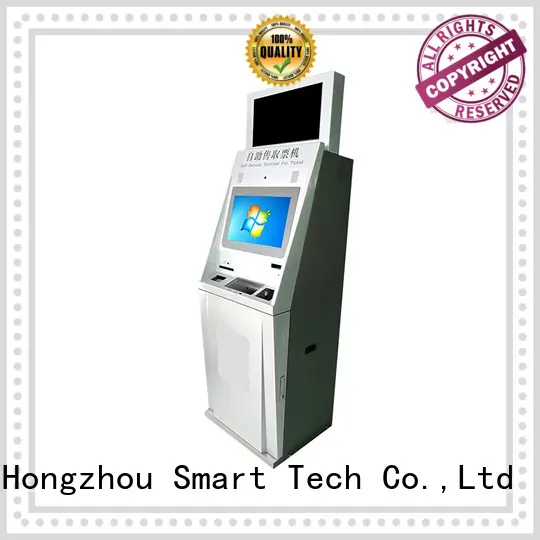

Hongzhou self service ticketing kiosk with printer on bus station 3

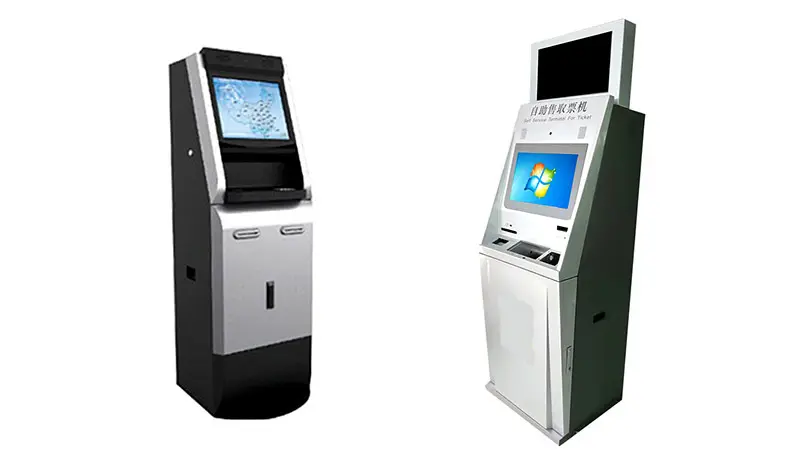

Hongzhou self service ticketing kiosk with printer on bus station 4

Hongzhou self service ticketing kiosk with printer on bus station

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Hongzhou self service ticketing kiosk reflects a creative design and is manufactured under the supervision of experienced and dedicated professionals.
2. This product has electromagnetic compatibility. It has passed EMC testing for verifying its ability to withstanding EM energy which may occur within its operational environment.
3. Innovation is the Gene of Hongzhou Smart Tech Co.,Ltd.

Components List
No	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel G3260
			RAM	4GB
			HDD	500G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY
2	Operation System		Windows 7(without license)
3	Operation panel	Auo	Screen Size	21 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG19	Screen Diagonal	19inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
6	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
7	Ticket printer	K301	Printer Method	Thermal printing
			Resolution	203 dpi
			Width	80mm
			Speed	120mm-200mm/s
			Paper thickness	0.1-0.3mm flod paper
			Automatic cutter	1,000,000 life time（All cut）
8	A4 Size printer	HP M403d	Printer Method	Laser printer
			Paper processing / output	100 page out carton
			Paper layout	Single page feed
			Speed	Up to 18 pages per minute
			Operating temperature range	15 degrees C to 32.5 degrees C
			Power waste	360 watt (print), 1.4 watt (ready), 0.9 watt (automatic shutdown), 0.6 watts (manual shutdown)
			Power requirements	220 V input voltage: 220 to 240 volts alternating current (+/-10%), 50 Hz (+/-2 Hz), 6 a.
9	Camera	C170	Photosensitive element	CMOS camera
			Camera pixel	3 million
			Interface type	usb2.0,No need to drive
			Focusing mode	Autofocus
			Fold other parameters	Features snapshot button anti-theft function
10	RFID Card Reader	CFRS-102	Support	ID: EM4100,4200,TK4100and compatible card IC: Mifare one s50/S70,etc
11			Frequency	125KHz,13.56MHz
12	Speaker	OP‐100	Dual channel amplified speakers for Stereo , 8Ω 5W.
13	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
14	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
14	Accessories
15	Packing	Security Packing Method with Bubble Foam and Wooden Case
15	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

Hongzhou self service ticketing kiosk with printer on bus station 5

Product details

Hongzhou self service ticketing kiosk with printer on bus station 6

Stable performance

Hongzhou self service ticketing kiosk with printer on bus station 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd is a market leader in self service ticketing kiosk market at home and abroad.
2. Our professional personnel engaged in manufacturing is the strength of our business. They are responsible for designing, manufacturing, testing, and quality control for years.
3. We have a clear market positioning. We are determined to become the leader in the industry. From now on, we will actively grasp the emerging product concepts and innovative technologies to optimize our products and strengthen our capabilities. We promote collaborative efforts through business cooperation in protecting the environment. We will conduct environmental impact assessments for each other, making sure all of our practices are in line with the environmental legislations.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
