15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

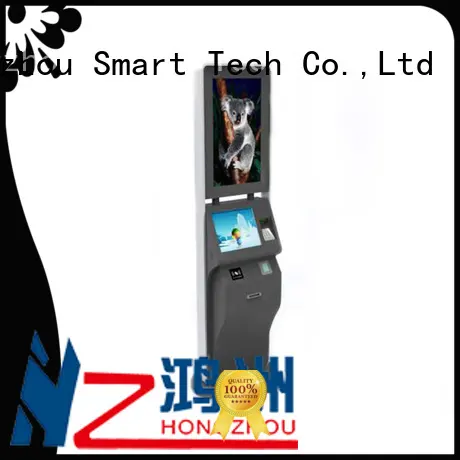

Hongzhou ticket machine manufacturer on bus station 1

Hongzhou ticket machine manufacturer on bus station 2

Hongzhou ticket machine manufacturer on bus station 3

Hongzhou ticket machine manufacturer on bus station 4

Hongzhou ticket machine manufacturer on bus station

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. The material for ticketing kiosk is of high quality.
2. ticketing kiosk ticket machine is dimensionally accurate thanks to the adoption of lean production method.
3. Our QC team implements strict quality control to ensure the high quality of this product.
4. Hongzhou Smart Tech Co.,Ltd has established perfect customer service.

Components List
No	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel G3260
			RAM	4GB
			HDD	500G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY
2	Operation System		Windows 7(without license)
3	Operation panel	Auo	Screen Size	21 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG19	Screen Diagonal	19inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
6	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
7	Ticket printer	K301	Printer Method	Thermal printing
			Resolution	203 dpi
			Width	80mm
			Speed	120mm-200mm/s
			Paper thickness	0.1-0.3mm flod paper
			Automatic cutter	1,000,000 life time（All cut）
8	Camera	C170	Photosensitive element	CMOS camera
			Camera pixel	3 million
			Interface type	usb2.0,No need to drive
			Focusing mode	Autofocus
			Fold other parameters	Features snapshot button anti-theft function
9	Speaker	OP‐100	Dual channel amplified speakers for Stereo , 8Ω 5W.
10	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
11	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
11	Accessories
12	Packing	Security Packing Method with Bubble Foam and Wooden Case
12	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

Hongzhou ticket machine manufacturer on bus station 5

Product details

Hongzhou ticket machine manufacturer on bus station 6

Stable performance

Hongzhou ticket machine manufacturer on bus station 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd’s products can be widely used in many fields, such as ticket machine .
2. Hongzhou Smart Tech Co.,Ltd has updated technology to improve ticketing kiosk quality and process technology.
3. We have teams of capable talents. These professionals are drawing from different disciplines and functional units. They bring specialized expertise to customers' projects. We are marching forwards a more environmental-friendly and greener production way. We promise to eliminate any practices that will harm society and our environment. For example, during production, the waste will be carefully handled by our QC team. We always adhere to the philosophy of developing together with our society. We adopt a sustainable development plan and re-adjust the industrial structure so as to protect our environment and conserve resources. Inquire online! The mission of our company is to provide quality products at reasonable prices, always in a manner that is aligned with existing market demands. Inquire online!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
