| Components List | ||||
| No. | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel I3 4130 | |||
| RAM | 4GB | |||
| HDD | 120G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | HUNTKEY400W | |||
| 2 | Operation System | Windows 7(without license) | ||
| 3 | Display | 21.5" | Screen Size | 21.5 inch |
| Pixel Number | 1920*1080 | |||
| Brightness | 250cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 178(H), 178(V) | |||
| LED Life Time | Min. 40000hrs | |||
| 4 | Touch Screen | 21.5" | Screen Diagonal | 19 inch |
| Touch technology | capacitance | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points /sec | |||
| Operation Conditions | 12MHz | |||
| 5 | Card Reader | M100-C | Card type | Support magnetic card read only, IC card read and write, RF card read and write, |
| Protocol standard | Suit ISO07810 7811 standard，EMV、7816，S50/S70、ID card | |||
| Card in | Magnetic signal, photoelectric signal, backward card | |||
| Stop screens | Multi-stop card | |||
| Head life | Not less than 1 million | |||
| 6 | Password keyboard | KMY3501B | Panel | 4*4 16 key stainless steel panel |
| Encryption algorithm | Support DES and TDES encryption, decryption algorithm, PIN encryption, MAC operation | |||
| Level of protection | Dustproof, waterproof, anti-riot, shockproof, anti-drilling, anti-pry | |||
| Certification | Through CE, FCC, ROHS certification, through the people's bank of China bank card testing center testing | |||
| 7 | Second generation ID card reader | IDM10 or INVS300 | Standard specification | It meets the ISO/IEC 14443 TYPE B standard and the general technical requirements for id card reading from GA 450-2013 |
| Card reading response speed | <1S | |||
| Reading distance | 0-30mm | |||
| Working frequency | 13.56MHz | |||
| Data interface | USB , RS232 | |||
| 8 | Printer | MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 9 | Qr code scanning | 7160N or Honeywell CM3680 | Barcode 1-D | UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
| Two-dimensional bar code | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. | |||
| Voltage | 5VDC | |||
| Interface support | USB , RS232 | |||
| The light source | Illumination: 6500K LED | |||
| 10 | Health card/social security card reader simulation mode, social security docking | M100-D | Read the card type | Support magnetic card read only, IC card read and write, RF card read and write, |
| Protocol standard | Conform to ISO07810 7811 standard, EMV, 7816, S50/S70, ID card | |||
| Way into the card | Magnetic signal, photoelectric signal, backward card | |||
| Stop screens | Multi-stop card | |||
| Head life | Not less than 1 million | |||
| 11 | A4 printer | JINGCI 2135D | Printer mode | A4 black and white laser printer |
| The resolution of the | As high as 600 x600dpi | |||
| The printing speed | 35 pages per minute | |||
| Into the carton | Standard 250 paper cartons | |||
| The power supply voltage | AC 220-240V(±10％)，50/60Hz(±2Hz), | |||
| 12 | Speaker | kinter | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 13 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 3.Color and LOGO are upon customers' requests. | ||||
| 14 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 15 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
※ Multifunction for payment, print and inquiry

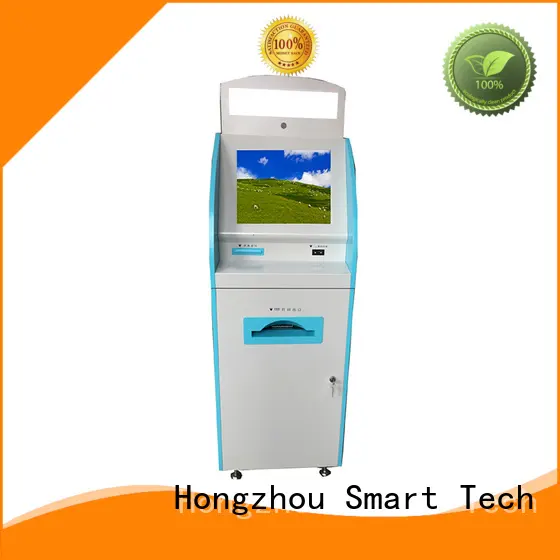

Product details
