| Components List | ||||
| No | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel G3260 | |||
| RAM | 4GB | |||
| HDD | 500G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | HUNTKEY | |||
| 2 | Operation System | Windows 7(without license) | ||
| 3 | Operation panel | Auo | Screen Size | 21 inch |
| Pixel Number | 1280x1024 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 40000hrs | |||
| 4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
| Touch technology | Capacitive | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points/sec | |||
| Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH | |||
| 5 | Printer | Epson-MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 6 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
| Frequency | 50Hz to 60Hz | |||
| Output over current protection | 110~130% | |||
| Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) | |||
| 7 | Ticket printer | K301 | Printer Method | Thermal printing |
| Resolution | 203 dpi | |||
| Width | 80mm | |||
| Speed | 120mm-200mm/s | |||
| Paper thickness | 0.1-0.3mm flod paper | |||
| Automatic cutter | 1,000,000 life time（All cut） | |||
| 8 | Camera | C170 | Photosensitive element | CMOS camera |
| Camera pixel | 3 million | |||
| Interface type | usb2.0,No need to drive | |||
| Focusing mode | Autofocus | |||
| Fold other parameters | Features snapshot button anti-theft function | |||
| 9 | Speaker | OP‐100 | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 10 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 11 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 12 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
Product features
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental

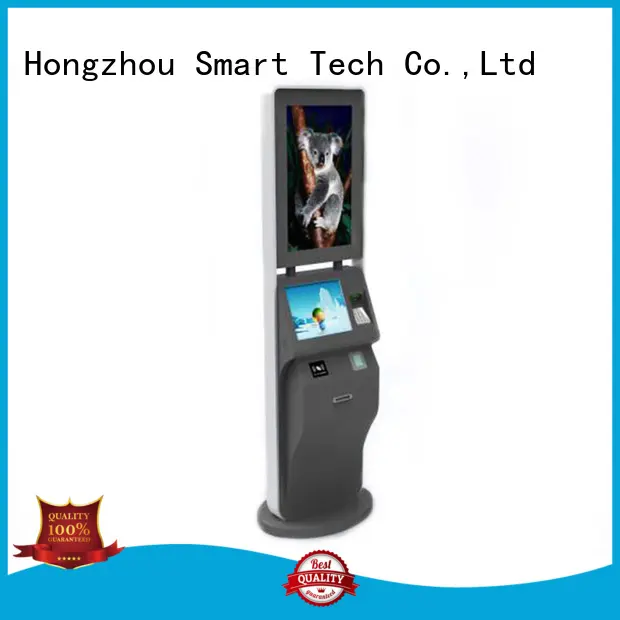

Product details
