Hongzhou Smart - 15+ Years Leading OEM & ODM

kiosk turnkey solution manufacturer

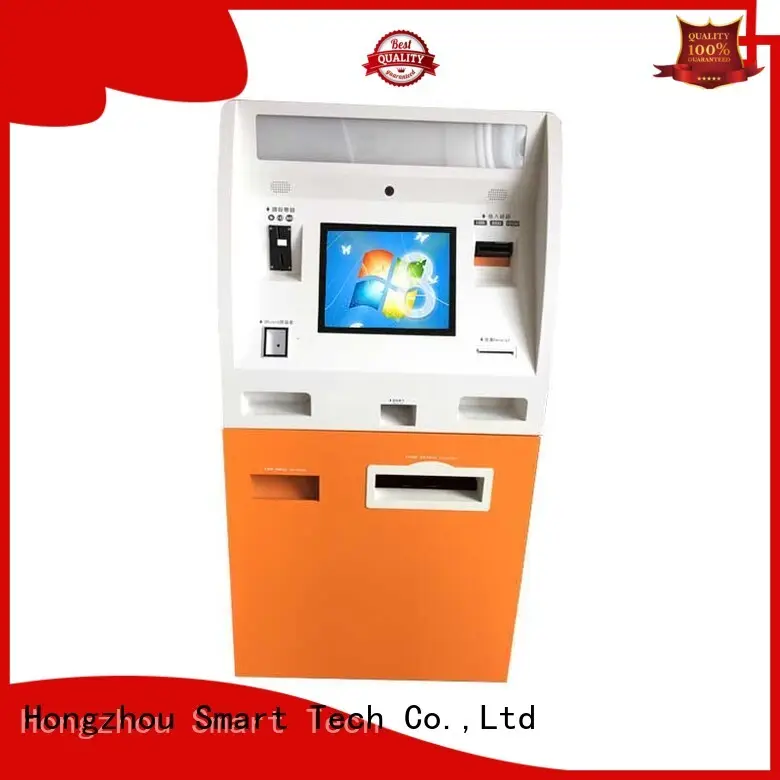

Hongzhou wall mounted cash payment kiosk in hotel 1

Hongzhou wall mounted cash payment kiosk in hotel 2

Hongzhou wall mounted cash payment kiosk in hotel 3

Hongzhou wall mounted cash payment kiosk in hotel 4

Hongzhou wall mounted cash payment kiosk in hotel

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. The use of high quality materials and innovative designs gives the user of kiosk payment terminal excellent performance and long service life.
2. This product features excellent mechanical strength and reliable electrical contact, which are guaranteed by its finely component soldering.
3. This product is less likely to generate harmful electromagnetic rays which may cause diseases such as headache, diabetes, or even cancers.
4. The product is able to be used in a variety of applications.

Components List
No	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel i5
			RAM	8 GB
			SSD	2000G (double hard disk）
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY
2	Operation System		Windows 7(without license)
3	Display	Auo	Screen Size	17 inch
			Pixel Number	1280x1024
			Brightness	250cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			LED Life Time	Min. 30000hrs
4	Touch screen	EG	Screen Diagonal	17 inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	12MHz
5	Printer	NV200	Print width	62mm - 77mm
			Print length	160 mm, The length of the optional 180 mm
			Cashbox capacity	1000 note
			Note receiving speed	2.5 seconds
			acceptance rate	98% or higher
			Global monetary support	Monetary support from more than 35 countries
6	COINS to receive	G13	Security	The highest coin security verification USES a unique multi-frequency technology
				The 24 measurement parameters were also evaluated for 32 coin channels
				Contains a dispenser
			Flexibility	Up to 8 COINS for learning function
7	Coin change	MK2 3pcs Hopper	Specifications	With coin return motor
				3 coin change
				Each coin has a storage capacity of about 500
			Communication interface	serial port RS232
8	Note the change	CDM-4000	Function	With the change function of paper money
			The printing speed	4 / sec
			Cashbox number	2 PCS
			Cashbox capacity	1000 note/pc
			Characteristic	The products have high reliability and durability, used for self-payment machines, self-service lottery machines, mini atms and other terminal equipment
9	Qr code scanning	EP5000	Imaging sensor	960*680 COMS
			floodlight	Decoding bright
			Support types	QR code
10	Receipt printer	MT532	Print way	Thermal printer
			print span	80mm
			Printing speed	250mm/sec(Max)
			Resolution	203dpi
			Printable length	100KM
			Automatic paper cutting	include
11	RFID card reader	R500	Support types	ISO1443 TYPEA TYPEB Card type
			Support card size	54850.2mm
			Communication interface	USB
			read access time	<1s
14	Power supply	RD-125-1224	Input voltage	100‐240VAC
			Output voltage	12V、24V double voltage
			Frequency	50Hz to 60Hz
			Output overcurrent protection	110~130%
			Temperature and humidity	10~+50,20%~90%RH (noncondensing)
15	Camera	C270	photosensitive element	CMOS camera
			Pixel	500 00000
			Built-in microphone	yes
			Maximum number of frames	30 frames / second frame
16	UPS	THANTAK MT500-110	Rated capacity	500VA/300W
			Power-on time	About 15 min.
			Transfer time	<10ms
17	Loudspeaker	OP‐100	Double channel stereo amplifier，8Ω5w。
18	Equipment cabinet	HZ	Size	Ergonomic according to actual functions and renderings (dimensions 6758951778mm)
			Color	In line with aesthetic requirements, customers can choose that color
			1. The outer metal cabinet is constructed of a durable galvanized steel frame
			2. This design is beautiful and easy to install and operate.Moistureproof, Antirust, acid proof, dustproof, static electricity;
			3.The logo is based on customer requirements.
19	Accessories	Anti-theft lock, tray, easy to maintain, 2 fans, line LAN port;Power socket (reserve 1 position), relay, USB port, cable, screw, etc.Another RS232 interface is reserved for 2.
19	Accessories
20	Packaging	Bubble wrap with carton safe packing method
20	Packaging	Bubble wrap with carton safe packing method

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ Bar code and A3 printer modules in colleague

Hongzhou wall mounted cash payment kiosk in hotel 5

Product details

Hongzhou wall mounted cash payment kiosk in hotel 6

Stable performance

Hongzhou wall mounted cash payment kiosk in hotel 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd is an export-oriented company integrating R&D, production, assembling, and exportation.
2. Hongzhou Smart Tech Co.,Ltd is often referred as Hongzhou, taking over its place in kiosk payment terminal market.
3. We strive to be at the forefront, offering the highest quality products at competitive prices and complying with delivery schedules. Get more info! We are going to work hard with our clients to promote responsible environmental practices and continuous improvement. We strive to mitigate our production impacts on the environment.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

Barcode Self-service Atm Cash Acceptor Recycler Automatic Payment Terminal Touch Screen Kiosk

Outdoor cash payment kiosk to bills and coins in shopping mall

Bitcoin ATM Cash Payment Kiosk Ticket Vending Machine

Professional Automated Cash Payment Kiosk in China manufacture

Floor Standing Interactive Kiosk Payment terminal self service Kiosk with built-in Printer
