15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

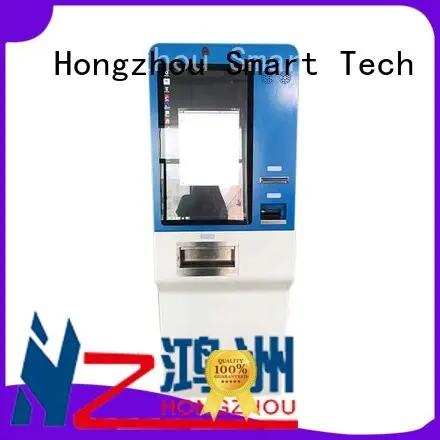

Hongzhou windows system bill payment machine acceptor in bank 1
Hongzhou windows system bill payment machine acceptor in bank 2
Hongzhou windows system bill payment machine acceptor in bank 3
Hongzhou windows system bill payment machine acceptor in bank 4
Hongzhou windows system bill payment machine acceptor in bank 1
Hongzhou windows system bill payment machine acceptor in bank 2
Hongzhou windows system bill payment machine acceptor in bank 3
Hongzhou windows system bill payment machine acceptor in bank 4

Hongzhou windows system bill payment machine acceptor in bank

Start port:
Shenzhen
Shipping:
Door to door via express: DHL, Fedex, UPS, TNT; By Sea
Payment:
T/T, L/C, Western Union, Paypal, MoneyGram
Packing:
PE bag+Carton+Pallet, Custom
MOQ:
1-500 units
Dimensions/Thickness/Color:
Custom
Delivery time:
3-4 weeks for prototype,3-4 weeks for mass production
Certifications:
ISO9001,CCC
Inquiry
Company Advantages
1. Hongzhou bill payment machine is processed with fine soldering technique which directly determines the quality of the product. The soldering joints are carefully treated to ensure good electrical contact.
2. The product has good resilience. It sinks but does not show strong rebound force under pressure; when the pressure is removed, it will gradually return to its original shape.
3. This product can be used on small- and large-scale façades. It's a popular design choice for a wide range of uses, including cultural institutions, transit facilities, and artistic installations.
4. People do not have to worry that their electricity supply capacity is not adequate to run this product. Instead, it helps cut the electricity demands.

Product information


No.ComponentsBrand / ModelMain Specifications
1Industrial PC SystemIndustrial PCMother BoardIntel H81; Integrated Network card and Graphic card
CPUIntel G3250
RAM4GB
HDD1000G
Interface14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power SupplyHUNTKEY
2Operation System
Windows 7 (without license)
3Display+Touch screen27"Screen Size27 inch
Pixel Number1920*1080
Brightness300cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 89°/89°/85°/85°
Touch point number 10 point
Input modeFinger or capacitor pen
Surface hardness≥6H
4Cash Accepter SC AdvanceCashbox box capacity1200 notes
Note DimensionsWidth: 60 - 83 mm   Length: 120 - 177 mm
Note Acceptance Speed2.3 seconds
Acceptance Rate98% or higher
5Cash dispenser MMR050Noteuse the change function
Speed5 sheets/sec
Number of box4 box
Banknote box capacity3000 sheets for each box
Maximum number of transactions50 sheets
6Coin dispenserMK4*2Coin dimensionsdiameter 16–31mm (0.63”–1.22”)

Thickness 1.00–3.50mm (0.039” –0.138”)
Coin Capacity1,120 x 1, 950 x £1, 1,600 x US 25¢
Coin Payout RateThree coins per second
Voltage24V
7PrinterMT532Printer MethodThermal printing
Print width80mm
Speed250mm/sec(Max)
Resolution203dpi
Print length100KM
Autocutterincluded
8CameraZHB3-A4Sensor type 1/2.7"CMOS
Array size1928*1088
Pixel3.0um*3.0um
Maximum image transfer rate1080P 30FPS
AGC/AEC/Whiter balanceAuto
9Camera for cash acceptor and dispenserHDE3120CHP4CCD1/3" SONY CCD

700TV
10Power SupplyLRS-150-24AC input voltage range100‐240VAC
DC output voltage24V
LRS-150-24Output over current protection 110~130%
LRS-150-12Operating temp. & humidity‐10~+50,20%~90%RH (noncondensing)
LRS-150-12AC input voltage range100‐240VAC
DC output voltage12V
11LED lamp control moduleHY-LED01Provide 8-way 5V dual-color lamp output 4-way 12V output
12SpeakerkinterDual channel amplified speakers for Stereo , 8Ω 5W.
13KIOSK Cabinet  HongzhouDimentiondecided when finish production
ColorOptional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
2.Color and LOGO  are upon customers' requests.
14AccessoriesSecurity Loc ,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
15Assembling and testing
16PackingSecurity Packing Method with Bubble Foam and Wooden Case


Product features


※  Innovative & smart design, elegant looking, anti-corrosion power coating;

※  Ergonomically and compact structure, user friendly, easy for maintenance;

※  Anti-vandalism, dust-proof, high safety performance;

※  Rugged steel frame and overtime running, high precision, high stability & reliability;

※  Cost-effective, customer-oriented design, the applicable environmental.

Hongzhou windows system bill payment machine acceptor in bank 5


Product details


Hongzhou windows system bill payment machine acceptor in bank 6
Beauty appearance, high quality
Hongzhou windows system bill payment machine acceptor in bank 7
Easy operation with multi- function



Company Features
1. Hongzhou Smart Tech Co.,Ltd has grown into a comprehensive company integrating the development, production, and marketing of bill payment machine . We offer customization one-stop service.
2. Our company has a senior management team. It is comprised of experienced and well-trained talents that support our portfolios, and empower our customers and colleagues.
3. While striving to provide the most satisfying products and services, we will spare no efforts to strengthen our corporate values of integrity, diversity, excellence, collaboration and participation. We are devoted to sticking to the core idea of "customer-center and human-oriented". We will wholeheartedly serve every customer and provide them with products with actual values. We will uphold our integrity while pursuing business development. As an entrepreneur, we will always meet our commitment no matter in carrying our business activities or fulfilling obligations on contacts. We have set up one ambitious goal. We will take the lead in this industry in the coming years. By implementing quality strategies, we will upgrade all processes from raw materials to packaging.
