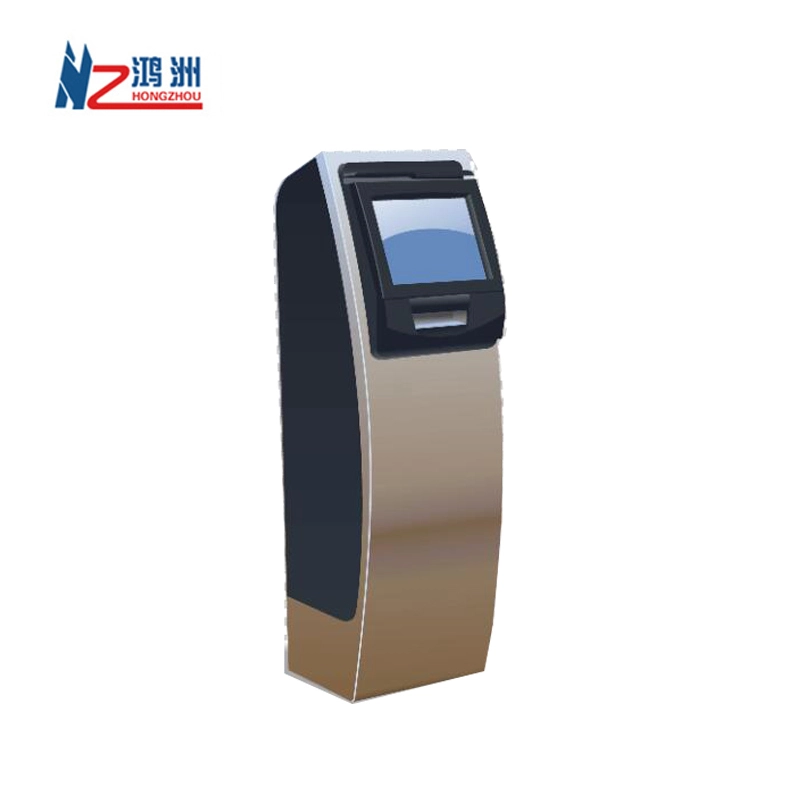

Lobby standing self service payment Kiosk With optional modules
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Lobby standing self service payment Kiosk With optional modules
Product Description
Specification
| No.1 | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Baytrail; Integrated Network card and Graphic card |
| CPU | Intel J1900 | |||
| RAM | 4GB | |||
| HDD | 1000G | |||
| Interface | 8*USB, 6*COM, 1*VGA, 2*LAN, 1*AUDIO,1*LPT,1*PS/2 | |||
| PC Power Supply | llano(12V5A) | |||
| 2 | Operation System | Windows 7(without license) | ||
| 3 | Display | Auo | Screen Size | 19 inch |
| Pixel Number | 1440X900 | |||
| Brightness | 350cd/m2 | |||
| Contrast | 1000:1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 40000hrs | |||
| 4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
| Touch technology | Capacitive | |||
| Touch Points | Multi-finger | |||
| Glass Hardness | 6H | |||
| Min.Reprot Rate | 100points/sec | |||
| Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH | |||
| 9 | Printer | Epson-MT532 | Printer Method | Thermal printing |
| Print width | 80mm | |||
| Speed | 250mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 8 | Speaker | OP-100 | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 9 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
| 10 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. | ||
| 11 | Packing | Security Packing Method with Bubble Foam and Wooden Case | ||
Detailed Images
Product Show
KIOSK
The product is specially adapted design and suits the specific requirements of the operators and the various environmental conditions available. The product helps achieve tremendous labor savings.
I love them so much! I've dropped these a few times and it is not broken or bent. - Said one of our customers. The product helps achieve tremendous labor savings.
