15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

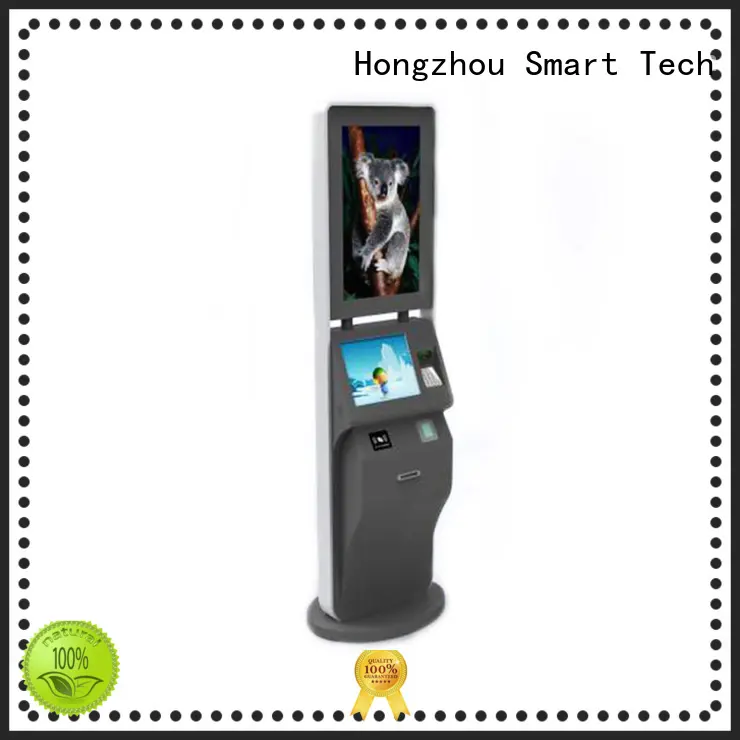

movie theater ticket kiosk in cinema Hongzhou 1

movie theater ticket kiosk in cinema Hongzhou 2

movie theater ticket kiosk in cinema Hongzhou 3

movie theater ticket kiosk in cinema Hongzhou 4

movie theater ticket kiosk in cinema Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. The tests on Hongzhou movie theater ticket kiosk including cushioning performance, hardness, and sweat absorption are strictly conducted by the QC team who has many years of experience in scrutinizing the quality of shoe materials.
2. ticket kiosk machine provides a new method to movie theater ticket kiosk .
3. ticket kiosk machine firstly take satisfying consumers' demand as aim.
4. The product has the advantage of easy operation and maintenance. This will finally lead to a reduction in operation costs.
5. The translucency of this product creates a soft light effect, providing a very comfortable level of illumination compared to the full brightness of outside.

Components List
No	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Intel H81; Integrated Network card and Graphic card
			CPU	Intel G3260
			RAM	4GB
			HDD	500G
			Interface	14USB; 12COM; 1HDMI; 1VGA; 2LAN; 1PS/2; 1*DVI;
			PC Power Supply	HUNTKEY
2	Operation System		Windows 7(without license)
3	Operation panel	Auo	Screen Size	21 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG19	Screen Diagonal	19inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
6	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
7	Ticket printer	K301	Printer Method	Thermal printing
			Resolution	203 dpi
			Width	80mm
			Speed	120mm-200mm/s
			Paper thickness	0.1-0.3mm flod paper
			Automatic cutter	1,000,000 life time（All cut）
8	Camera	C170	Photosensitive element	CMOS camera
			Camera pixel	3 million
			Interface type	usb2.0,No need to drive
			Focusing mode	Autofocus
			Fold other parameters	Features snapshot button anti-theft function
9	Speaker	OP‐100	Dual channel amplified speakers for Stereo , 8Ω 5W.
10	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
11	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
11	Accessories
12	Packing	Security Packing Method with Bubble Foam and Wooden Case
12	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

movie theater ticket kiosk in cinema Hongzhou 5

Product details

movie theater ticket kiosk in cinema Hongzhou 6

Stable performance

movie theater ticket kiosk in cinema Hongzhou 7

High end appearance

Company Features
1. After years of engaging in the manufacturing of movie theater ticket kiosk , Hongzhou Smart Tech Co.,Ltd is well-known as a competent enterprise in China.
2. Hongzhou Smart Tech Co.,Ltd produces with a scientific management model.
3. The Hongzhou brand's consumption philosophy will profoundly lead the transformation of the industry. Ask! Our ultimate strive is to become a globally modern ticket kiosk machine supplier. Ask! We specialize in cutting-edge production technology fro self service ticketing kiosk and will create the best value for our customers. Ask!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
