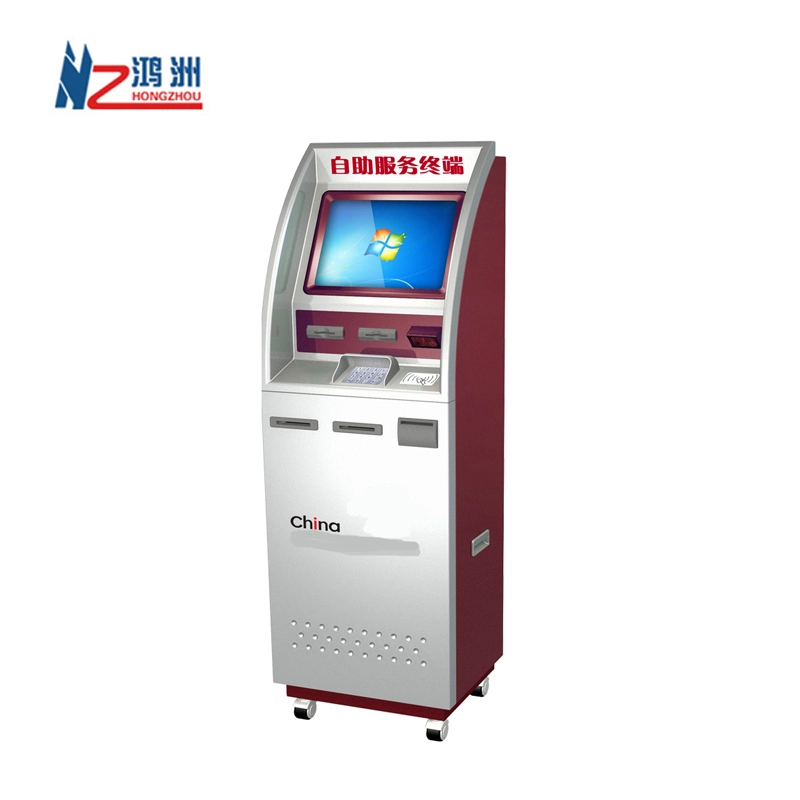

Multi function touch screen parking kiosk machine for mall
Multi function touch screen parking kiosk machine for mall
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Model Number:
touch screen parking kiosk
Product name:
Multi function touch screen parking kiosk machine for mall
Touch screen type:
Capacitive Screen
Optional parts:
cash acceptor recycler
Main components:
Bill payment
Power supply:
Dispatch way:
By sea, by air
Supply Ability
Supply Ability:
100 Unit/Units per Month

Multi function touch screen  parking kiosk machine for mall




Motherboard:Industrial board
CPU:Intel G2030/I3/I5/I7
RAM:DDRI 4GB; Hard Disk:500 GB
6RS-232 Ports,8 USB Ports,1 LTP, 1 VGA,1LVDS,1 10/100M Net Port
Net Card, Sound Card,Integrated Display Card
Computer case and power supply
Monitor(LG/Samsung/Auo)Brightness: 300cd/m2
Contrast: 450:1
Response Time:5ms;Dot pitch: 0.297;
Max. resolution: 1280*1024
Touch ScreenHigh Transparence, high precision and durability
Thickness: 6mm, Max: 4096x4096
Surface Hardness: Mohs' hardness rating of 7
Metal Keypad16 Keys Metal Keyborads; Number Keys: 10; Function Keys: 6 ;
Bill AcceptorHigh accepting rate,High security,cassette capacity: 1000pcs
RFID/Contactless Card ReaderInterface:USB, antenna inside,CCID compatiable
Barcode ScannerHigh sensitive, read all 1D &2D barcodes
Ticket printerThermal Printer;Automatic Paper Cutter; Paper in Width:80mm; Speed:150mm/Second; Invoice Print; with Black Mark Sensor
UPSSupply 10-20 minutes
SpeakersLeft and right bi-channel; amplified output; Multimedia speaker
EnclosureDurable steel frame, Power coated; Slim and smart design; Easy to install and operate; Moistureproof,Antirust,Anti-acid,Anti-dust,Static free,Graphics on front of kiosk, color painting and LOGO printing upon request;
OS SoftwareMicrosoft Windows 7 Pro (Trial version), all hard drivers are available
Optional configuration
Coin AcceptorHighest level of performance is maintained with factory-quality field programming,Easily configurable to suit most applications,Truly global
Fingerprint ReaderExcellent image quality(700dip),encrpted image data, high accurate. USB port
Wireless connectionWIFI/3G/4G


1. Business OrganizationsSupermarket, Large-scale shopping malls, Department, Exclusive agency, Chain shops, Hotels, Restaurants, Travel agencies, Pharmacy;
2. Financial OrganizationsBanks, Negotiable securities, Funds, Insurance companies, Pawnshops;
3. Non-profit OrganizationsTelecommunications, Post offices, Hospital, Schools;
4. Public PlaceSubway, Airports, Bus stations, Gas stations, Toll stations, Bookstores, Parks, Exhibition Fairs, Stadiums, Museums, Convention centers, Ticket agencies, HR market, lottery centers...



Product Show


Cllick for more information!


Hongzhou Smart Tech Co.,Ltd guarantees its products' excellent performance. The product helps achieve tremendous labor savings. Hongzhou Smart Tech Co.,Ltd conducts strict quality inspection from raw material to delivery. The product helps achieve tremendous labor savings.
