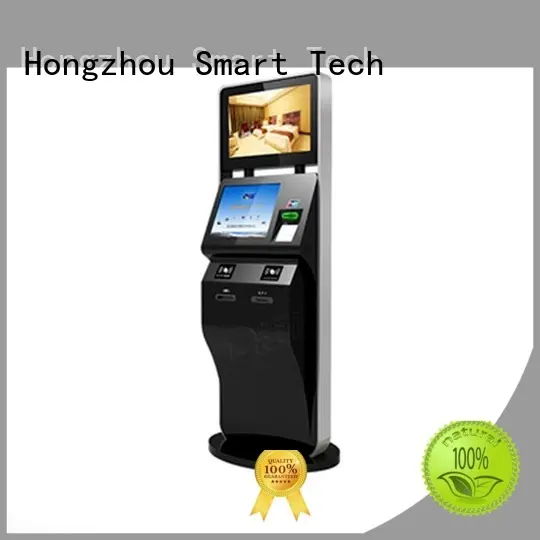

Company Advantages1. Hongzhou ticket vending machine is designed by our professional team who has been specializing in this field for years. The product features an elegant looking with anti-corrosion powder coating
2. We have enough ticket kiosk machine storage to make sure the efficiency of the delivery. The product is designed for efficient and intuitive user experience, coupled with simple service access
3. It is in high accordance with the quality inspection standards. With a bright high-resolution screen, it delivers a highly responsive, and complete self-service
4. As a testament to the great quality, the product is backed by many international quality certificates on a basis of our various performance test and quality assurance test. The customizable logo can be printed on this product
Components List |
No | Components | Brand / Model | Main Specifications |
1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
CPU | Intel G3260 |
RAM | 4GB |
HDD | 500G |
Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; |
PC Power Supply | HUNTKEY |
2 | Operation System |
| Windows 7(without license) |
3 | Operation panel | Auo | Screen Size | 21 inch |
Pixel Number | 1280x1024 |
Brightness | 350cd/m2 |
Contrast | 1000∶1 |
Display Colors | 16.7M |
Viewing Angle | 85°/85°/80°/80° |
LED Life Time | Min. 40000hrs |
4 | Touch Screen | EG19 | Screen Diagonal | 19inch |
Touch technology | Capacitive |
Touch Points | Multi-finger |
Glass Hardness | 6H |
Min.Reprot Rate | 100points/sec |
Operation Conditions | -40°C~+85°C at Min 20% to Max 90%RH |
5 | Printer | Epson-MT532 | Printer Method | Thermal printing |
Print width | 80mm |
Speed | 250mm/sec(Max) |
Resolution | 203dpi |
Print length | 100KM |
Autocutter | included |
6 | Power Supply | RD-125-1224 | AC input voltage range | 100‐240VAC |
Frequency | 50Hz to 60Hz |
Output over current protection | 110~130% |
Operating temp. & humidity | ‐10~+50,20%~90%RH (noncondensing) |
7 | Ticket printer | K301 | Printer Method | Thermal printing |
Resolution | 203 dpi |
Width | 80mm |
Speed | 120mm-200mm/s |
Paper thickness | 0.1-0.3mm flod paper |
Automatic cutter | 1,000,000 life time(All cut) |
8 | Camera | C170 | Photosensitive element | CMOS camera |
Camera pixel | 3 million |
Interface type | usb2.0,No need to drive |
Focusing mode | Autofocus |
Fold other parameters | Features snapshot button anti-theft function |
9 | RFID Card Reader | CFRS-102 | Support | ID: EM4100,4200,TK4100and compatible card
IC: Mifare one s50/S70,etc |
10 |
|
| Frequency | 125KHz,13.56MHz |
11 | Speaker | OP‐100 | Dual channel amplified speakers for Stereo , 8Ω 5W. |
12 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
Color | Optional by customer |
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; |
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; |
2.Color and LOGO are upon customers' requests. |
13 | Accessories | Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc. |
|
14 | Packing | Security Packing Method with Bubble Foam and Wooden Case |
|
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
Company Features1. Hongzhou has made great achievements in ticket kiosk machine industry. Strong technology lays a solid foundation to the stable quality of Hongzhou Smart Tech.
2. Updating the equipment to manufacture self service ticketing kiosk can make Hongzhou to win more customers.
3. Hongzhou Smart Tech Co.,Ltd has accumulated a wealth of technical experience. Emphasized on ticket vending machine, kiosk ticket machine is Hongzhou Smart Tech Co.,Ltd service idea. Call!
