Home  > Kiosk Solution  >  Multifunction A4 Kiosk Printer Self Service Touch Screen Kiosk

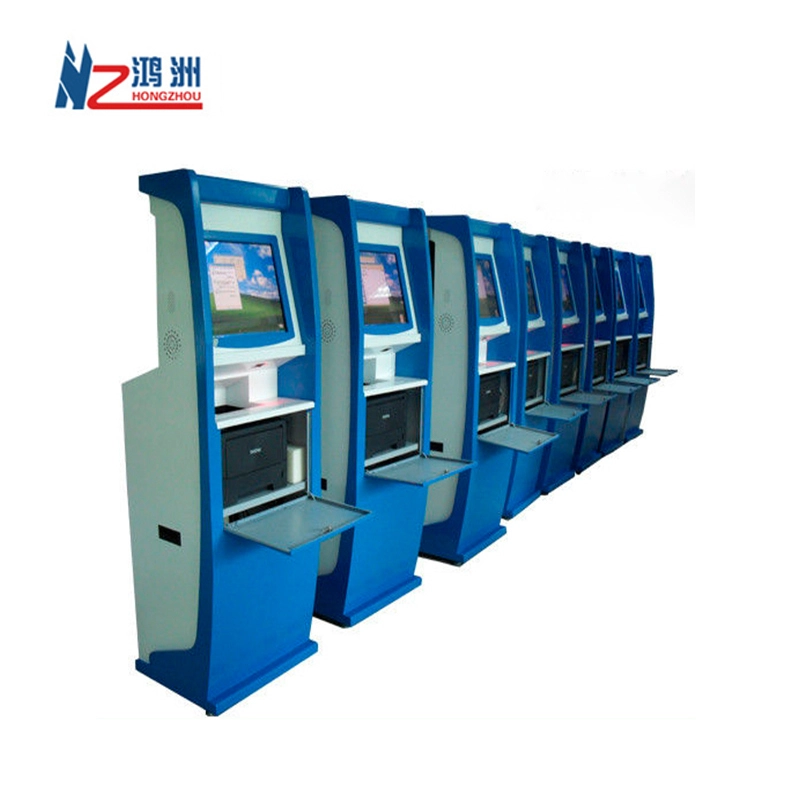

Multifunction A4 Kiosk Printer Self Service Touch Screen Kiosk
Multifunction A4 Kiosk Printer Self Service Touch Screen Kiosk
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Customized
Model Number:
HZ-KT063
Product Name:
Multifunction A4 Kiosk Printer Self Service Touch Screen Kiosk
Touch screen type:
IR Touch Screen
Function:
Service
Main components:
Laser Printer
Application:
Indoor
Optional parts:
Contactless Card Reader
Kiosk color:
Customer's Request
Power supply:
110-240V 50HZ/60HZ
Touch Screen:
15/17/19/22"
Color:
Client's Requests
Supply Ability
Supply Ability:
1000 Unit/Units per Month

Multifunction A4 Kiosk Printer Self Service Touch Screen Kiosk

Product Description
No.1ComponentsBrand / ModelMain Specifications
1Industrial PC SystemIndustrial PCMother Board

Intel H81;

Integrated Network card

and Graphic card

CPUIntel G3260
RAM4GB
HDD1000G
Interface

14*USB;12*COM;1*HDMI;

1*VGA;2*LAN;1*PS/2;

1*DVI;

PC Power SupplyHUNTKEY
2Operation System Windows 7(without license)
3DisplayAuoScreen Size19 inch
Pixel Number1280x1024
Brightness350cd/m2
Contrast1000:1
Display Colors16.7M
Viewing Angle 85°/85°/80°/80°
LED Life Time Min. 40000hrs
4Touch ScreenEG19Screen Diagonal19inch
Touch technologyCapacitive
Touch PointsMulti-finger
Glass Hardness6H
Min.Reprot Rate100points/sec
Operation Conditions

-40°C~+85°C at Min 20%

to Max 90%RH

5Barcode ReaderXN-202Imaging Sensor30W  COMS sensor
light sourceLED
Support Type1/2D barcode ,Buzzer hint
6Card ReaderCRT-310Item name

three card one electric

card reader

Features

Support IC card/

magnetic card /RF card

read/write



Front and back card/

refund card

Speed70cm/s
Card specification

Width:53.92 ~ 54.18 mm,

 length:85.47 ~ 85.90 mm

Life

Drive:500000 Min

head:read card 500000

times, Min

Environmental conditions

,-10~70,/0~90%RH

(without condensation)

7A4 Size printerHP M403dPrinter MethodLaser printer
Paper processing / output100 page out carton
Paper layoutSingle page feed
SpeedUp to 18 pages per minute
Operating temperature range15 degrees C to 32.5 degrees C
Power waste

360 watt (print), 1.4 watt

(ready), 0.9 watt (automatic

shutdown), 0.6 watts (manual

shutdown)

Power requirements

220 V input voltage:220 to

240 volts alternating current

(+/-10%),50 Hz (+/-2 Hz),

6 a.

8CameraC270Photosensitive elementCMOS camera
Camera pixel 3 million
Interface typeusb2.0,No need to drive
Focusing modeAutofocus
Fold other parametersMicrophone built-in microphone,Features snapshot button anti-theft function
9RFID Card Reader CFRS-102SupportID:EM4100,4200,TK4100and compatible card
IC:Mifare one s50/S70,etc
Frequency125KHz,13.56MHz
10Power SupplyRD-125-1224AC input voltage range100-240VAC
Frequency50Hz to 60Hz
Output over current protection 110~130%
Operating temp. & humidity-10~+50,20%~90%RH (noncondensing)
Company Information

Hongzhou,ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing complete solution for self service Kiosks.



♦ We have a strong self-service terminal product’s development, software support and system integration capability, and offer customized solution according to client’s individual need.



♦ Equipped with a series of leading precision sheet metal and CNC machine tool equipment, and modern self- service terminal electronic assembly lines, our product are approved by CE, FDA,ROHS, FCC,CCC,IP65 etc.



♦ Our self-service terminal product and solution are designed and manufactured base on lean thinking, with vertical integrated batch production capacity, low-cost structure, and outstanding customer collaboration, we are good at quick response to customer's tailor-made requirement, providing customer with one-stop self- service terminal solution.



♦ Hongzhou high quality product and self-service terminal solution are popular both in the domestic and global markets in over 90 countries, cover financial self-service kiosk, payment kiosk, retail ordering kiosk,ticketing /card issuing kiosk, multi-media terminals, ATM/ADM/CDM, they are widely used in bank, and securities, traffic, shopping mall,hotel,retail, communications, medicine, cinema.

Production Flow

Packaging & Shipping

Payment



FAQ

Q1: Are you manufacturer?
A1: Yes, we're manufacturer and OEM & ODM is accepted.
Q2: What's your MOQ?
A2: One sample is available.
Q3: What's the lead time?
A3: 7~45 days
Q4: What's your guarantee for the kiosk?
A4: 1 year guarantee from the shipping date.
Q5: What is your payment methods ?
A5: T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
Q6: What is transportation way?
A6: By sea,by air, by courier
Q7: What is your trading terms?
A7: EXW, FOB,CIF is our common trading terms
