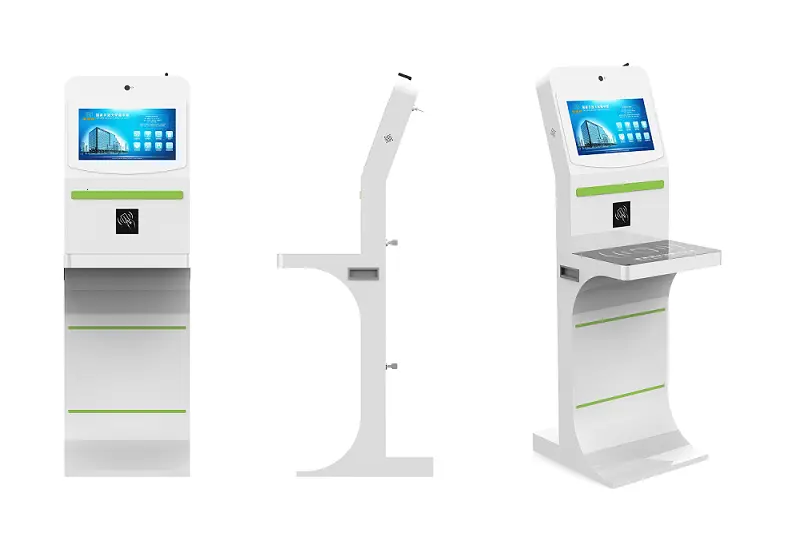

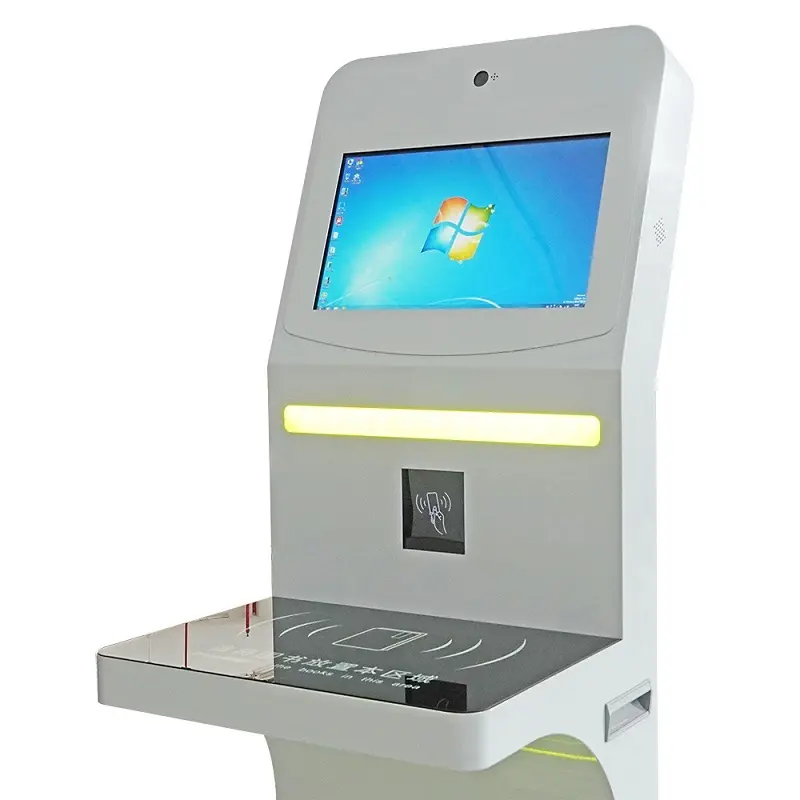

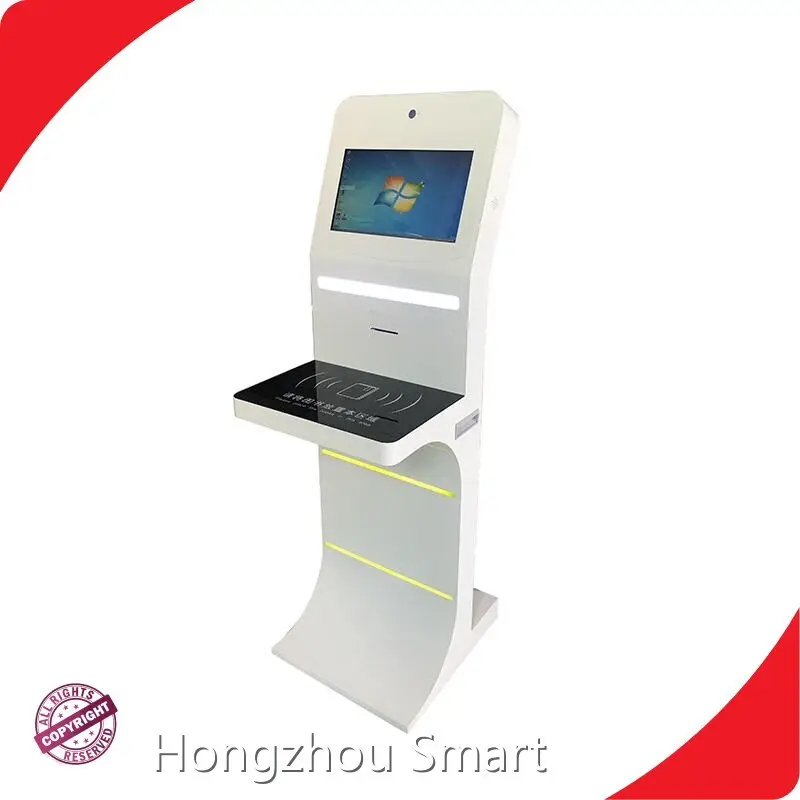

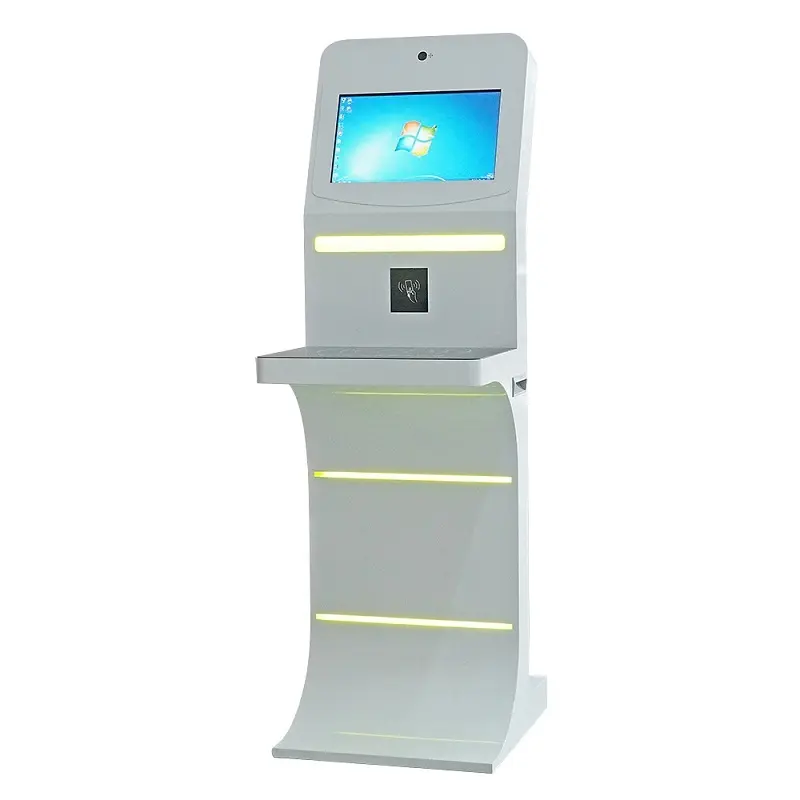

Product details of the automated kiosk
Quick Detail
Hongzhou Kiosk automated kiosk is produced using the lean production method. This product is cost-effective and the quality is exceptional. We are proud to introduce you to our automated kiosk in the vibrant and sophisticated design.
Product Information
Hongzhou Smart's automated kiosk has better quality than other products in the industry, which is specifically shown in the following aspects.
No. | Component | Brand | Specification |
1 | Industrial PC | Industrial PC | PC | Baytrail; Integrated Network card and Graphic card |
CPU | Intel J1900 |
RAM | 4GB |
HDD | 1000G |
Connector | 8*USB, 6*COM, 1*VGA, 2*LAN,1*AUDIO, 1*LPT, 1*PS/2 |
PC Supply | llano(12V5A) |
2 | System |
| Windows 7 (without license) |
3 | Monitor | Auo | Size | 15.6 inch |
Rate | 16::9 |
Brightness | 250cd/m2 |
Contrast | 1000∶1 |
Color | 16.7M |
Angle | 85°/85°/80°/80° |
Life time | Min. 40000hrs |
4 | Touch screen | EG | Screen size | 15.6 inch |
Type | Capacitive |
Touch point | Multi finger |
Hardness | 6H |
Min. Reprot | 100points /second |
Oscillation frequency | 12MHz |
5 | RFID card reader/ID card reader |
| Customzied |
|
7 | Camera | C310 | pixel count | More than 5,000,000 |
Camera resolution | 1280 x 720 |
Definition | High definition |
Built-in microphone | Yes |
Maximum number of frames | 30 frames/ second frames |
8 | Supply | RD-125-1224 | Working | 100‐240VAC |
Frequency range | 50Hz to 60Hz |
Output overcurrent protection | 110~130% |
Operating temperature. humidity | ‐10 + 50,20~90%RH |
9 | Loudspeaker | OP‐100 | Dual channel amplifier speaker stereo, 8 Ω 5 w. |
10 | Cabinet | HZ | Size | According to actual function and effect drawing, accord with ergonomics |
Color | Customer can choose the color according to the aesthetic requirement |
1.The material of the outer metal cabinet is a durable cold-rolled steel frame |
2. The design is beautiful and generous, easy to install and operate.Moistureproof, Antirust, acid proof, dustproof, static electricity; |
3.The logo is based on the customer's requirements. |
11 | Metal keyboard | / | / |
12 | Accessories | Security lock, tray, easy maintenance, 2 fan, line LAN port;Power sockets, relays, USB ports, cables, screws, etc. |
|
13 | Packaging | Bubble foam and carton safety packaging |
|
※ Innovative & smart design, elegant looking, anti-corrosion power coating
※ Ergonomically and compact structure, user friendly, easy for maintenance
※ Anti-vandalism, dust-proof, high safety performance
※ Rugged steel frame and overtime running, high precision, high stability & reliability
※ Cost-effective, customer-oriented design, the applicable environmental
Company Information
Located in Shenzhen Hongzhou Smart Technology Co.,Ltd is a company specializing in the production of Self Service Kiosk,Currency Exchange Kiosk,Bitcoin ATM,ATM/CDM,Digital Signage (Billboards),Smart POS,Smart Vending Machine,Modules. Hongzhou Smart is committed to providing customers with excellent, advanced and professional services. In this way can we improve their trust and satisfaction with our company. Customers who need our products are welcomed to contact us for consultation.
