Product details of the kiosk manufacturers in china
Quick Overview
Individualized design of kiosk manufacturers in china has attracted many customers for now. The product is not only of reliable quality, but also offers long-term excellent performance. kiosk manufacturers in china developed and produced by Hongzhou Smart is widely applied to many industries and fields. It can fully meet the diversified needs of customers. Anytime you need samples for kiosk manufacturers in china, Shenzhen Hongzhou Smart Technology Co.,Ltd will send timely.
Product Introduction
Compared with general products, the kiosk manufacturers in china we produce have the following advantages.

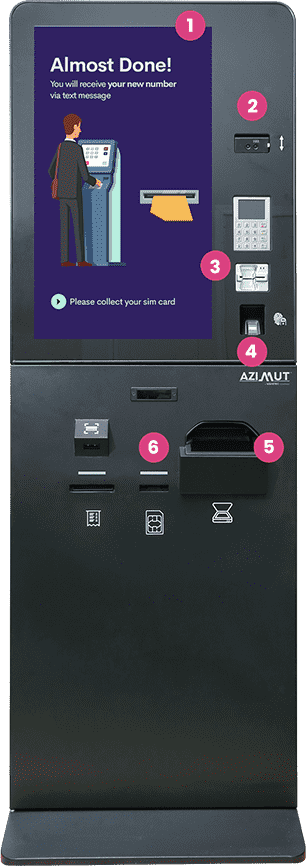

SELF-SERVICE SIM CARD DISPENSING KIOSKS
Hongzhou Smart is fully integrated self service platform, complete with modular hardware, sophisticated middleware and a telemetry platform, promises market-leading flexibility and customization to self service projects for telecoms worldwide.
We have different Telecom SIM Dispensing Kiosk design to meet customer's different requirement.

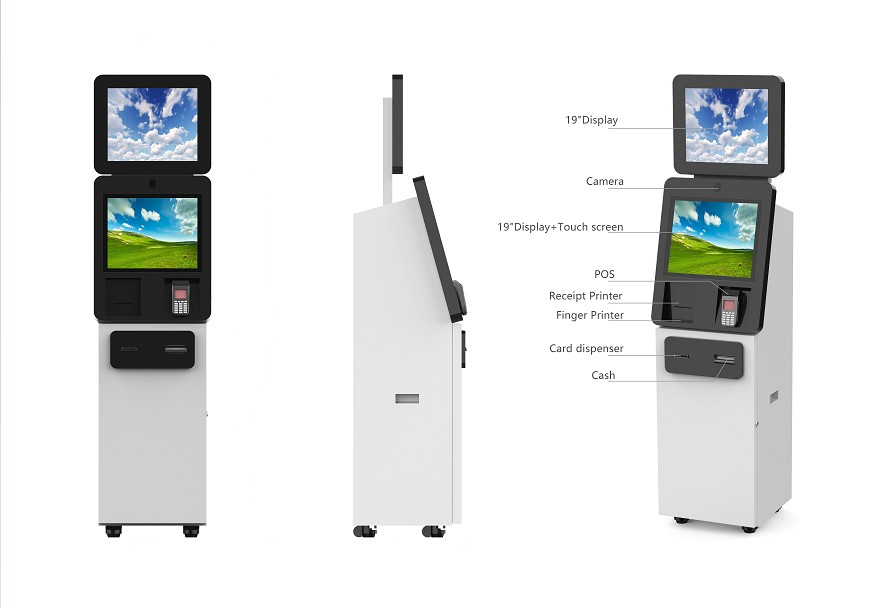

Below is one of SIM Card Dispensing Kiosk Firmware BOM：
| No. | Components | Brand / Model | Main Specifications | |
| 1 | Industrial PC System | Industrial PC | Mother Board | Intel H81; Integrated Network card and Graphic card |
| CPU | Intel i3 4170 | |||
| RAM | 8GB | |||
| SSD | 240G | |||
| Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | |||
| PC Power Supply | GW-FLX300M 300W | |||
| 2 | Operation System | Windows 10 | ||
| 3 | Display+Touch screen | 19" | Screen Size | 19 inch |
| Pixel Number | 1280*1024 | |||
| Pixel pitch | 250cd/m² | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 30000hrs | |||
| Touch point number | 10 point | |||
| Input mode | Finger or capacitor pen | |||
| Surface hardness | ≥6H | |||
| 4 | Advertising screen | 19" | Screen Size | 19 inch |
| Pixel Number | 1280*1024 | |||
| Pixel pitch | 250cd/m² | |||
| Contrast | 1000∶1 | |||
| Display Colors | 16.7M | |||
| Viewing Angle | 85°/85°/80°/80° | |||
| LED Life Time | Min. 30000hrs | |||
| 5 | Cash recycle | Cash size | Accepts:Width: 60 - 85 mm,Length: 115 - 170 mm | |
| Recycles:Width: 60 - 82 mm | ||||
| Cash box capacity | 1000 notes | |||
| Recycler Capacity | Up to 70 mixed notes | |||
| Protocols | SSP ccTalk | |||
| MCBF | 100,000 | |||
| 6 | Card dispenser | Support card type | Contact IC card conforming to ISO7816 standard read and write and dispensed | |
| Card size | L:85±0.5mm，W:54±0.5mm，T:0.2～2.0MM | |||
| Card box capacity | 300 pcs | |||
| Card volume alarm: | less 10 pcs | |||
| 7 | Receipt Printer | Receipt Printer Method | Thermal printing | |
| Print width | 58mm (432dots/line) | |||
| Speed | 200mm/sec(Max) | |||
| Resolution | 203dpi | |||
| Print length | 100KM | |||
| Autocutter | included | |||
| 8 | Camera | Sensor type | 1/2.7"CMOS | |
| Array size | 1928*1088 | |||
| Pixel | 3.0um*3.0um | |||
| Maximum image transfer rate | 1080P 30FPS | |||
| AGC/AEC/Whiter balance | Auto | |||
| 9 | Power Supply | LRS-350-24 | AC input voltage range | 100‐240VAC |
| DC output voltage | 24V | |||
| LRS-150-12 | AC input voltage range | 100‐240VAC | ||
| DC output voltage | 12V | |||
| 10 | POS with NFC | Provided by customer | ||
| 11 | Finger printer | Provided by customer | ||
| 12 | 4G | Provided by customer | ||
| 13 | WIFI | U10 | 2.4G Hz +5G Hz | |
| 14 | Speaker | HZ | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
| 15 | KIOSK Cabinet | Hongzhou | Dimention | decided when finish production |
| Color | Optional by customer | |||
| 1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | ||||
| 2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | ||||
| 2.Color and LOGO are upon customers' requests. | ||||
Hongzhou Smart provides instant card issuance kiosks that Multi-type Instant Card Printing and Issuing Solution.Our self-service machines can print and issue many types of cards. This includes SIM cards,debit cards, credit cards, prepaid cards, subsidiary cards, and cards renewal.
Company Advantages
In the past years, Shenzhen Hongzhou Smart Technology Co.,Ltd has grown into a highly professional manufacturer of kiosk manufacturers in china. We have been considered as the preferred partner in the industry. Our company is thriving on five continents and in many countries. Our customer service has been practiced and polished through long-standing experience with international partners. Our company will stick to the high standards of professional conduct, and to ethical and fair business dealings with our customers to achieve long-term success.
If you are interested in our products, please feel free to contact us.
