Home  > Smart POS Terminal  >  portable and mini terminal machine with 5.7 inch screenCS20

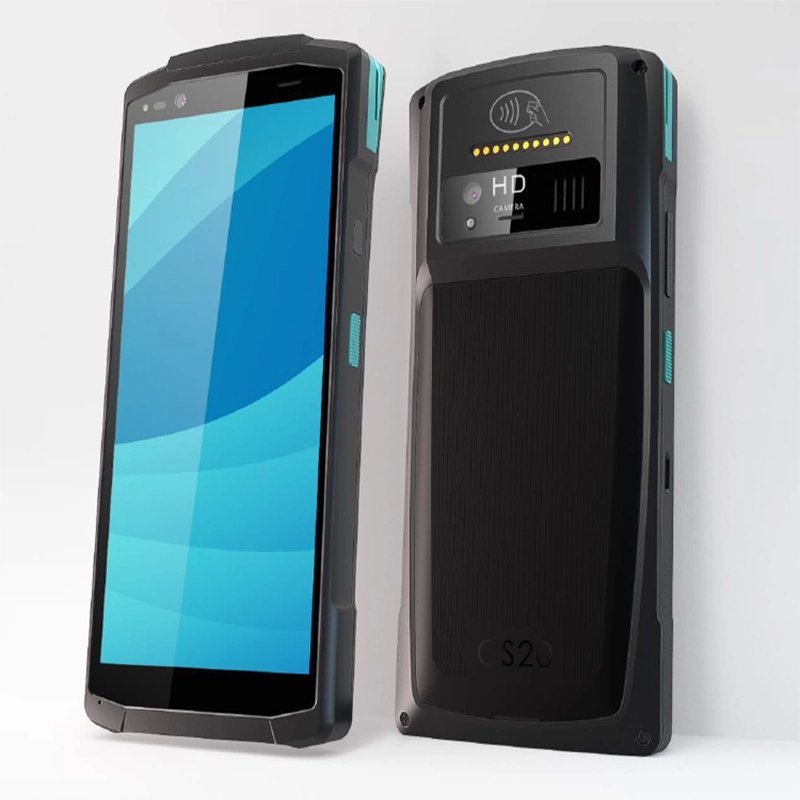

portable and mini terminal machine with 5.7 inch screenCS20
portable and mini terminal machine with 5.7 inch screenCS20
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
hongzhou
After-sales Service Provided:
Video technical support, Online support
Warranty:
1 Year
Operation System:
Safedroid OS (based on Android 10.0 )
CPU:
Qualcomm Octa-Core ARM Cortex-A53 1.8GHz, 16GB ROM EMMC + RAM 2G RAM LPDDR3 default
Touch Screen Type:
Capacitive Screen
Hard Disk Capacity:
ROM+RAM: 8GB ROM EMMC +1G RAM LPDDR3
Display:
5.7 inch TFT IPS LCD, resolution 720*1440;
OS:
Android 10.0
Product Name:
POS Terminal
Micro SD Card Slot:
1 PCS support up to 128GB
Function:
Printing
Certification:
CE,Rohs, FCC
Color:
Black and Blue
Power:
Li-ion battery ,4.35V /3500mAH
Weight:
300g(Battery included)
Dimensions::
163mmX77mmX17.5mm (max 21.8mm)
Product Description



Basic OS  Safedroid OS, Based on Android 10.0 OS;
Characteristics CPU Qualcomm Octa-Core ARM Cortex-A53 1.8GHz
ROM+RAM 16GB ROM EMMC  + RAM 2G RAM LPDDR3 default
Display  5.7 inch TFT IPS LCD, resolution 720*1440;
Panel Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
Dimensions 163mmX77mmX17.5mm (max 21.8mm)
Weight 300g(Battery included)
Keys Physical keys:1 power on/off ,2 Volume + /-,3 scan1, 4 scan2
3 Virtual keys:Menu,Home,Back
Input Chinese/English ,and supports handwriting and soft keyboard
Radio Communication WIFI IEEE 802.11 b/g/n and a/c ,support dual Band 2.4GHZ and 5GHZ
Bluetooth BT 4.2 LE and earlier
4G European version(Default):
FDD-LTE:B1/B3/B5/B7/B8/B20
TDD-LTE:B38/B39/B40/B41
American version(Optional):
FDD-LTE:B2/B4/B5/B12/B13/B17/B25/B26
TDD-LTE:B41
Payment Magcard reader Supports ISO7811/7812/7813, and supports triple
track (tracks 1/2/3), bi-directional
Smart Card reader Supports ISO7816 standard
Contactless Card reader Supports 14443A / 14443B
NFC 13.56MHZ
Expansion and peripherals Printer High-Speed Thermal Printer ; (Extended support on the charging cradle)


Camera AF 5MP camera with LED flash
Satellite Positioning Support GPS(A-GPS)/Bei-Dou/Glonass or Galileo
Audio Speaker ,Microphone,
Interfaces Micro SD Card Slot 1 PCS support up to 128GB
SIM Card Slot 1 PCS MICRO SIM
ESIM card ( Optional )
PSAM Card Slot 2 PCS Conforms to ISO7816 standard
USB Port 1PCS TYPE C USB
Power Battery Li-ion battery ,4.35V /3500mAH
Charging Port Type C USB Port ,5V DC,2A
Environment Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 70°C
Humidity 5% to 95% Relative Humidity, Non-Condensing
Certification Electromagnetic CE,Rohs,FCC
Payment PCI PTS 5.X ,EMV L1&L2, Paypass, Paywave,Americian expressPay, TQM
Optional Fingerprint in cradle
Front camera 2 Megapixel Fixed Focal Camera
Barcode Scanner Symbol 4710 2D scanner optional
Positioning same
Fiscal Module in cradle
