    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    CS10
    Model Number:
    HZ-CS10-046
    Product Name:

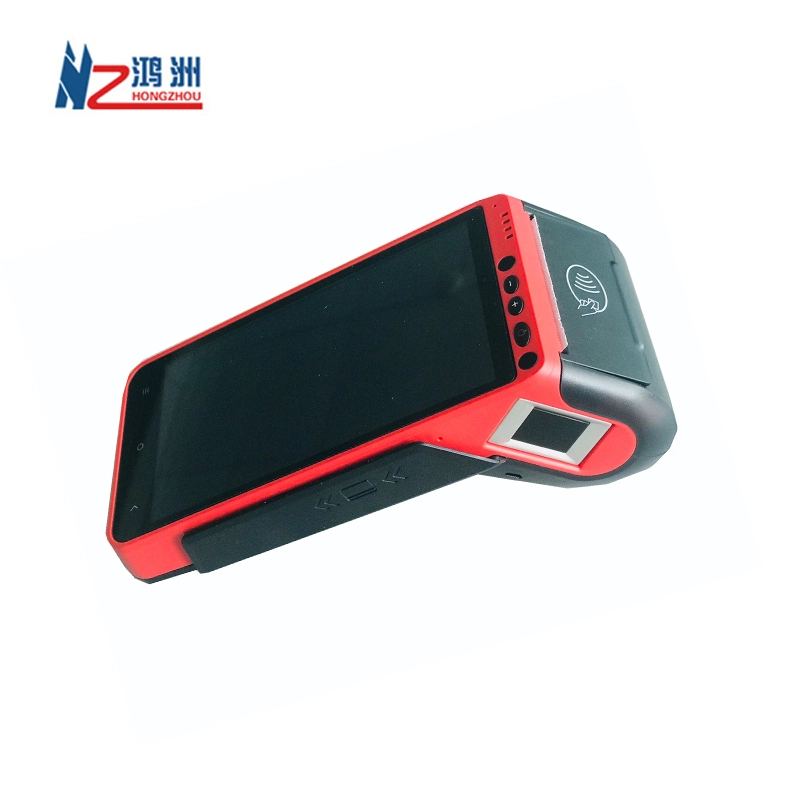

    POS Manufacturer Smart Android Touch Screen Pos Terminal
    CPU:
    Quad-Core 1.35GHZ
    OS:
    Safedroid OS (based on Android 7.0 or 5.1)
    Memory:
    8GB ROM+1G RAM( Support Memory expansion )
    Display:
    5.5 inch TFT IPS LCD(1280*720)
    Communication:
    4G/3G/2G/WIFI/Bluetooth
    Certification:
    CE FCC ROHS EMV PCI
    Color:
    Black/Red/Gray
    Interface:
    Type C USB Port ,5V DC,2A
    Functions:
    Printer+Camera+GPS+SIM Card Slot etc.
    Supply Ability
    Supply Ability:
    10000 Unit/Units per Month
    Video Description

    POS Manufacturer Smart Android Touch Screen Pos Terminal

    Company Information

    POS Manufacturer Smart Android Touch Screen Pos Terminal 7

    Product Description



    Specifications
    BasicOSSafedroid OS (based on Android 7.0 or 5.1)
    CharacteristicsCPUQuad-Core 1.35GHZ
    ROM8GB ROM EMMC
    RAM1G RAM LPDDR3
    Display5.5 inch TFT IPS LCD,resolution 1280*720
    PanelUltra sensitive capacitive touch screen,
    can work with gloves and wet fingers
    Dimensions206mm*84mm*32mm
    Weight560g(Battery included)
    Keys3 Physical keys:1 ON/OFF KEY,2 Shortcut keys
    3 Virtual keys:Menu,Home,Back
    Input

    Chinese/English ,and supports handwriting

    and soft keyboard

    Radio CommunicationWIFI

    IEEE 802.11 a/b/g/n ,

    support dual Band 2.4GHZ and 5GHZ

    BluetoothBT 4.0 LE +EDR
    4GTD-LTE:Band38, Band39, Band40, Band41
    FDD-LTE:Band1,Band3,Band7,Band8,Band20
    3GUMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5
    CDMA EV-DO Rev.A:800MHZ
    TD-SCDMA:Band34,Band39
    2GGSM/GPRS/EDGE:850/900/1800/1900MHZ
    PaymentMagcard readerSupports ISO7811/7812/7813, and supports triple
    track (tracks 1/2/3), bi-directional
    Smart Card readerSupports ISO7816 standard
    Contactless Card readerSupports 14443A / 14443B
    Expansion and peripheralsPrinterHigh-Speed Thermal Printer ;
    58mm printing paper ;
    40mm paper roll
    Camera5MP camera with LED flash and auto-focus function
    Satellite PositioningGPS, GLONASS, Bei-Dou satellite navigation system,
    Supports A-GPS
    AudioSpeaker ,Microphone,Earphone
    InterfacesMicro SD Card Slot1 PCS
    SIM Card Slot2 PCS MICRO SIM
    PSAM Card Slot2 PCS Conforms to ISO7816 standard
    USB Port1PCS TYPE C USB
    PowerBatteryLi-ion battery ,7.2V /2600mAH
    Charging PortType C USB Port ,5V DC,2A
    EnvironmentOperating Temperature-10°C to 50°C
    Storage Temperature-20°C to 70°C
    Humidity5% to 95% Relative Humidity, Non-Condensing
    CertificationElectromagneticCE,ROHS
    OptionalFingerprintSemiconductor capacitance
    14.4mm x 10.4mm imaging area
    208 x 288 pixel array,
    Crossmatch FBI certified
    Authentec,508dpi
    Front camera2 Megapixel Fixed Focal Camera
    Barcode ScannerHoneywell 2D Image Engine,
    Support 1D and 2D symbologies
    Fiscal ModuleRussian format
    Detailed Images

    POS Manufacturer Smart Android Touch Screen Pos Terminal 9

    Production Flow

    POS Manufacturer Smart Android Touch Screen Pos Terminal 11

    Applications

    POS Manufacturer Smart Android Touch Screen Pos Terminal 13



    Packaging & Shipping

    POS Manufacturer Smart Android Touch Screen Pos Terminal 15POS Manufacturer Smart Android Touch Screen Pos Terminal 17POS Manufacturer Smart Android Touch Screen Pos Terminal 19

    Seldom do we receive complaints about quality of kiosk machine. The customizable logo can be printed on this product. The large-scale integrated processing plant of Hongzhou Smart Tech Co.,Ltd provides consumers with convenient services. The customizable logo can be printed on this product.
