Hongzhou Smart - 15+ Years Leading OEM & ODM

kiosk turnkey solution manufacturer

screen self payment machine metal in hotel Hongzhou 1
screen self payment machine metal in hotel Hongzhou 2
screen self payment machine metal in hotel Hongzhou 3
screen self payment machine metal in hotel Hongzhou 4
screen self payment machine metal in hotel Hongzhou 1
screen self payment machine metal in hotel Hongzhou 2
screen self payment machine metal in hotel Hongzhou 3
screen self payment machine metal in hotel Hongzhou 4

screen self payment machine metal in hotel Hongzhou

Start port:
Shenzhen
Shipping:
Door to door via express: DHL, Fedex, UPS, TNT; By Sea
Payment:
T/T, L/C, Western Union, Paypal, MoneyGram
Packing:
PE bag+Carton+Pallet, Custom
MOQ:
1-500 units
Dimensions/Thickness/Color:
Custom
Delivery time:
3-4 weeks for prototype,3-4 weeks for mass production
Certifications:
ISO9001,CCC
Inquiry
Company Advantages
1. Hongzhou bill payment machine is designed in line with the international production standards. It makes it easy to automate guest services and keep demand serviced efficiently
2. Hongzhou Smart Tech Co.,Ltd has extensive design capabilities, rigorous process, a complete quality control system and good after-sales service. The product delivers outstanding engagement for customers
3. Our concentrations on the design of self payment machine has worked out finally. Its touchscreen provides brilliant resolution and precision touch capability



Components List and Price
NoComponentsBrand / ModelMain Specifications
1Industrial PC SystemIndustrial PCMother BoardIntel H81; Integrated Network card and Graphic card
CPUIntel G3260
RAM4GB
HDD1000G
Interface14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power SupplyHUNTKEY
2Operation System
Windows 7(without license)
3DisplayAuoScreen Size19 inch
Pixel Number1280x1024
Brightness350cd/m2
Contrast1000∶1
Display Colors16.7M
Viewing Angle 85°/85°/80°/80°
LED Life Time Min. 40000hrs
4Touch ScreenEG19Screen Diagonal19inch
Touch technologyCapacitive
Touch PointsMulti-finger
Glass Hardness6H
Min.Reprot Rate100points/sec
Operation Conditions-40°C~+85°C at Min 20% to Max 90%RH
5Barcode ReaderXN-202Imaging Sensor30W  COMS sensor
light sourceLED
Support Type1/2D barcode ,Buzzer hint
6Card ReaderCRT-310Item namethree card one electric card reader
FeaturesSupport IC card / magnetic card /RF card read / write

Front and back card / refund card
Speed70cm / s
Card specificationWidth: 53.92 ~ 54.18 mm, length: 85.47 ~ 85.90 mm
LifeDrive: 500000 Min head: read card 500000 times, Min
Environmental conditions,-10~70, /0~90%RH (without condensation)

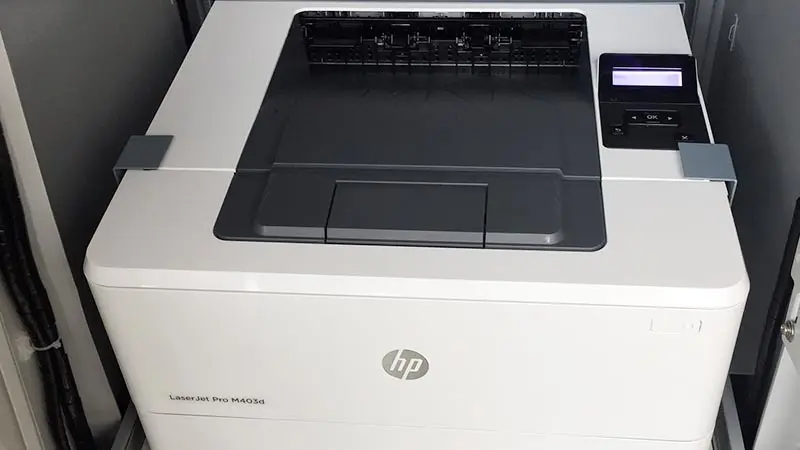

7A4 Size printerHP M403dPrinter MethodLaser printer
Paper processing / output100 page out carton
Paper layoutSingle page feed
SpeedUp to 18 pages per minute
Operating temperature range15 degrees C to 32.5 degrees C
Power waste360 watt (print), 1.4 watt (ready), 0.9 watt (automatic shutdown), 0.6 watts (manual shutdown)
Power requirements220 V input voltage: 220 to 240 volts alternating current (+/-10%), 50 Hz (+/-2 Hz), 6 a.
8CameraC270Photosensitive elementCMOS camera
Camera pixel 3 million
Interface typeusb2.0,No need to drive
Focusing modeAutofocus
Fold other parametersMicrophone built-in microphone,Features snapshot button anti-theft function
9RFID Card Reader CFRS-102SupportID: EM4100,4200,TK4100and compatible card
       IC: Mifare one s50/S70,etc
Frequency125KHz,13.56MHz
10Power SupplyRD-125-1224AC input voltage range100‐240VAC
Frequency50Hz to 60Hz
Output over current protection 110~130%
Operating temp. & humidity‐10~+50,20%~90%RH (noncondensing)
11WifiTENDA300Mbps wireless transmission rate
12SpeakerOP‐100Dual channel amplified speakers for Stereo , 8Ω 5W.
13KIOSK CabinetHongzhouDimentiondecided when finish production
ColorOptional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
2.Color and LOGO  are upon customers' requests.
14AccessoriesSecurity Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port;  Power sockets for electricity,  USB ports;Cables, Screws, etc.
15PackingSecurity Packing Method with Bubble Foam and Wooden Case


Product features


※  Innovative & smart design, elegant looking, anti-corrosion power coating

※  Ergonomically and compact structure, user friendly, easy for maintenance

※  Anti-vandalism, dust-proof, high safety performance

※  Rugged steel frame and overtime running, high precision, high stability & reliability

※  Cost-effective, customer-oriented design, the applicable environmental

※  Optional of smart POS terminal

screen self payment machine metal in hotel Hongzhou 5


Product details


screen self payment machine metal in hotel Hongzhou 6
Stable performance
screen self payment machine metal in hotel Hongzhou 7
High end appearance



Company Features
1. Hongzhou Smart Tech Co.,Ltd has superior manufacturing capacity and bill payment machine research and development capability.
2. Hongzhou Smart Tech Co.,Ltd endeavors to become one of the leading bill payment kiosk manufacturer. Call now!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
