15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

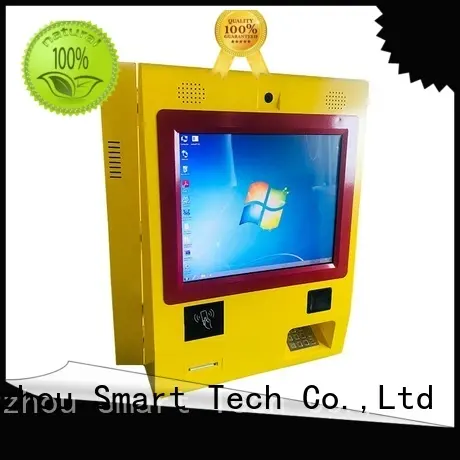

self payment kiosk for sale Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Hongzhou payment kiosk system has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion.
2. The product has good strength. Its strong woven construction, as well as the pressed fiber sheet, can resist tears and punctures.
3. The product is an essential tool for hazardous materials. Its excellent leakage resistance can prevent the escape of toxic fumes to the surroundings.
4. With a viewing to effectively guaranteeing quality for self payment kiosk , Hongzhou Smart Tech Co.,Ltd introduced efficient quality management system.

Components List
No.1	Components	Brand / Model	Main Specifications
1	Industrial PC System	Industrial PC	Mother Board	Baytrail; Integrated Network card and Graphic card
			CPU	Intel J1900
			RAM	4GB
			HDD	1000G
			Interface	8USB, 6COM, 1VGA, 2LAN,1AUDIO, 1LPT, 1*PS/2
			PC Power Supply	LRS-75-24
2	Operation System		Windows7(without license)
3	Display	Auo	Screen Size	19 inch
			Pixel Number	1280*1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			LED Life Time	Min. 40000hrs
4	Touch Screen	EG	Screen Diagonal	19 inch
			Touch technology	Capacitive
			Touch Points	Multi-finger
			Glass Hardness	6H
			Min.Reprot Rate	100points/sec
			Operation Conditions	-40°C~+85°C at Min 20% to Max 90%RH
5	Non-contact card reader	RS102	Name	Double frequency card reader
			Dimension	104mm68mm10mm
			Support	ID: EM4100,4200,TK4100and compatible card IC: Mifare one s50/S70,etc
			Frequency	125KHz,13.56MHz
			Reader time	<0.5s
			Consumed Current	70mA
			Operating Distance	0~10cm
			Interface	USB
			Status Indication	1pc LED
6	Code keyboard	KMY3501B	Mechanical property	Keyboard life: >2000000 times per key
			physical property	4 x 4 keyboard design (10 numeric keys, 6 function keys)
			Safety characteristics	Inside the keyboard's security module, the PIN is encrypted
			Function description	Support DES and TDES encryption and decryption algorithm, PIN encryption, MAC computing
7	Two-dimensional code scan	7160	Image (Pixels)	640 pixels(H) x 480 pixel(V)
			Light Source	Illumination: 6500K LED
			Field of View	80°(H) x 64° (V)
			Print Contrast£º	20% minimum reflective difference
			Interfaces Supported£º	USB , RS232
			1-D	UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.
			2-D	PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.
8	Printer	Epson-MT532	Printer Method	Thermal printing
			Print width	80mm
			Speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
9	Camera	C270	Photosensitive element	CMOS camera
			pixel	5 million
			Built-in microphone	yes
			Maximum frame number	30 frames / second frame
10	Power Supply	RD-125-1224	AC input voltage range	100‐240VAC
			Frequency	50Hz to 60Hz
			Output over current protection	110~130%
			Operating temp. & humidity	‐10~+50,20%~90%RH (noncondensing)
11	Speaker	Kinter	Dual channel amplified speakers for Stereo , 8Ω 5W.
12	KIOSK Cabinet	Hongzhou	Dimention	decided when finish production
			Color	Optional by customer
			1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame;
			2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
			2.Color and LOGO are upon customers' requests.
13	Accessories	Security Lock for anti theft , tray for easy maintenance,2 ventilation fans, Wire-Lan Port; Power sockets for electricity, USB ports;Cables, Screws, etc.
13	Accessories
14	Packing	Security Packing Method with Bubble Foam and Wooden Case
14	Packing	Security Packing Method with Bubble Foam and Wooden Case

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ Payment kiosk with Visa card reader

Product details

Stable performance

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd has made achievements in the field of self payment kiosk .
2. Following the outstanding success in the Chinese market, our company rapidly expands the business to other countries. As a result, our products are available in many countries around the world.
3. Our core value is a strong teamwork spirit. We encourage not only internal teamwork, but also the cooperation across boundaries. By this way, we work better with our partners to meet their requirements which in return helps our company grow. Ask! We can promise high quality and remarkable service for pay kiosk . Ask!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
