15 Years+ Leading OEM & ODM

kiosk turnkey solution manufacturer

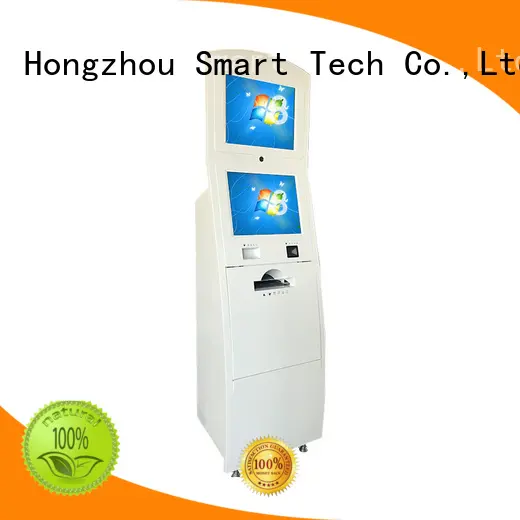

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 1

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 2

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 3

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 4

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. digital information kiosk is designed by industry's leading designers.
2. The product has a sound electrical system. It is impervious to open circuit, short circuit, and electric leakage and can run reliably under these situations.
3. The product is able to withstand the most rigorous industrial conditions. Made from new materials, like improved steel alloys and other composites, it is durable enough.
4. Since Hongzhou placed a lot of emphasis on service, it has been much improved.
5. Hongzhou’s leading technologies, quality products and professional services are always oriented to customer needs.

No.	Components	Brand/Model No.	Specification
1	Raspberry Pi 3	Model B+	Processor	Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz
			Memory	1GB LPDDR2 SDRAM
			MicroSD card	16G
			Connectivity	2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps) 4 × USB 2.0 ports
			Access	Extended 40-pin GPIO header
			Video & sound	1 × full size HDMI MIPI DSI display port MIPI CSI camera port 4 pole stereo output and composite video port
2	Industrial PC	Industrial PC	Mother Board	M3
			CPU	RK3288
			RAM	4 core A17
			GPU	Mail-t764
			RAM	2+8G （4+16 optional)
			Interface	1LVDS, 4USB, 1OTG, 1RG45，4*COM
			DC Power Supply	12V5A
3	Advertising display	Auo 19"	Display size	19 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			Life Time	Min. 40000hrs
4	Display screen	Auo 19"	Display size	19 inch
			Pixel Number	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Display Colors	16.7M
			Viewing Angle	85°/85°/80°/80°
			Life Time	Min. 40000hrs
5	Touch screen	19"	Display size	19 inch
			Pixel Number	capacitance
			Contact point	Multi finger
			Hardness	6H
			Min. Reprot	100points /second
			Oscillation frequency	12MHz
6	A4 printer	HP 403D	Printer mode	A4 Black and white laser printer
			Resolution	600x600dpi
			Interface type	USB2.0
			Enviromental parameter	Operating temperature：15-32.5°C, operating humidity：10-80％RH
			Paper box	Standard with 250, an increase of 550 into the carton.
			Supply voltage	AC 220-240V(±10％)，50/60Hz(±2Hz),2A
7	Receipt printer	MT532	Print method	Thermal printer
			Print span	80mm
			Printing speed	250mm/sec(Max)
			Resolution	203dpi
			Print length	100KM
			Autocutter	included
8	Qr code scanning	XN-202	Imaging sensor	960*640 COMS
			Can decode system	One-dimensional/two-dimensional
			The identification accuracy	Code 39 code 6.6mil
			Scanning speed	1300 time/second
			Recognition Angle range	Level 72° vertical 82° rotating 360°
10	Camera	C270i	The sensor	CMOS camera
			Camera resolution	3 million
			Interface type	usb2.0，Don't need to drive
			Focused mode	Auto Focus
			Other Parameter	Microphone built-in microphone, features snapshot button anti-theft function
11	4G Wireless broadband routing	B315s-936	Type of network	4G Unicom（TD-LTE/LTE FDD）/Telecom 4G（TD-LTE/LTE FDD） 3G network type： Unicom 3G（WCDMA
			Frequency range	4G network： LTE FDD B1 2100MHz/B3 1800MHz LTE TDD B40 2300MHz/B41 2600MHz 3G网络： DC-HSPA+/HSPA+/HSPA/UMTS：B1 2100MHz/B8 900MHz WLAN：2.4GHz
			Downloading speed	150Mbps
			Size	18613946mm
12	WIFI antenna		300Mbps Wireless transmission rate
13	Loudspeaker	OP‐100	Double channel stereo amplifier，8Ω5w。
14	Equipment cabinet	HZ	Size	According to actual function and effect diagram, accord with human body engineering
			Color	In line with aesthetic requirements, customers can choose that color
			1. The outer metal cabinet is made of a durable cold-rolled steel frame
			2. This design is beautiful and easy to install and operate.Moisture-proof, rust-proof, dustproof, no static electricity;
			3.The logo is based on customer requirements.
15	Accessory	Anti-theft lock, tray, easy to maintain, 2 fans, line LAN port;Power sockets, relays, USB ports, cables, screws, etc.
15	Accessory
16	Packaging	Bubble wrap with carton safe packing method.
16	Packaging	Bubble wrap with carton safe packing method.

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 5

Product details

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 6

Stable performance

Self service landing visa kiosk with A4 printer Receipt printer QR code scanning Camera and 4G Wireless routing in Airport 7

High end appearance

Company Features
1. Hongzhou Smart Tech Co.,Ltd is a brand-new high-grade digital information kiosk manufacturer.
2. Hongzhou Smart Tech Co.,Ltd has been working with many experienced staff who are skilled at manufacturing qualified information kiosk .
3. We are a company that is committed to fair market competition. We have joined the Fair Trade Association to demonstrate our determination to right-minded business activities. We hope that our productive activities will not have impacts on the environment. We constantly improve our production efficiency to reduce waste and pollution.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
