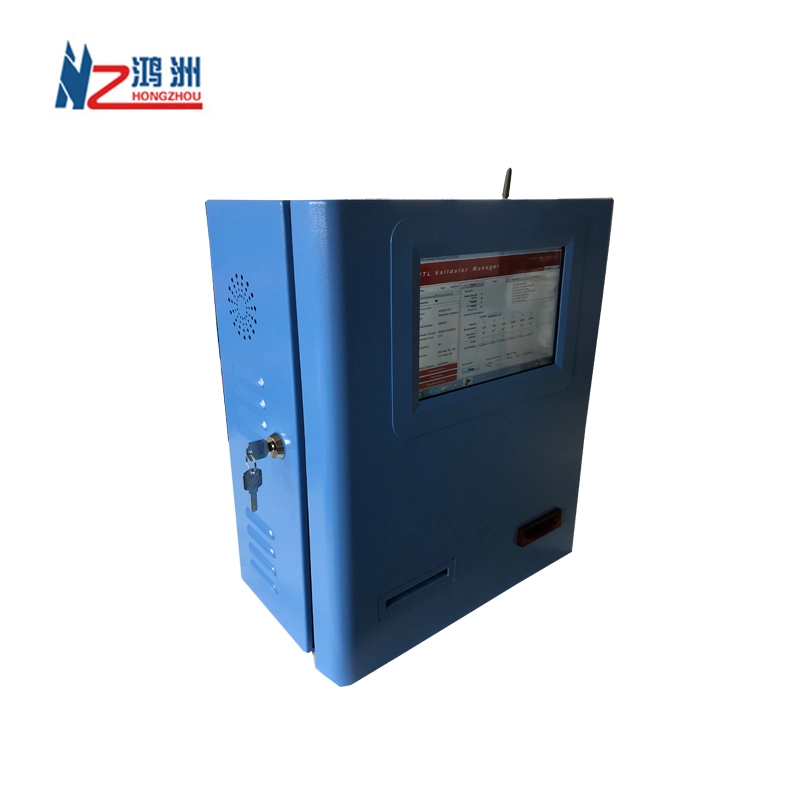

Self Service Wall Mounted Hotel Check in Kiosk with Payment System
Self Service Wall Mounted Hotel Check in Kiosk with Payment System
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Customized
Product Name:
Self Service Wall Mounted Hotel Check in Kiosk with Payment System
Function:
Payment Terminal
Application:
Indoor
Touch screen type:
Capacitive Touch
Optional parts:
Contactless Card Reader
Main components:
Touchscreen
Material Feature:
Anti-dust, Anti-vandal
Touch Screen:
IR/SAW/Capacitive
Power supply:
110-240V 50HZ/60HZ
Warranty:
1 year
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Video Description

Self Service Wall Mounted Hotel Check in Kiosk with Payment System

Company Information

Hongzhou, ISO9001:2008 certified Hi-tech corporation, is a leading global self-service Kiosk/ATM manufacturer and solutions provider, specializing in researching, designing, manufacturing, and providing a complete solution for self service Kiosks.


We have a strong self-service terminal product’s development, software support and system integration capability, and offer customized solution according to client’s individual need.
Equipped with a series of leading precision sheet metal and CNC machine tool equipment, and modern self-service terminal electronic assembly lines, our product are approved by CE, FDA,ROHS, FCC,CCC,IP65 etc.


Our self-service terminal product and solution are designed and manufactured base on lean thinking, with vertical integrated batch production capacity, low-cost structure, and outstanding customer collaboration, we are good at quick response to customer's tailor-made requirement, providing customer with one-stop self-service terminal solution.


Hongzhou high quality product and self-service terminal solution are popular both in the domestic and global markets in over 90 countries, cover financial self-service kiosk, payment kiosk, retail ordering kiosk, ticketing/card issuing kiosk, multi-media terminals, ATM/ADM/CDM, they are widely used in bank, and securities, traffic, hotel, retail, communications, medicine, cinema.

Product Description

1. Parts: Contactless Card reader / Barcode Scanner….

2. Touch Screen: IR/SAW/Capacitive

3. Display: LCD, TFT, AUO or others

4. Material of Cabinet:1.5mm to 2.5mm Cold-roll sheet or others

5. Material Feature:Anti-dust, Anti-vandal

6. Kiosk Color: upon the customer’s request

7. Logo: By customer’s needs

8. Power supply: 110-120V, 220V-240V or optional

9. optional size of screen: 17inch, 19inch or upon customers’ request

10. Warranty: 1 year

11. Type: Payment kiosk, self-service kiosk, touchscreen kiosk

12. Application: Indoor

13. Supported OS: windows 7 , windows 8 or Linux



Standard hardware components List is as following:

Components Details
PC system Industrial Board Seavo/ Gigabyte/Advantech AIMB 562
CPU Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7
RAM 2GB /4 GB / 8GB
HDD 500G
Interface 6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card
PC Power Supply HUNTKEY/Great Wall
LCD monitor Screen Size 17 inch/19inch ( optional from 8inch to 65inch)
Brightness 250cd/m2
angle horizontal 100°above;Vertical 80°above
Contrast 1000:1
Backlight tube life more than 40,000hours
Max. resolution 1280×1024
Touch screen Screen Size 17/19 inch Diagonal ( optional from 8inch to 65inch)
Resolution 4096x4096
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times
Epson receipt thermal printer Autocutter included
Technology Thermal printing
Paper width 80mm
Printing speed 150mm/s
Data buffer 4KB
Interface RS232 ,USB
UPS Input voltage 145-290va
Output voltage 200-255va
Max time for supplying a single PC 3~20minutes (for single PC)
Digital Power Supply AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
AC input voltage range 100~240VAC
Frequency 50Hz to 60Hz
Accessories Wire-lan port, USB ports, speakers, fans, cables, screws, etc.
Operation System Windows 7 or Windows XP operation system without license
KIOSK Cabinet Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request.
Packing Security Packing method with bubble foam and wooden case
Detailed Images

Production Flow

Packaging & Shipping

FAQ

1) Q: Are you a factory or trading company?
A:We are a OEM/ODM factory.
2) Q:What payment methods your company accept?
A:We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union,Paypal and MoneyGram.
3) Q:How long is the warranty time for your products?
A:Our officially promised warranty time is one whole year after delivery at best.
4) Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what'smore,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $323,000, and it is still going up.
5) Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
6) Q:Do you give any discount ?
A:I'll surely try my best to help you get those by the best price and good service at the same time.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A:We hope you know that our company USER perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
