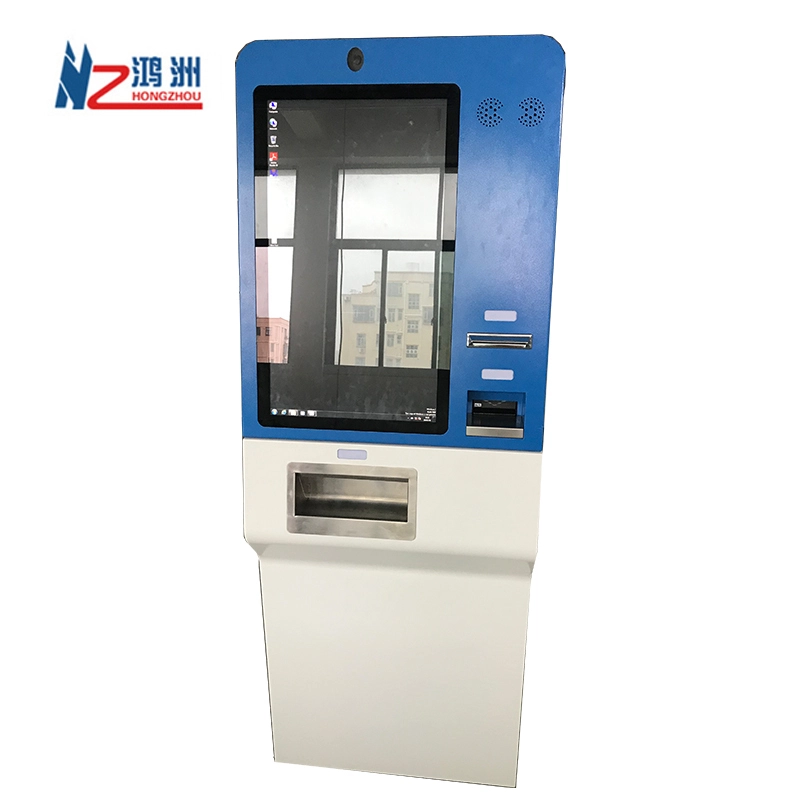

Shenzhen Hongzhou Currency Exchanging Kiosk ATM Machine Bill Dispenser
No. | Components | Main Specifications | |
1 | Industrial PC System | Mother Board | Intel H81; Integrated Network card and Graphic card |
CPU | Intel G3250 | ||
RAM | 4GB | ||
HDD | 1000G | ||
Interface | 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI; | ||
PC Power Supply | HUNTKEY | ||
2 | Operation System | Windows 7 (without license) | |
3 | Display+Touch screen | Screen Size | 27 inch |
Pixel Number | 1920*1080 | ||
Brightness | 300cd/m2 | ||
Contrast | 1000:1 | ||
Display Colors | 16.7M | ||
Viewing Angle | 89°/89°/85°/85° | ||
Touch point number | 10 point | ||
Input mode | Finger or capacitor pen | ||
Surface hardness | ≥6H | ||
4 | Cash Accepter | Cashbox box capacity | 1200 notes |
Note Dimensions | Width:60-83 mm Length:120-177 mm | ||
Note Acceptance Speed | 2.3 seconds | ||
Acceptance Rate | 98% or higher | ||
5 | Cash dispenser | Note | use the change function |
Speed | 5 sheets/sec | ||
Number of box | 4 box | ||
Banknote box capacity | 3000 sheets for each box | ||
Maximum number of transactions | 50 sheets | ||
6 | Coin dispenser | Coin dimensions | diameter 16-31mm (0.63”-1.22”) |
Thickness 1.00-3.50mm (0.039” -0.138”) | |||
Coin Capacity | 1,120 x 1, 950 x £1, 1,600 x US 25¢ | ||
Coin Payout Rate | Three coins per second | ||
Voltage | 24V | ||
7 | Printer | Printer Method | Thermal printing |
Print width | 80mm | ||
Speed | 250mm/sec(Max) | ||
Resolution | 203dpi | ||
Print length | 100KM | ||
Autocutter | included | ||
8 | Camera | Sensor type | 1/2.7"CMOS |
Array size | 1928*1088 | ||
Pixel | 3.0um*3.0um | ||
Maximum image transfer rate | 1080P 30FPS | ||
AGC/AEC/Whiter balance | Auto | ||
9 | Camera for cash acceptor and dispenser | CCD | 1/3" SONY CCD |
700TV | |||
10 | Power Supply | AC input voltage range | 100-240VAC |
DC output voltage | 24V | ||
Output over current protection | 110~130% | ||
Operating temp. & humidity | -10~+50,20%~90%RH (noncondensing) | ||
AC input voltage range | 100-240VAC | ||
DC output voltage | 12V | ||
11 | LED lamp control module | Provide 8-way 5V dual-color lamp output 4-way 12V output | |
12 | Speaker | Dual channel amplified speakers for Stereo , 8Ω 5W. | |
13 | KIOSK Cabinet | Dimention | decided when finish production |
Color | Optional by customer | ||
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll steel frame; | |||
2. The design is elegant and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free; | |||
3.Color and LOGO are upon customers' requests. |
