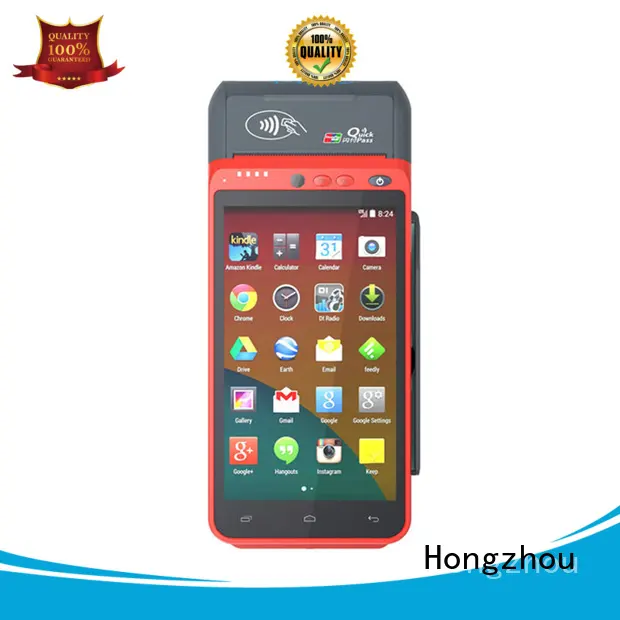

Empowered by Quad-core CPU and massive memory, HZ-CS10 enables exceptionally fast processing of applications, and supports additional features for local customization including fingerprint scanner and fiscal module. It is your smart choice for one-stop payment and service.
Ø Safedroid OS, Based on Android 5.1 or 7.0 O/S;
Ø 5.5 inch TFT IPS LCD, resolution 1280*720
Ø Built-in high speed thermal printer , with over 50Km print life
Ø Full bands for global coverage: 4G/3G/2G,WLAN,VPN
Ø Authentec,508dpi fingerprint module for biometric identification
Ø Dual camera for quickly QR code scan & Honeywell 2D scanner as option
Ø One-stop payment of MSR/IC/NFC, with PCI PTS 4.X, EMV L1&L2 certified
DEMO SHOW: https://youtu.be/EnVZUunmeMk
| No. | Basic Module | Main Specifications | |
| 1 | Basic Characteristics | OS | Safe android OS (based on Android 5.1 or 7.0 O/S) |
| 2 | CPU | Quad-Core 1.35GHZ | |
| 3 | ROM | 8GB ROM EMMC | |
| 4 | RAM | 1G RAM LPDDR3 | |
| 5 | Display | 5.5 inch TFT IPS LCD,resolution 1280*720 | |
| 6 | Panel | Ultra sensitive capacitive touch screen, can work with gloves and wet fingers | |
| 7 | Dimensions | 206mmX84mmX32mm (max 56mm) | |
| 8 | Weight | 530g(Battery included) | |
| 9 | Keys | 3 Physical keys:1 ON/OFF KEY,2 Shortcut keys | |
| 10 | 3 Virtual keys:Menu,Home,Back | ||
| 11 | Input | Chinese/English ,and supports handwriting and soft keyboard | |
| 12 | Radio Communication | WIFI | IEEE 802.11 a/b/g/n ,support dual Band 2.4GHZ and 5GHZ |
| 13 | Bluetooth | BT 4.0 LE +EDR | |
| 14 | 4G | TD-LTE:Band38, Band39, Band40, Band41 | |
| 15 | FDD-LTE:Band1,Band3,Band7,Band8,Band20 | ||
| 16 | 3G | UMTS(WCDMA)/HSPA+:Band1,Band8,Band2,Band5 | |
| 17 | CDMA EV-DO Rev.A:800MHZ | ||
| 18 | TD-SCDMA:Band34,Band39 | ||
| 19 | 2G | GSM/GPRS/EDGE:850/900/1800/1900MHZ | |
| 20 | Payment | Magcard reader | Supports ISO7811/7812/7813, and supports triple |
| 21 | track (tracks 1/2/3), bi-directional | ||
| 22 | Smart Card reader | Supports ISO7816 standard | |
| 23 | Contactless Card reader | Supports 14443A / 14443B | |
| 24 | Expansion and peripherals | Printer | High-Speed Thermal Printer ; |
| 25 | 58mm printing paper ; | ||
| 26 | 40mm paper roll | ||
| 27 | Camera | 5MP camera with LED flash and auto-focus function | |
| 28 | Satellite Positioning | GPS, Supports A-GPS | |
| 29 | Audio | Speaker ,Microphone,Earphone | |
| 30 | Interfaces | Micro SD Card Slot | 1 PCS |
| 31 | SIM Card Slot | 2 PCS MICRO SIM | |
| 32 | PSAM Card Slot | 2 PCS Conforms to ISO7816 standard | |
| 33 | USB Port | 1PCS TYPE C USB | |
| 34 | Power | Battery | Li-ion battery ,7.4V /2600mAH |
| 35 | Charging Port | Type C USB Port ,5V DC,2A | |
| 36 | Environment | Operating Temperature | -10°C to 50°C |
| 37 | Storage Temperature | -20°C to 70°C | |
| 38 | Humidity | 5% to 95% Relative Humidity, Non-Condensing | |
| 39 | Certification | Electromagnetic | CCC,CE,FCC |
| 40 | Payment | PCI PTS 4.X ,EMV L1&L2 | |
| 41 | Optional | Fingerprint | Semiconductor capacitance |
| 42 | 14.4mm x 10.4mm imaging area | ||
| 43 | 208 x 288 pixel array, | ||
| 44 | Crossmatch FBI certified | ||
| 45 | Authentec,508dpi | ||
| 46 | Front camera | 2 Megapixel Fixed Focal Camera | |
| 47 | Barcode Scanner | Honeywell 2D Image Engine, Support 1D and 2D symbologies | |
| 48 | Satellite Positioning | GLONASS, Bei-Dou satellite navigation system | |
| 49 | Fiscal Module | Russian format | |
Product features
※ Safedroid OS, Based on Android 7.0 or 5.1 OS
※ 5.5 inch TFT IPS LCD, resolution 1280*720
※ Built-in high speed thermal printer , with over 50Km print life
※ Full bands for global coverage: 4G/3G/2G,WLAN,VPN
※ Authentec,508dpi fingerprint module for biometric identification
※ Dual camera for quickly QR code scan & Honeywell 2D scanner as option
※ One-stop payment of MSR/IC/NFC, with PCI PTS 5.X, EMV L1&L2 certified
Product details
Main module：
Magcard reader,Smart Card reader,Contactless Card reader,Printer,Camera,Fingerprint,Barcode Scanner
Accessories:
Type-C USB Cable, Battery, Charger Head, Printer Paper
