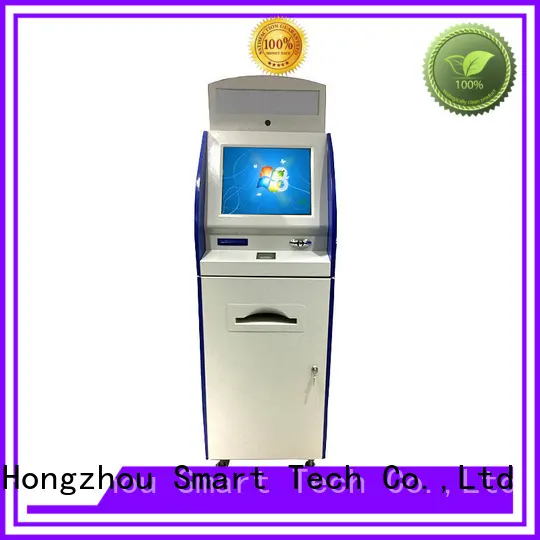

thermal information kiosk touch screen with printer in airport Hongzhou 1

thermal information kiosk touch screen with printer in airport Hongzhou 2

thermal information kiosk touch screen with printer in airport Hongzhou 3

thermal information kiosk touch screen with printer in airport Hongzhou 4

thermal information kiosk touch screen with printer in airport Hongzhou

Start port:

Shenzhen

Shipping:

Door to door via express: DHL, Fedex, UPS, TNT; By Sea

Payment:

T/T, L/C, Western Union, Paypal, MoneyGram

Packing:

PE bag+Carton+Pallet, Custom

MOQ:

1-500 units

Dimensions/Thickness/Color:

Custom

Delivery time:

3-4 weeks for prototype,3-4 weeks for mass production

Certifications:

ISO9001,CCC

Inquiry

Company Advantages
1. Hongzhou information kiosk touch screen is produced in a dust-free and bacteria-free workshop in which the temperature and humidity are strictly controlled and monitored, so as to ensure its high quality.
2. The product undergoes quality testing from our QC team to ensure faultlessness.
3. The product is designed to keep people's hand comfortable. It provides soft and smooth side grips for long hours of use.
4. This product contributes to life convenience. People will find it beneficial because it offers a solution to get to know the world.

Components
No.	Component	Brand	Specification
1	System	Android	PC board	M1
			CPU	ICortex-A9
			RAM	DDR-III 2GB
			HDD	8GB EMMC NAND chip, enlarge to 32GB
			Connector	1*HDMI Port ;1 Audio;2 RS-232 ;1 LTP;6 USB ,1 TF card,Built-in bluetooth wif，1MIC
			DC power supply	12V5V
2	OS		Android
3	Monitor	Auo	Screen size	19 inch
			Pixel Per Inch	1280x1024
			Brightness	350cd/m2
			Contrast	1000∶1
			Color	16.7M
			Angle	85°/85°/80°/80°
			Life time	Min. 40000hrs
4	Touch screen	EG	Screen size	19 inch
			Touch technology	Capacitive
			Touch point	Multi-fingered
			Hardness	6H
			Min. Reprot	100points /second
			Oscillation frequency	12MHz
5	A4 Printer	HP M104W	Printer mode	Laser printer
			Paper processing/output	150pcs paper
			The paper layout	Single page into the paper
			Speed	At most 22 pages per minute
			Operating temperature range	15 degree to 32.5 degree
			The power loss	360 watt（print），1.4 watt，0. watt（auto power-off），0.6 watt（manual power-off）
			Power	220 V input voltage：220〜240V AC（+/- 10％），50 Hz（+/- 2 Hz），6A
6	Ticket printer	MS-D245	Printer	Thermal printer
			Width	80MM
			Speed	100mm/s（max）
			Paper width/thickness	58 ± 0.5 mm / 56~105μm
			Length	100KM
			Automatic paper cutter	Include
7	Code scanner	XN-202	CMOS	30W CMOS
			Light source	LED
			Support types	1 / 2D bar code，Beeper prompt
8	Camera	C270i	CMOS	CMOS camera
			Camera pixels	3 Million
			Interface type	usb2.0，no drive
			Focused mode	Automatic
			Other parameters	Microphone built-in microphone, feature snapshot button anti-theft function
9	WIFI	TENDA	300Mbps Wireless transmission rate
10	Loudspeaker	OP‐100	Double channel amplifier stereo，8Ω5w
11	Cabinet	HZ	Size	According to actual function and effect drawing, accord with ergonomics
			Color	The customer can choose the color according to the aesthetic requirement
			1. The outer metal cabinet is made of durable cold-rolled steel frames
			2.The design is beautiful and generous, easy to install and operate.
			3.The logo is based on the customer's requirements.
12	Accessories	Security lock, tray, easy maintenance, 2 fan, line LAN port;Power sockets, relays, USB ports, cables, screws, etc.
12	Accessories
13	Packaging	Safe packing method for bubble foam and wooden cases
13	Packaging	Safe packing method for bubble foam and wooden cases

Product features

※ Innovative & smart design, elegant looking, anti-corrosion power coating

※ Ergonomically and compact structure, user friendly, easy for maintenance

※ Anti-vandalism, dust-proof, high safety performance

※ Rugged steel frame and overtime running, high precision, high stability & reliability

※ Cost-effective, customer-oriented design, the applicable environmental

※ LED advertising sign

thermal information kiosk touch screen with printer in airport Hongzhou 5

Product details

thermal information kiosk touch screen with printer in airport Hongzhou 6

Stable performance

thermal information kiosk touch screen with printer in airport Hongzhou 7

High end appearance

Company Features
1. Hongzhou has become a high-rank information kiosk machine manufacturer since its establishment.
2. Our staff is second to none. Most of them have spent their entire careers in this field. They know to design and produce from a craftsperson’s point of view. This ability sets our company apart from most factories that can only run simple projects.
3. Hongzhou Smart Tech Co.,Ltd's philosophy: integrity, diligence, innovation. Inquiry! Every interactive information kiosk is produced by professional procedures. Inquiry! With considerate and professional customer service, Hongzhou has more confidence to be a leading digital information kiosk supplier. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
