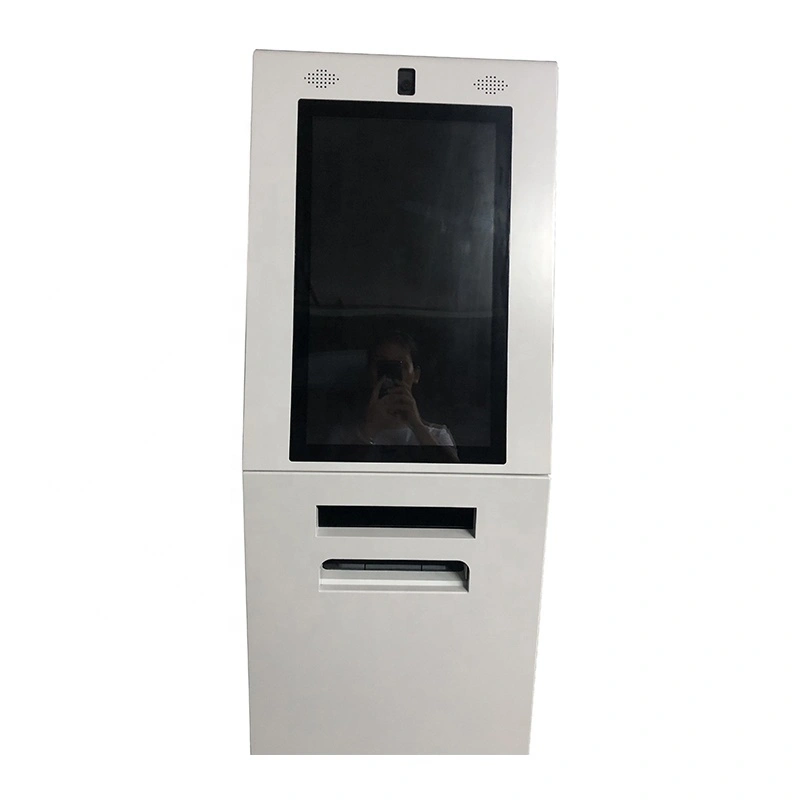

Touch Screen A4 Scanner with Camera
Touch Screen A4 Scanner with Camera
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM ODM
Product name:
Touch Screen A4 Scanner with Camera
Touch screen type:
Capacitive Screen
Application:
Indoor
Optional parts:
Camera
Color:
Customer's Request
Power supply:
110V/220V
Used:
Public place
Dispatch way:
By sea, by air
Warranty:
1 Year
Supply Ability
Supply Ability:
100 Unit/Units per Month
Video Description



Touch Screen A4 Scanner with Camera



Product Description
No. Components Main Specifications
1 Industrial PC System Mother Board Intel H81; Integrated Network card and Graphic card
CPU Intel G3250
RAM 4GB
HDD 1000G
Interface 14*USB; 12*COM; 1*HDMI; 1*VGA; 2*LAN; 1*PS/2; 1*DVI;
PC Power Supply HUNTKEY
2 Operation System Windows 7 (without license)
3 Display+Touch screen Screen Size 27 inch
Pixel Number 1920*1080
Brightness 300cd/m2
Contrast 1000:1
Display Colors 16.7M
Viewing Angle 89°/89°/85°/85°
Touch point number 10 point
Input mode Finger or capacitor pen
Surface hardness ≥6H
4 Cash Accepter Cashbox box capacity 1200 notes
Note Dimensions Width:60-83 mm   Length:120-177 mm
Note Acceptance Speed 2.3 seconds
Acceptance Rate 98% or higher
5 Cash dispenser Note use the change function
Speed 5 sheets/sec
Number of box 4 box
Banknote box capacity 3000 sheets for each box
Maximum number of transactions 50 sheets
6 Coin dispenser Coin dimensions diameter 16-31mm (0.63”-1.22”)
  Thickness 1.00-3.50mm (0.039” -0.138”)
Coin Capacity 1,120 x 1, 950 x £1, 1,600 x US 25¢
Coin Payout Rate Three coins per second
Voltage 24V
7 Printer Printer Method Thermal printing
Print width 80mm
Speed 250mm/sec(Max)
Resolution 203dpi
Print length 100KM
Autocutter included
8 Camera Sensor type  1/2.7"CMOS
Array size 1928*1088
Pixel 3.0um*3.0um
Maximum image transfer rate 1080P 30FPS
AGC/AEC/Whiter balance Auto
9 Camera for cash acceptor
and dispenser
CCD 1/3" SONY CCD
700TV
10 Power Supply AC input voltage range 100-240VAC
DC output voltage 24V
Output over current protection 110~130%
Operating temp. & humidity -10~+50,20%~90%RH (noncondensing)
AC input voltage range 100-240VAC
DC output voltage 12V
11 LED lamp control module Provide 8-way 5V dual-color lamp output 4-way 12V output
12 Speaker Dual channel amplified speakers for Stereo , 8Ω 5W.
13 KIOSK Cabinet Dimention decided when finish production
Color Optional by customer
1. The material of outer metal cabinet is durable 1.5mm thickness cold-roll  steel frame;
2. The design is  elegant  and easy to install and operate; Moistureproof,Antirust, Anti-acid, Anti-dust,Static free;
3.Color and LOGO  are upon customers' requests.
Detailed Images
KIOSK

This product is believed to help keep people's feet more healthy, making their feet stay in a more comfortable environment. The media player can be added for valuable advertising and informational content. This product contributes to the balance of heel stress after long-term use. It helps improve step balance and foot strength. The media player can be added for valuable advertising and informational content.
